Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Disconnect the front seat SIR module electrical connector.
  2. Disconnect the front seat pretensioner electrical connector.
  3. Remove the finish cover screws.
  4. Remove the finish cover from the seat adjuster.
  5. Remove the adjuster switch from the finish cover.
  6. Disconnect the adjuster switch electrical connector.

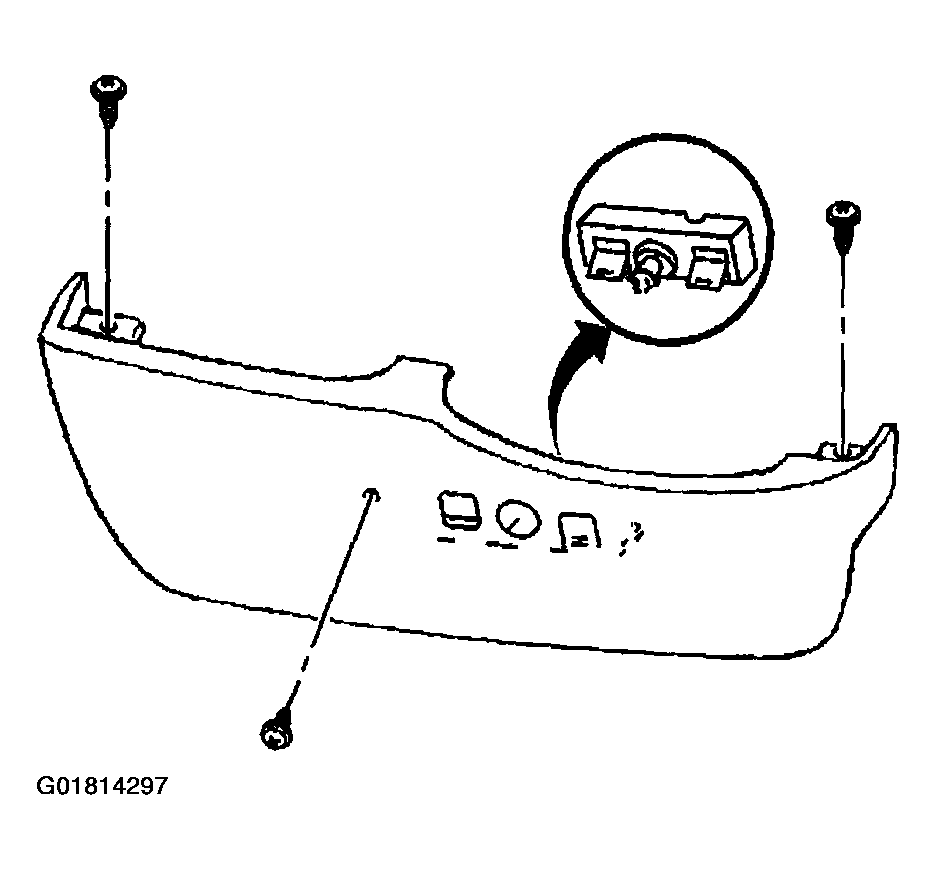

    Fig 1: Installing Front Seat Adjuster Switch & Screws
    G01814297Courtesy of GENERAL MOTORS CORP.
