Installation Procedure

Important:  Ensure that the front seat stud washers are in place when installing the seat. Smaller diameter washers should be located on the forward front seat studs.

1. Install the front seat (1) to the vehicle.
   NOTE: Refer to FASTENER NOTICE .
2. Install the front seat nuts (2).

   Tighten

   Tighten the nuts to 40 N.m (30 lb ft).

3. For the passenger seat only, install the under-seat storage tray. Refer to Storage Tray Replacement - Right Front Seat .
4. Install the power seat connector to the body wiring harness 6-way power seat only.
5. Install the seat belt electrical connector (3) to the body wiring harness.
6. Install both the heater element electrical connectors to the body wiring harness.
7. Enable the SIR system. Refer to ENABLING THE SIR SYSTEM .

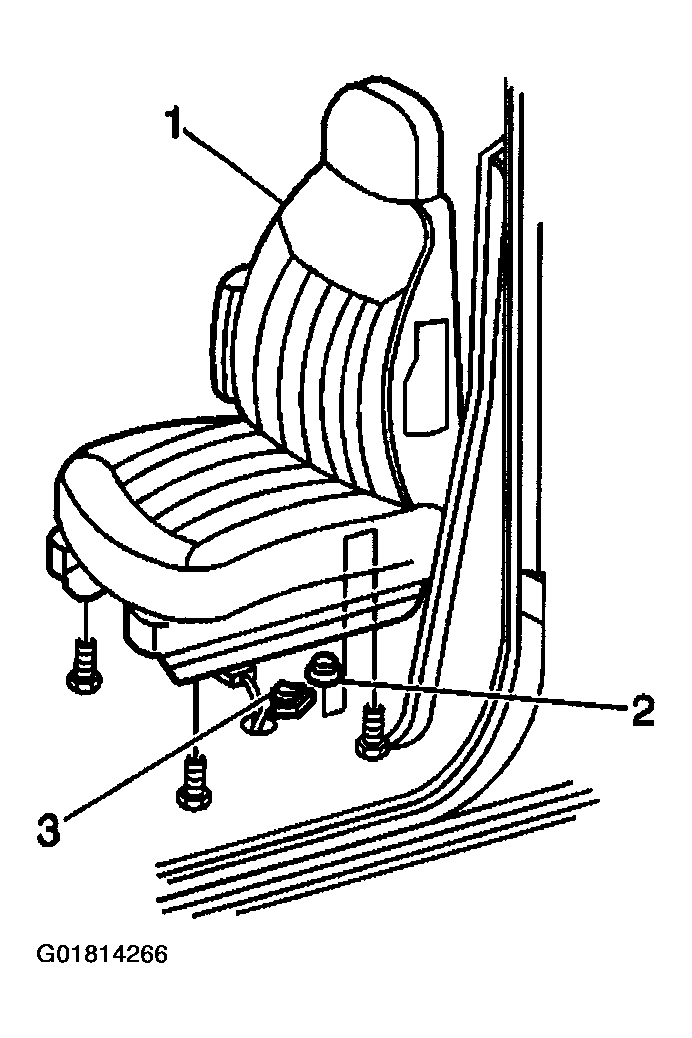

   Fig 1: Installing Seat Belt Electrical Connector, Seat & Bolts

   Courtesy of GENERAL MOTORS CORP.
