Installation Procedure

  1. Replace the entire seat back frame (1) and recliner assembly (4).
  2. Install the seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Install the front seat. Refer to Seat Replacement - Bucket .

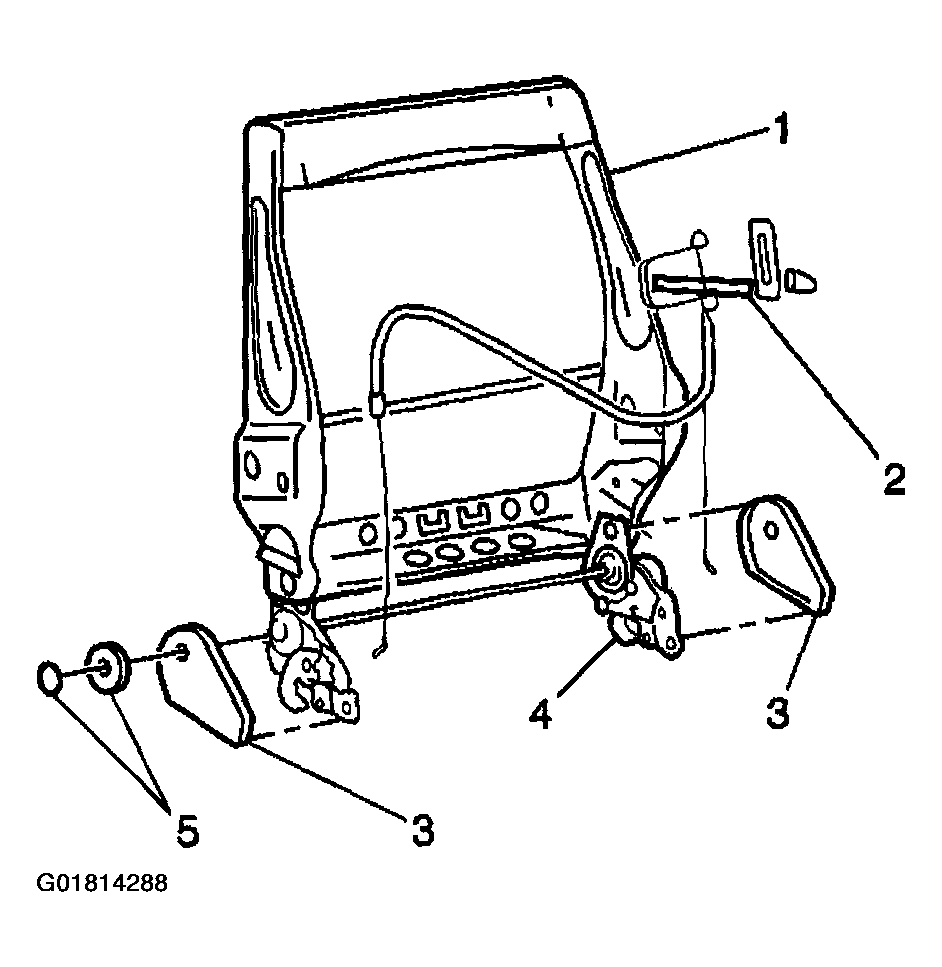

    Fig 1: Installing Seat Back Pad, Seat Back Frame & Recliner Assembly
    G01814288Courtesy of GENERAL MOTORS CORP.
