Installation Procedure

  1. Snap the front seat adjuster switch to the finish cover, if equipped.
  2. Install the finish covers to the front seat frame.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the finish cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the cup holder, if equipped. Refer to Cupholder Replacement - Front Seat .
  5. Install the map pocket net attachment, if equipped. Refer to Map Pocket Net Replacement - Front Seat .

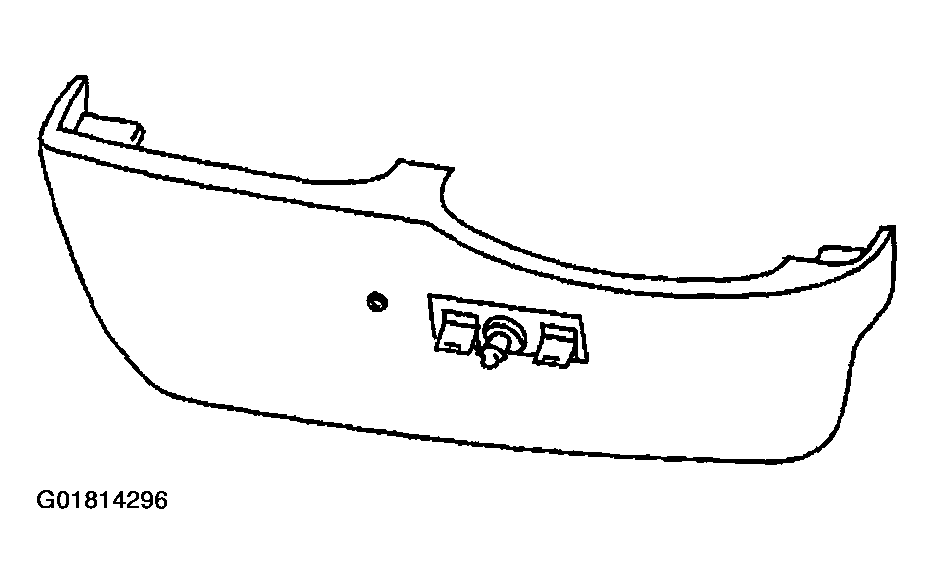

    Fig 1: Installing Finish Covers To Front Seat Frame
    G01814296Courtesy of GENERAL MOTORS CORP.
