Installation Procedure

  1. Push the head restraint guide into the seat back frame. Make sure it locks into place.
  2. Install the seat back pad. Refer to Seat Back Pad Replacement - Front .
  3. Install the seat back cover. Refer to Seat Back Cover Replacement - Front .
  4. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .

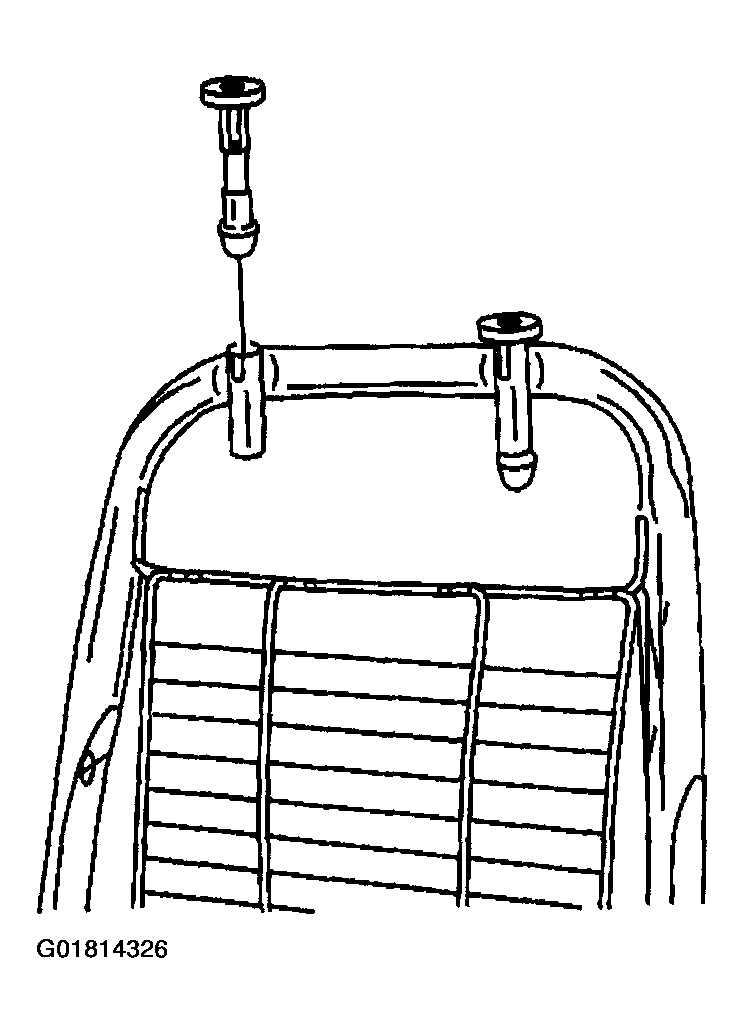

    Fig 1: Installing Head Restraint
    G01814326Courtesy of GENERAL MOTORS CORP.
