Installation Procedure

  1. Push the head restraint to a full down position in order to install the head restraint posts (1) into the guides (4).
  2. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  3. Return the head restraint to its original position.

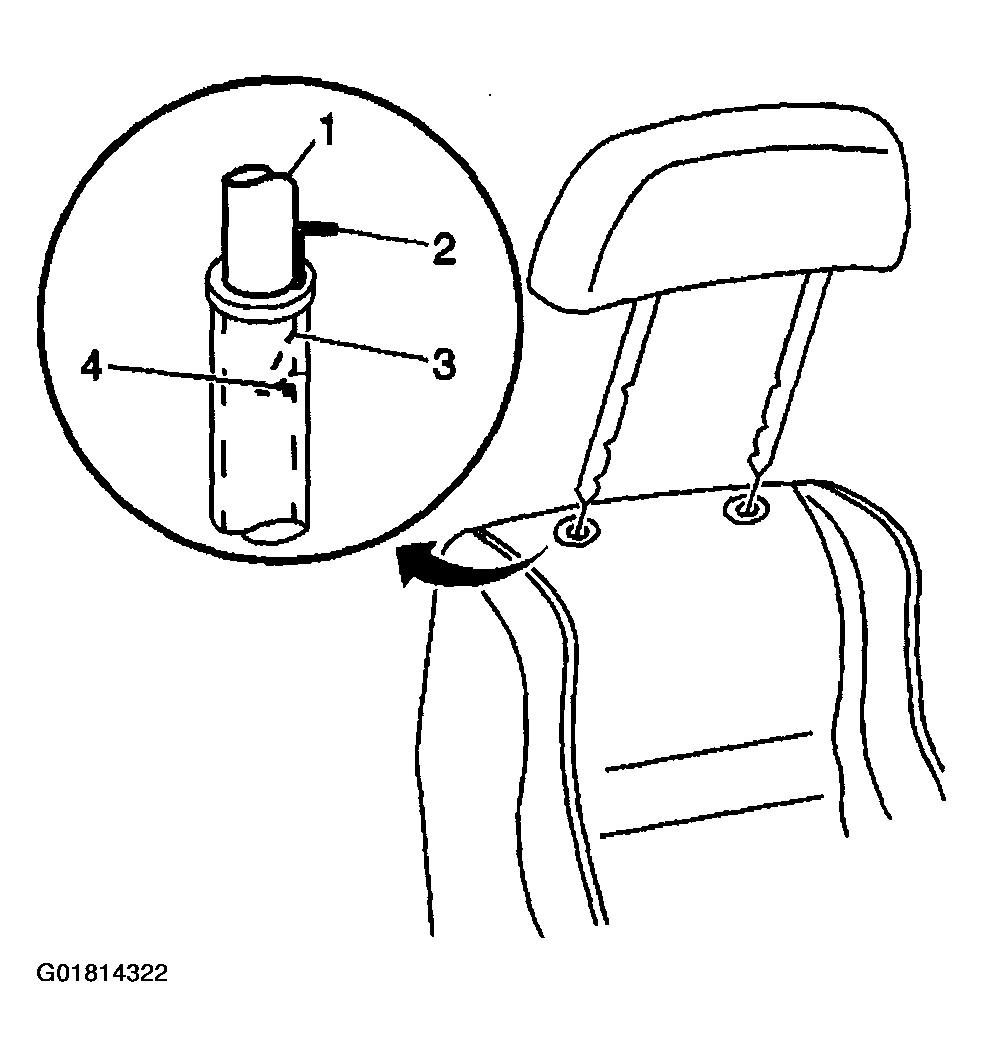

    Fig 1: Installing Locking Clip Between Detents On Posts
    G01814322Courtesy of GENERAL MOTORS CORP.
