Removal Procedure

  1. Recline the seat back to a full upright position.
  2. Remove the front seat. Refer to Seat Replacement - Bucket .
  3. Remove the J retainer from the bottom edge of the seat back trim cover.
  4. Reach underneath the trim cover.
  5. Release the C-clip from the armrest pivot shaft while pushing in on the armrest.
  6. Remove the armrest from the seat.

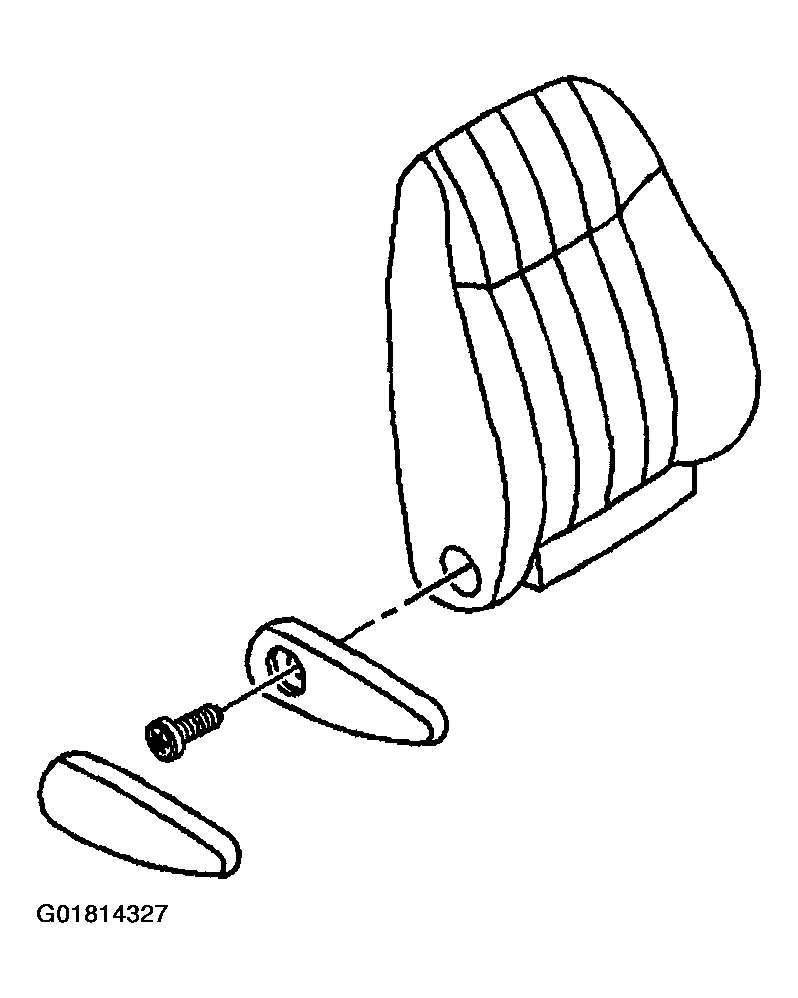

    Fig 1: Removing Armrest From Seat
    G01814327Courtesy of GENERAL MOTORS CORP.
