Removal Procedure

  1. Remove the cruise control cable from the module. Refer to Cruise Control Cable Replacement .
  2. Disconnect the electrical connector.

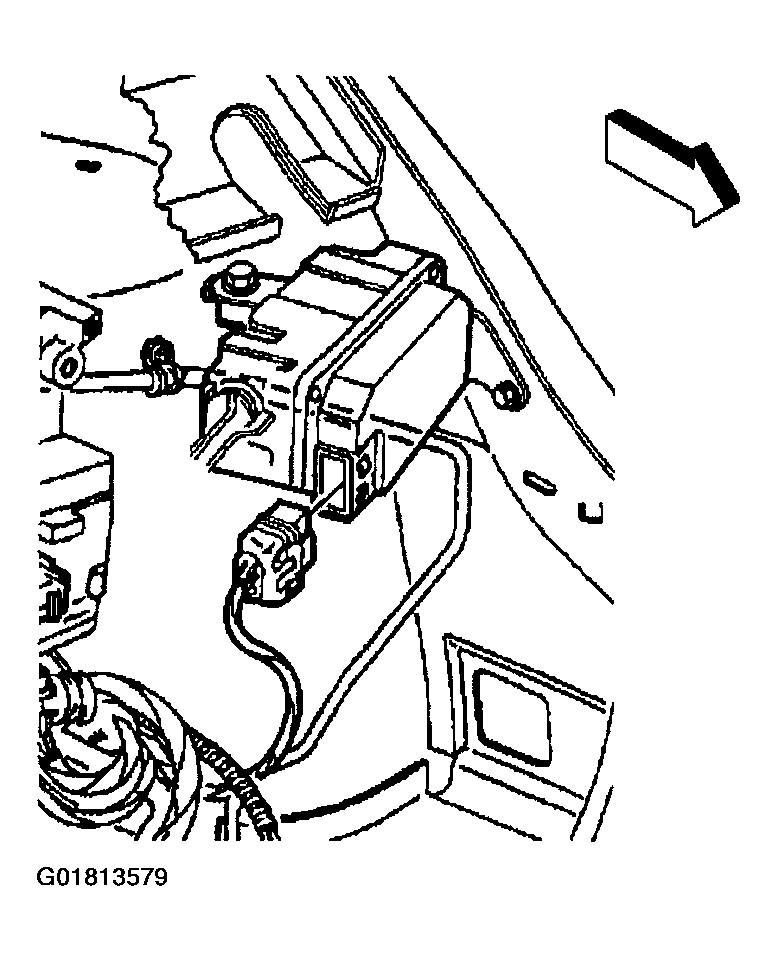

    Fig 1: Disconnecting Electrical Connector (Cruise Control Module)
    G01813579Courtesy of GENERAL MOTORS CORP.
  3. Remove the mounting bracket bolt from the cruise control module.

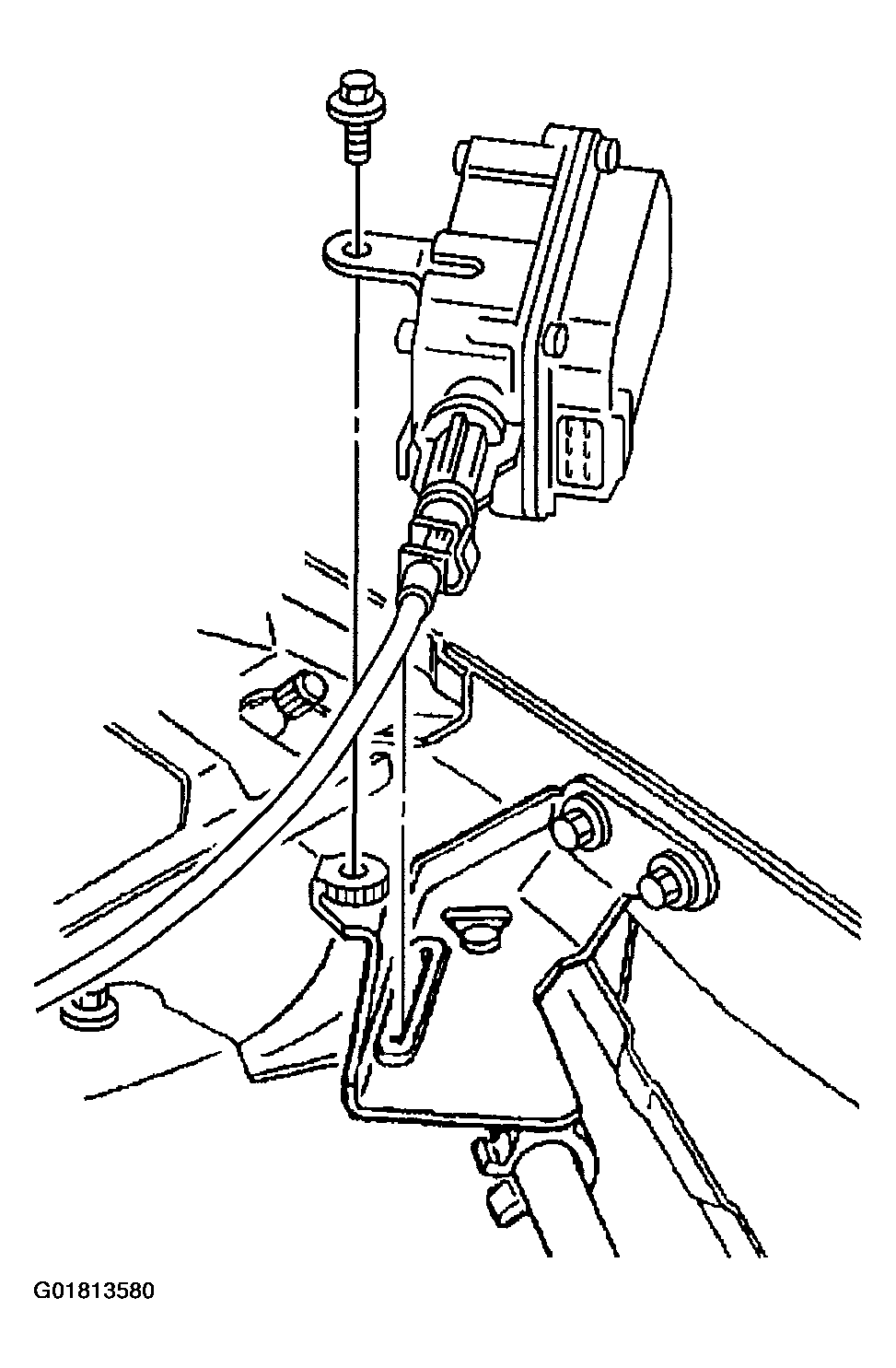

    Fig 2: Removing Cruise Control Module From Mounting Bracket
    G01813580Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control module from the mounting bracket.
