Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

The daytime running lamp (DRL) control module is located beneath the instrument panel to the right of the steering column. The module is mounted to the remote control door lock receiver bracket (2).

  1. Remove the IP steering column opening trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LEFT in Instrument Panel, Gauges and Console.
  2. Disconnect the DRL control module electrical connector (3).
  3. Remove the following components from the vehicle:
    1. 3.1. The DRL control module mounting bolt
    2. 3.2. The DRL control module (4)

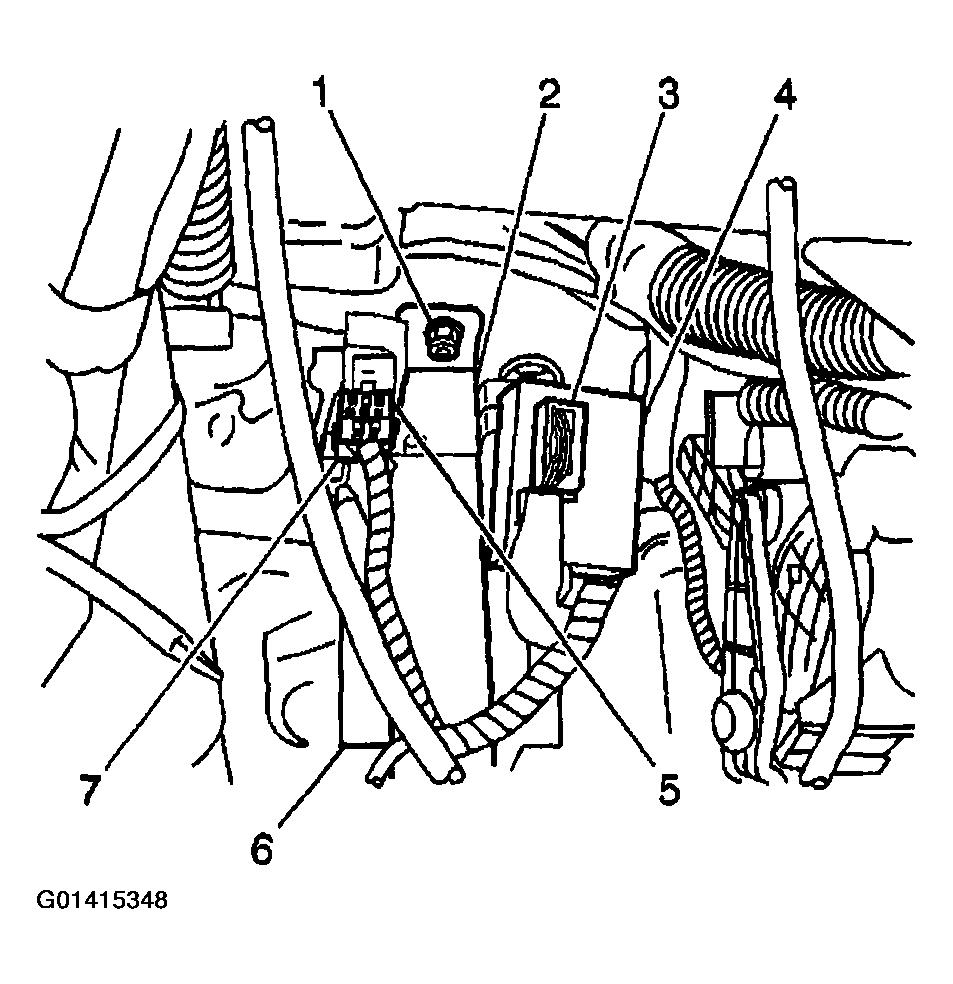

    Fig 1: Disconnecting DRL Control Module Electrical Connector
    G01415348Courtesy of GENERAL MOTORS CORP.
