Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof module to the vehicle roof with an assistant.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunroof module bolts.

    Tighten

    Tighten the sunroof module bolts to 10 N.m (89 lb in).

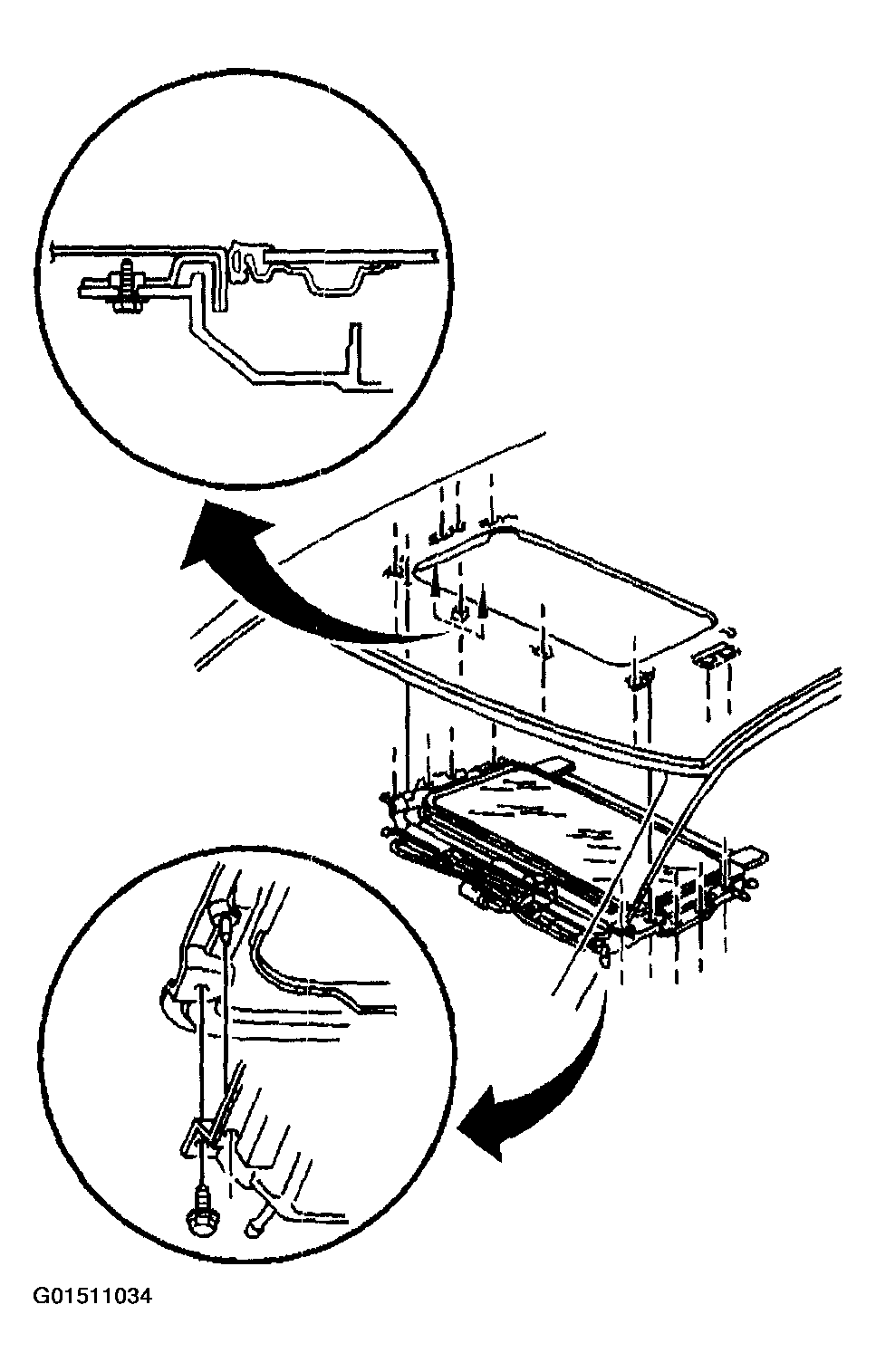

    Fig 1: Installing Sunroof Module & Bolts To Vehicle
    G01511034Courtesy of GENERAL MOTORS CORP.
  3. Connect the front and rear drain hoses to the sunroof module.

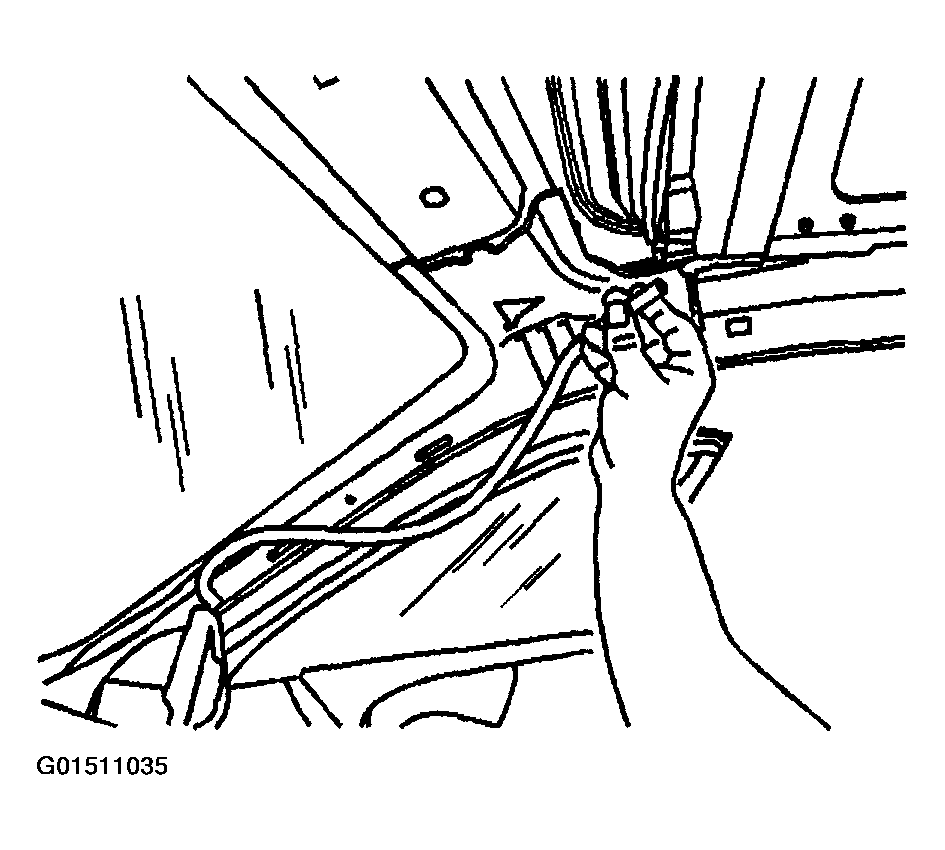

    Fig 2: Connecting Front & Rear Drain Hoses To Sunroof Module
    G01511035Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the sunroof module.
  5. Install the sunshade panel. Refer to SUNROOF SUNSHADE PANEL REPLACEMENT  .
  6. Install the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT  .
  7. Check for proper operation of the sunroof. Refer to SUNROOF DESCRIPTION AND OPERATION  .
  8. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

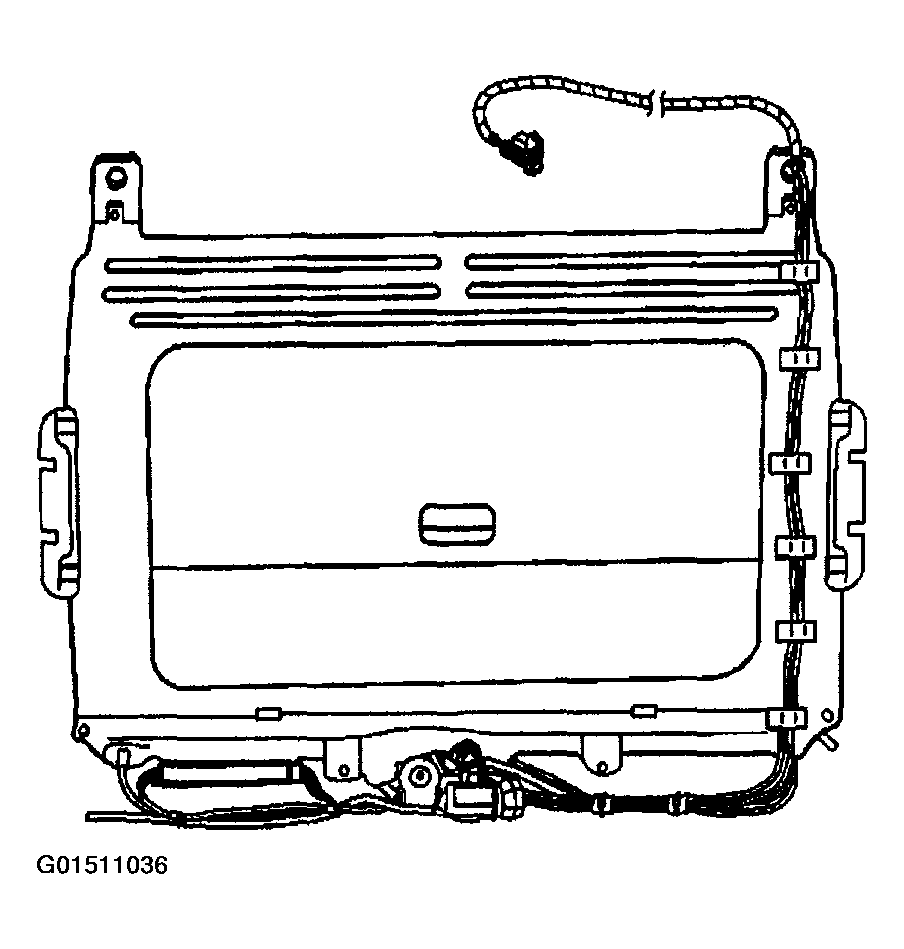

    Fig 3: Connecting Electrical Connector To Sunroof Module
    G01511036Courtesy of GENERAL MOTORS CORP.
