Section 1276 (Sunroof System)
>>
Component Locator
>>
Power Roof Systems Component Views
Power Roof Systems Component Views
WARNING:
This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

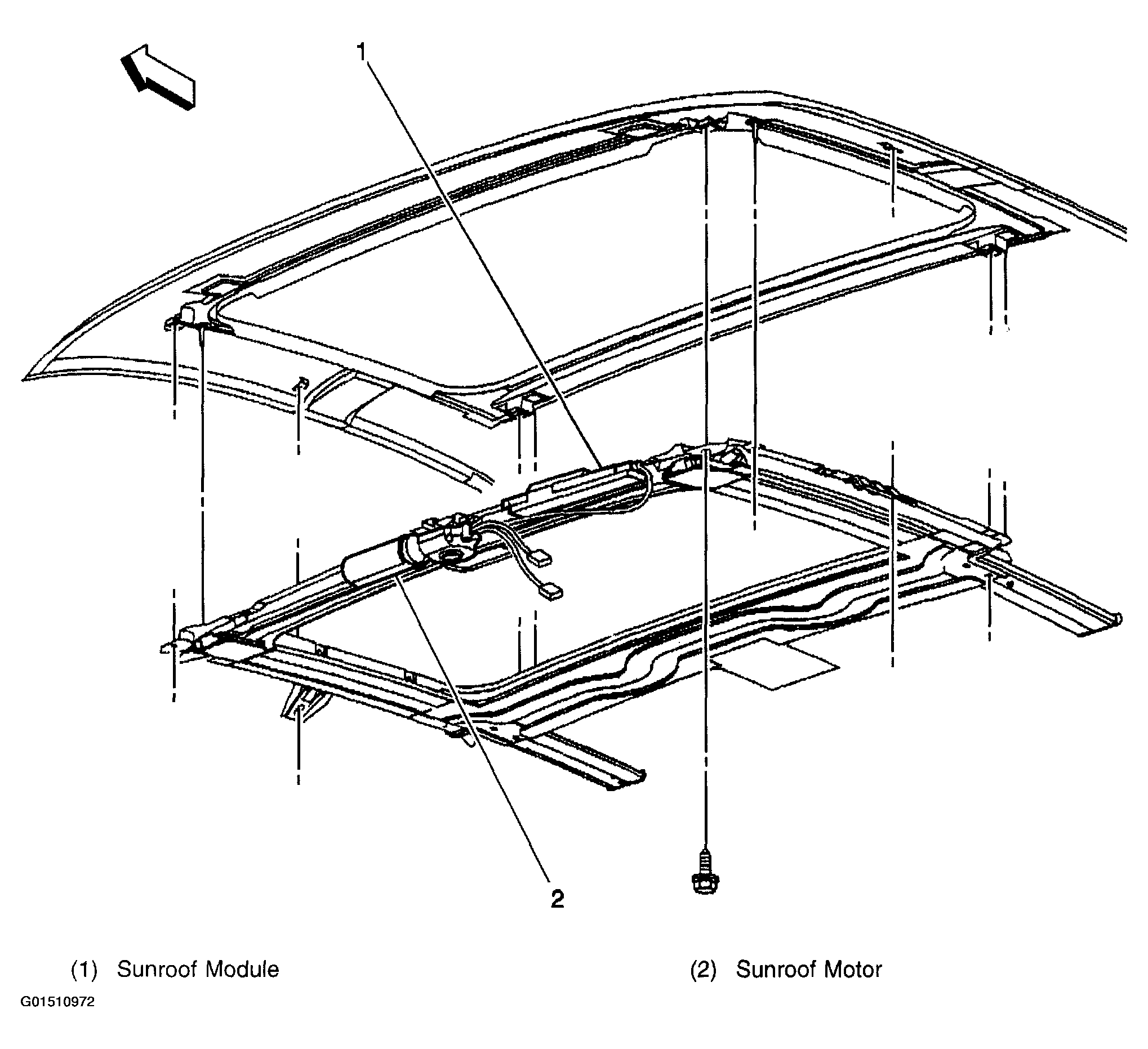

Fig 1: Identifying Sunroof Module And Sunroof Motor
Courtesy of GENERAL MOTORS CORP.

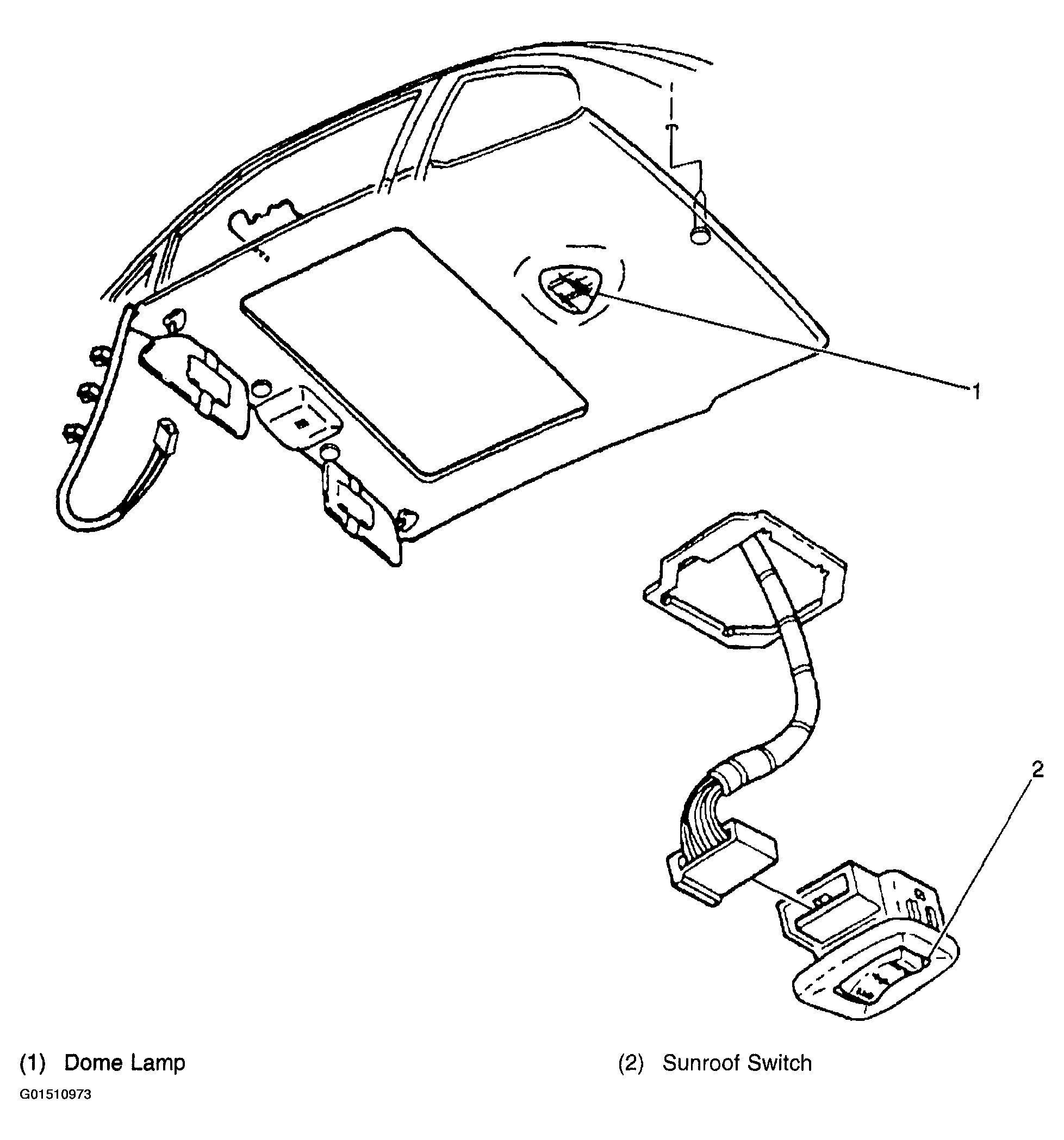

Fig 2: Identifying Dome Lamp And Sunroof Switch
Courtesy of GENERAL MOTORS CORP.
