Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the throttle body cam slightly.
  2. Disconnect the cruise control cable from the throttle body cam lever.

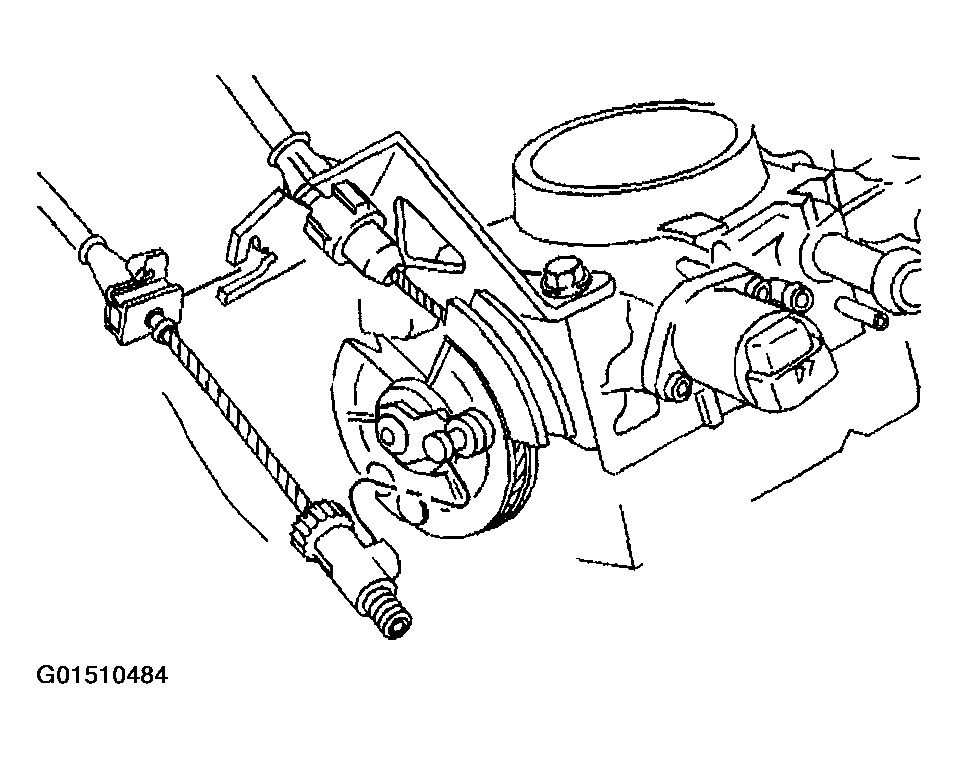

    Fig 1: Disconnecting Cruise Control Cable From Throttle Body Cam Lever
    G01510484Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control cable from the throttle body bracket.
  4. Remove the cruise control cable from the retainer clip on the engine.
  5. Disconnect the cruise control cable from the cruise control module by turning the cable 1/4 turn counterclockwise.
    Fig 2: Disconnecting Cruise Control Cable From Cruise Control Module
    G01510485Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the cruise control cable slug from the ribbon buckle.
  7. Remove the cruise control cable from the engine compartment.
    Fig 3: Disconnecting Cruise Control Cable Slug From Ribbon Buckle
    G01510486Courtesy of GENERAL MOTORS CORP.
