Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (COUPE) or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.
  2. Disconnect the rear window defog connectors from the glass.
  3. Disconnect the body wiring harness connector.
  4. Disconnect the radio antenna cable.

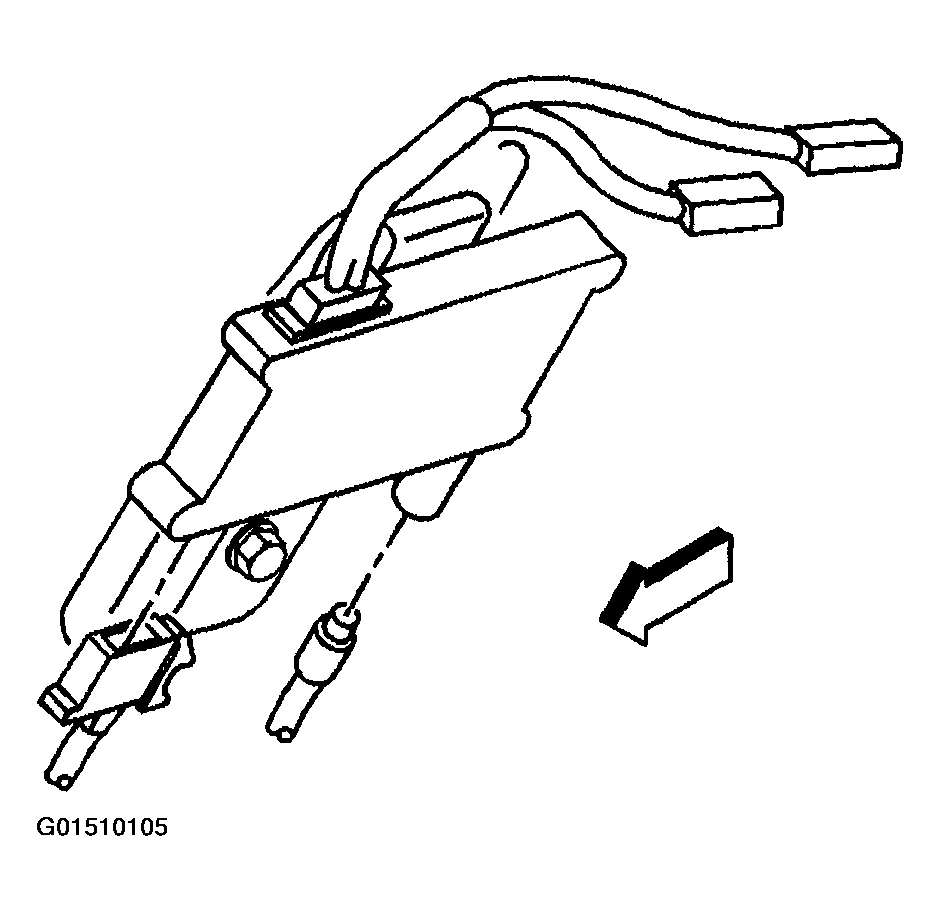

    Fig 1: Disconnecting Wiring Harness Connector & Radio Antenna Cable
    G01510105Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt.

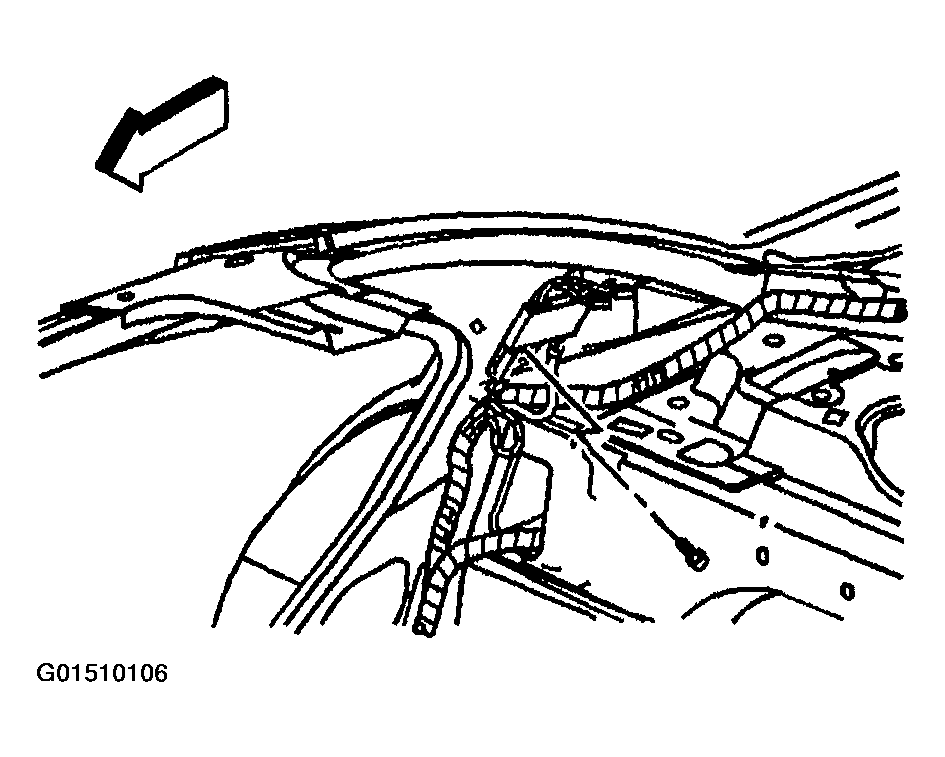

    Fig 2: Removing Bolt
    G01510106Courtesy of GENERAL MOTORS CORP.
  6. Disengage the tab on the module from the opening. Remove the radio antenna module.

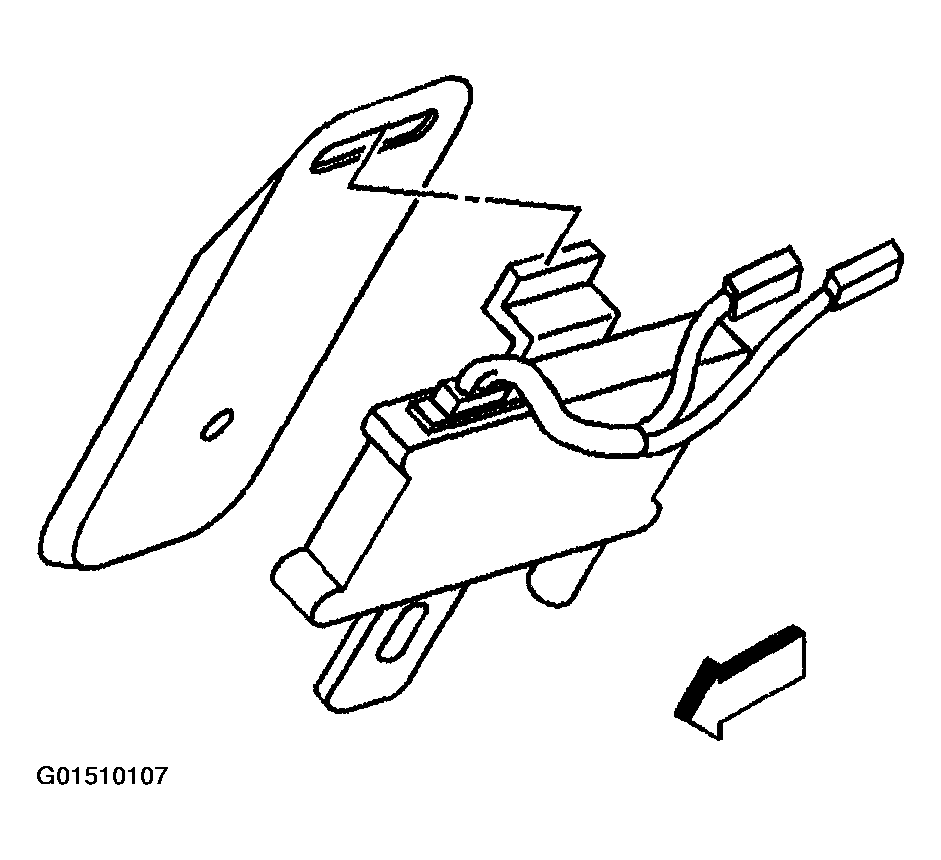

    Fig 3: Removing Radio Antenna Module
    G01510107Courtesy of GENERAL MOTORS CORP.
