Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the amplifier.

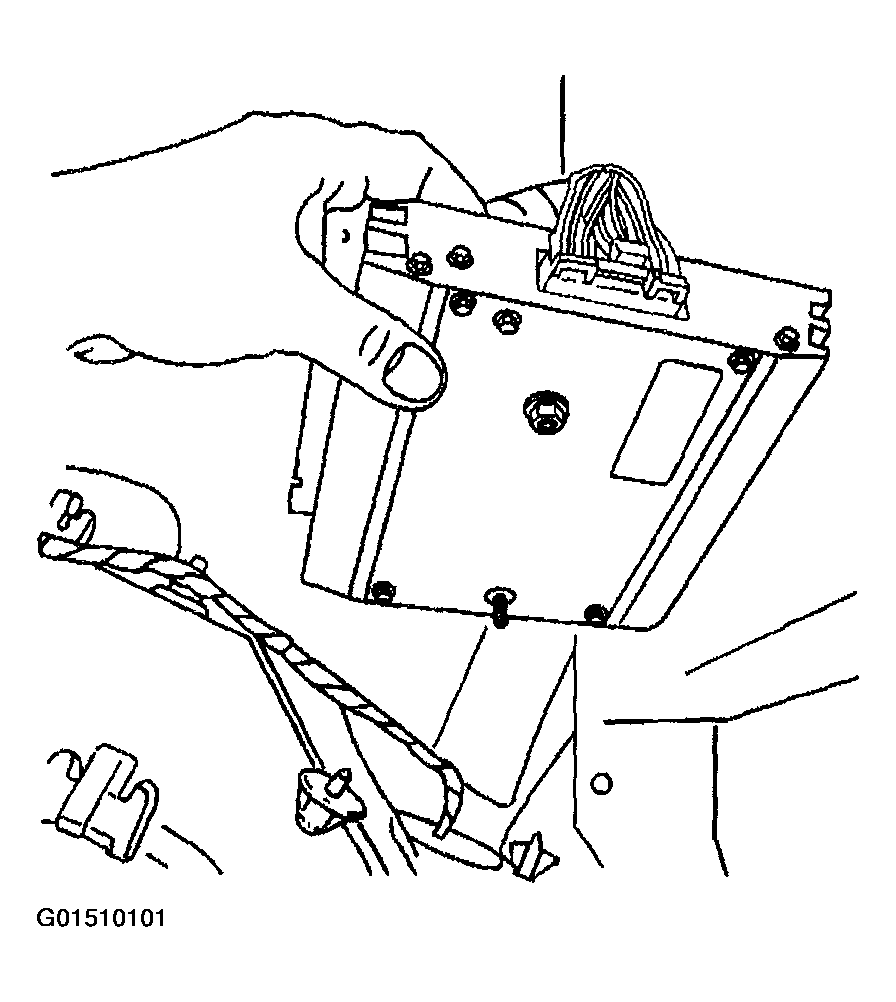

    Fig 1: Connecting Electrical Connector To Amplifier
    G01510101Courtesy of GENERAL MOTORS CORP.
  2. Install the amplifier to the left wheelhouse slots, sliding in and down.

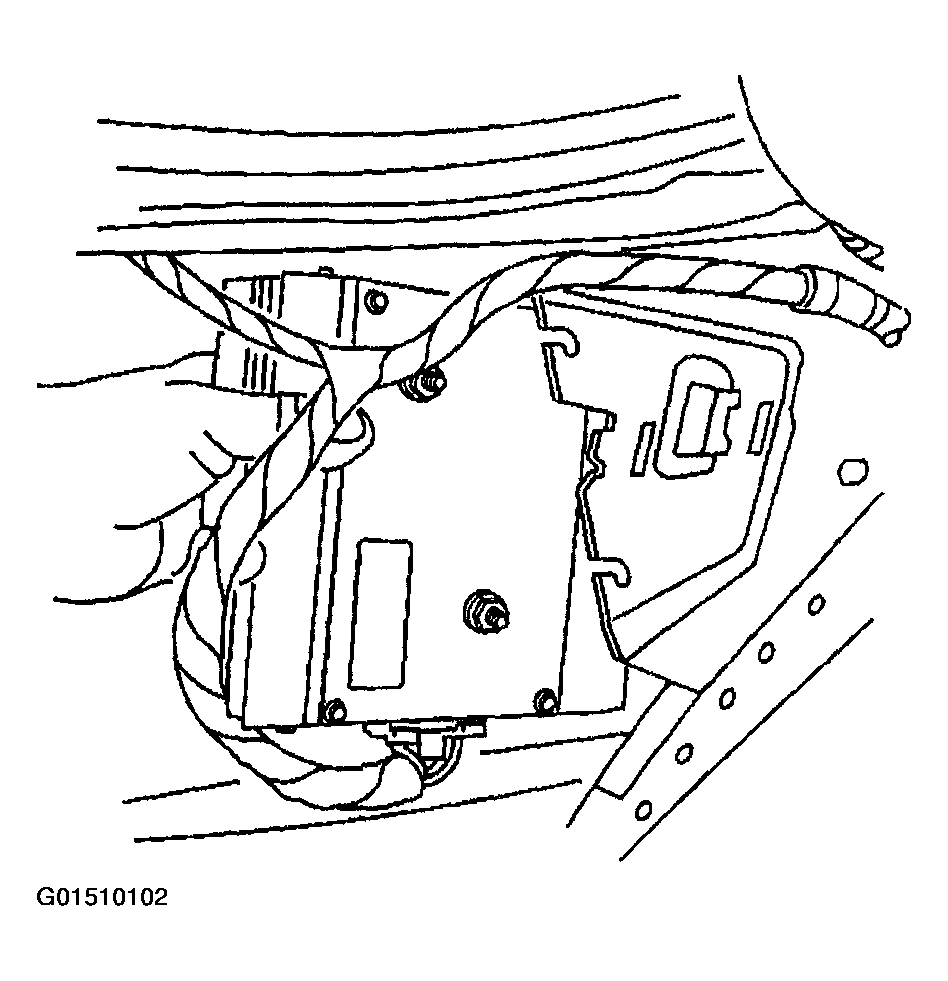

    Fig 2: Installing Amplifier To Left Wheelhouse Slots
    G01510102Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the nuts on the amplifier bracket.

    Tighten

    Tighten the nuts on the amplifier bracket to 10 N.m (89 lb in).

  4. Install the rear compartment trim on the left side. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.

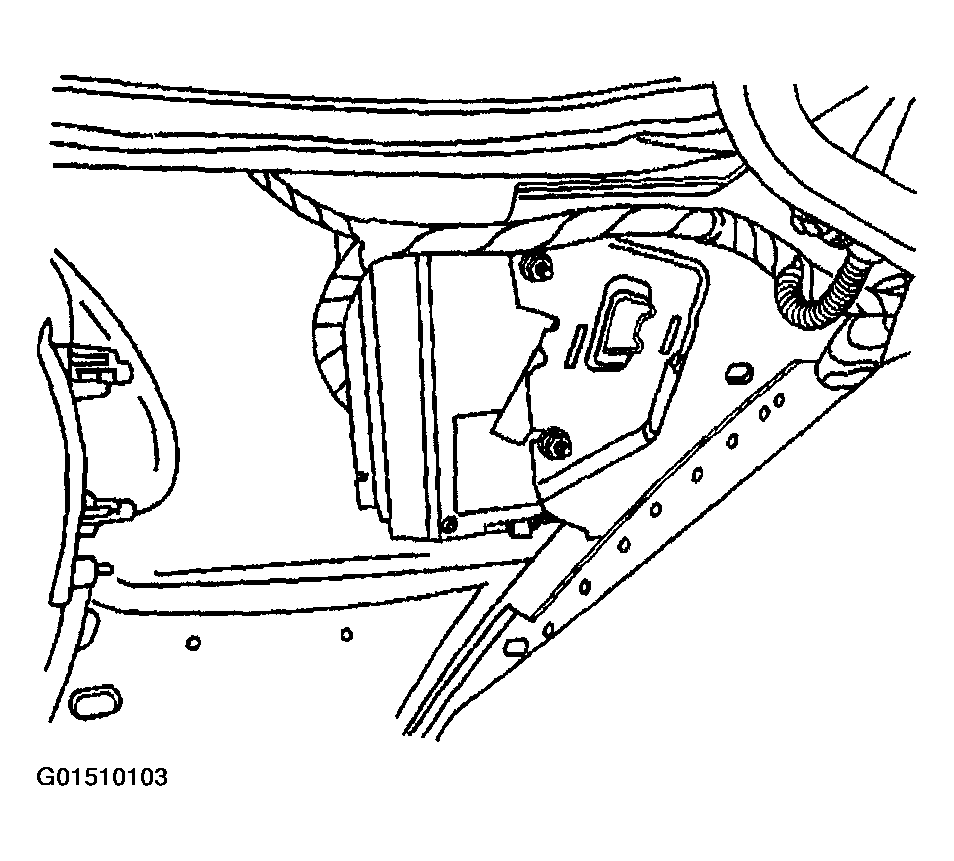

    Fig 3: Tightening Nuts On Amplifier Bracket
    G01510103Courtesy of GENERAL MOTORS CORP.
