Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container pressing in until fully seated.
  2. Position the washer solvent container level sensor to the washer solvent container pressing in until fully seated.

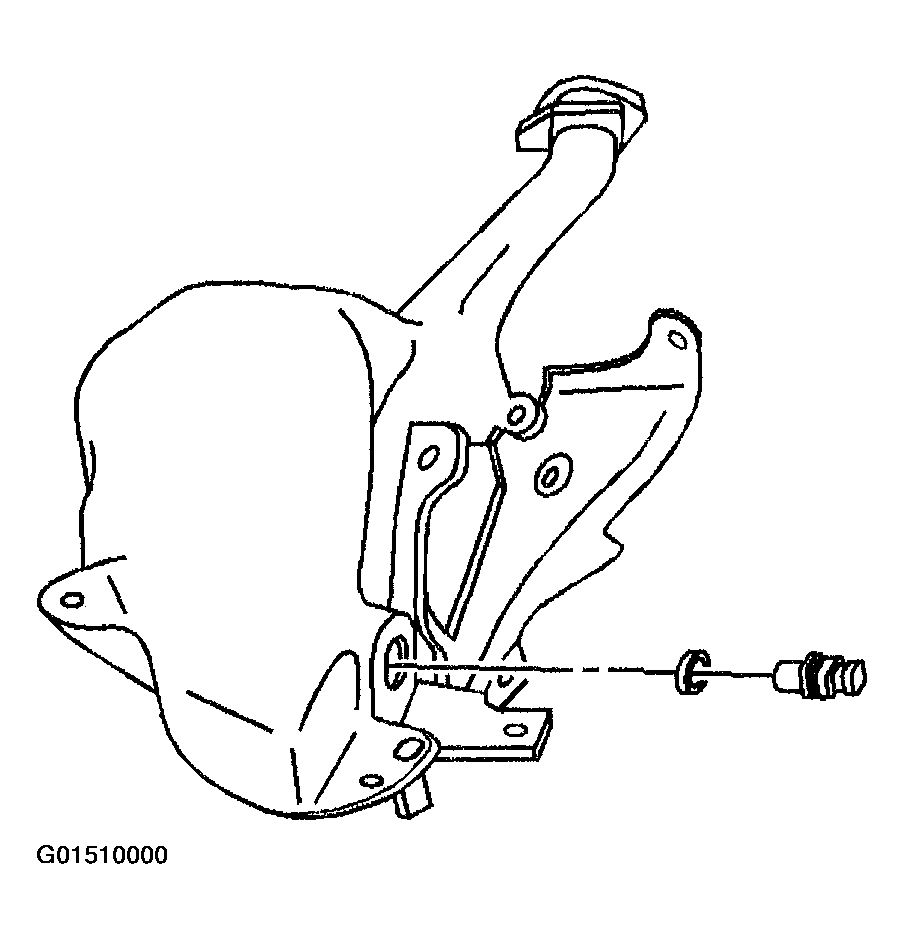

    Fig 1: Installing Seal To Washer Solvent Container
    G01510000Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent container level sensor electrical connector.
  4. Install the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  5. Fill the washer solvent container with washer solvent.

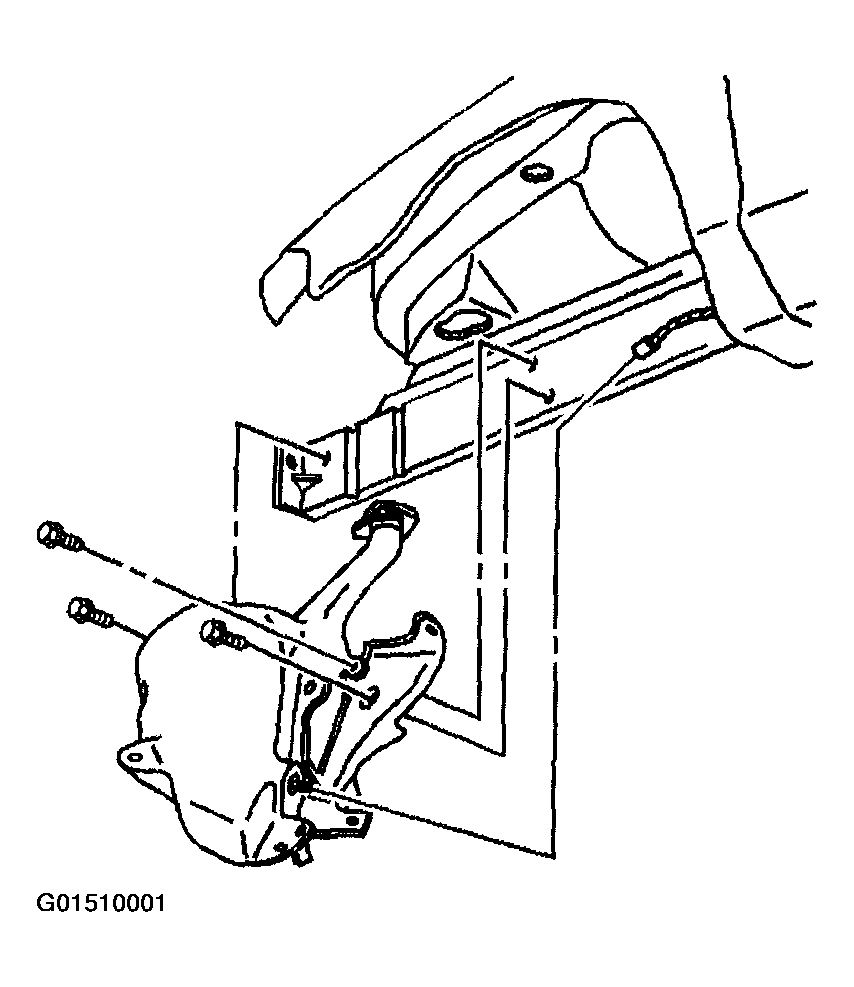

    Fig 2: Connecting Washer Solvent Container Level Sensor Electrical Connector
    G01510001Courtesy of GENERAL MOTORS CORP.
