Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 4 screws that attach the EBCM (1) to the BPMV (2).

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

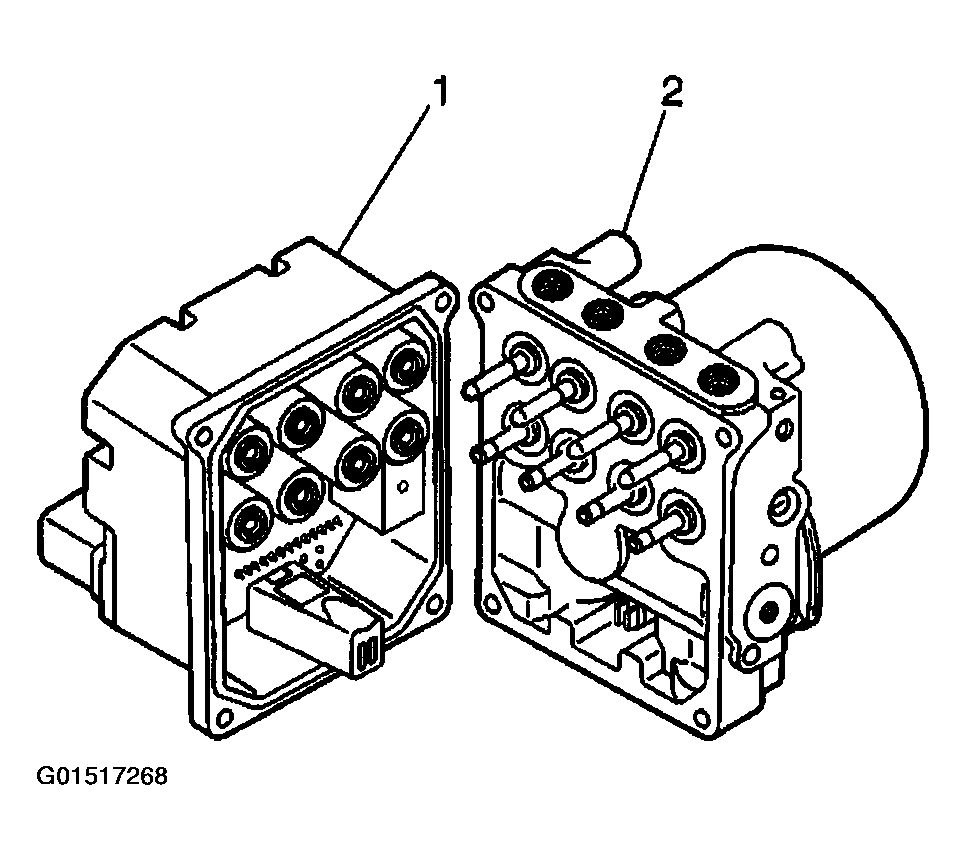

    Fig 1: Installing EBCM To BPMV
    G01517268Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2) to the EBCM (1).

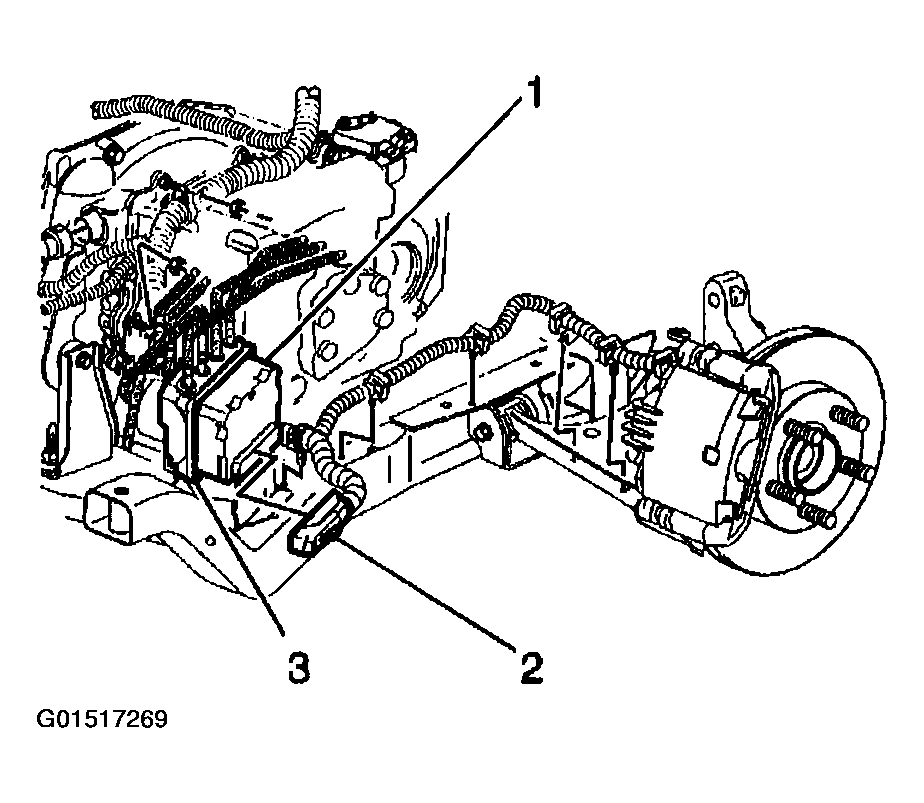

    Fig 2: Connecting EBCM Harness Connector To EBCM
    G01517269Courtesy of GENERAL MOTORS CORP.
  5. Push down the harness connector lock tab (1) and then move the sliding connector cover back in the home position to lock.
  6. Push the CPA (2) back into place.
  7. Install the left engine splash shield.
  8. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  9. Perform the DIAGNOSTIC SYSTEM CHECK - ABS .

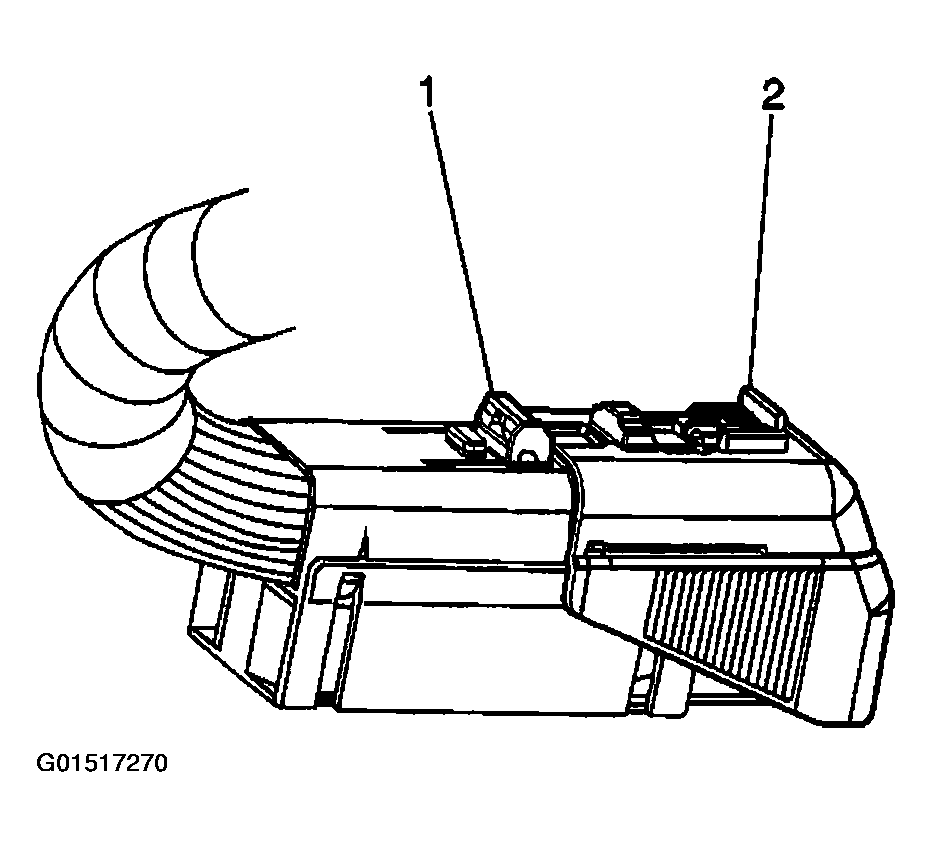

    Fig 3: Installing Connector Position Assurance To Connector Lock Tab
    G01517270Courtesy of GENERAL MOTORS CORP.
