ABS Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

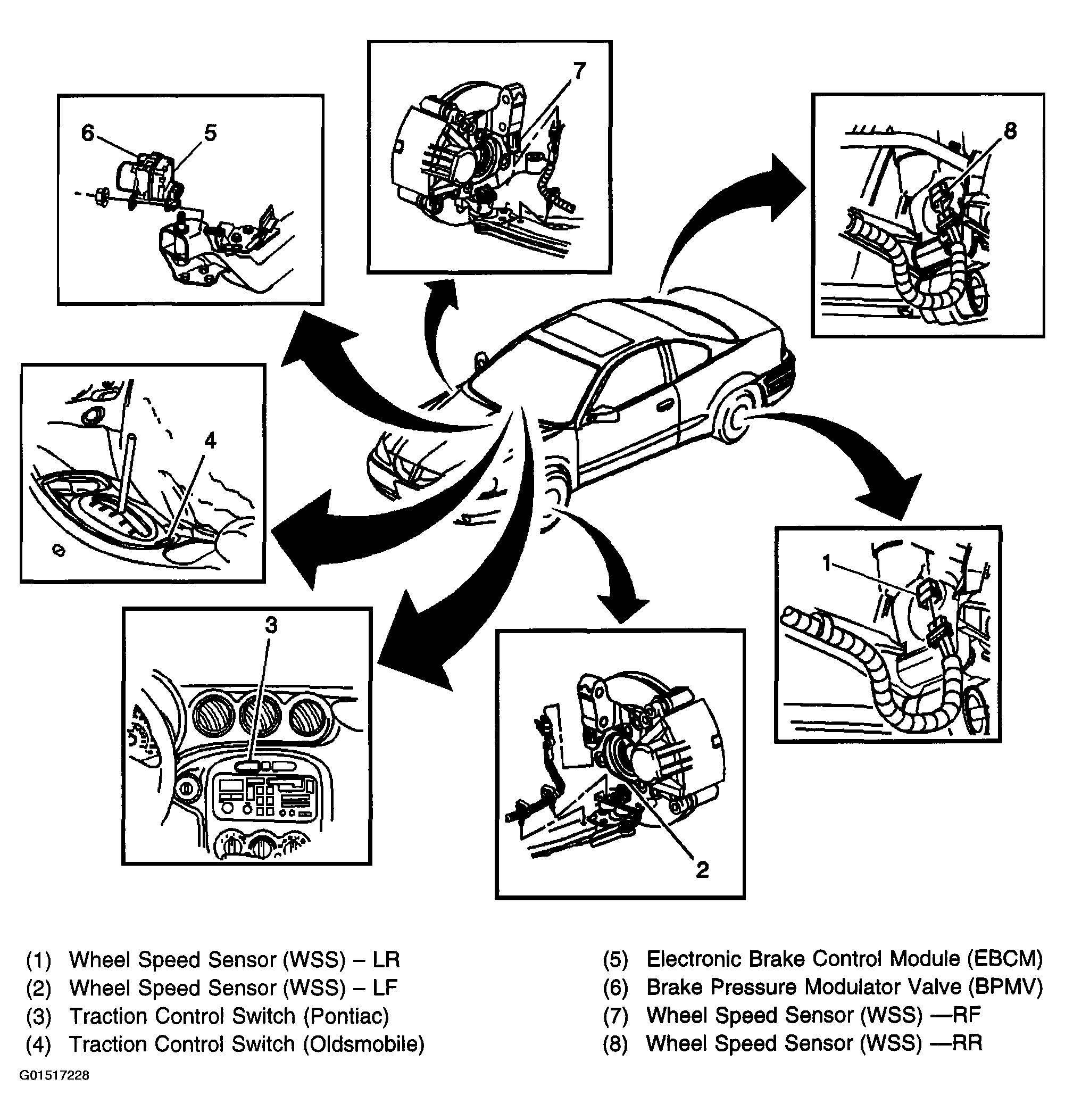

Fig 1: ABS Component Views
G01517228Courtesy of GENERAL MOTORS CORP.
