Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the two nuts from the catalytic converter assembly (1) and separate from the resonator/muffler/tail pipe assembly (2).

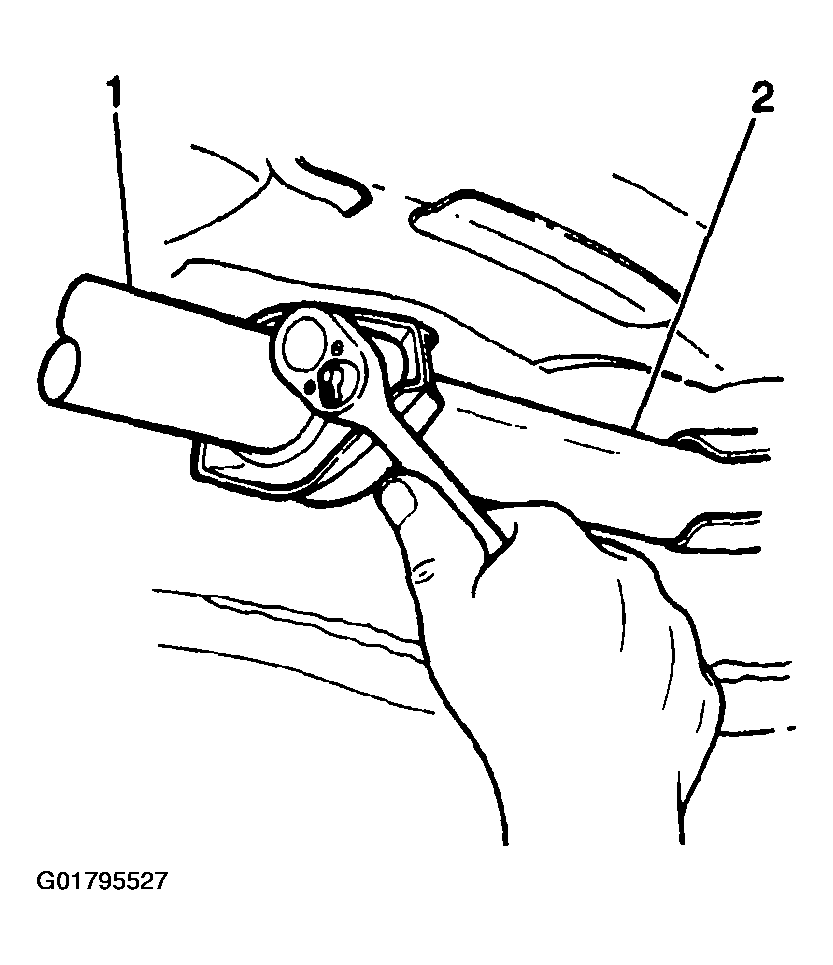

    Fig 1: Separating Catalytic Converter From Resonator/Muffler/Tail Pipe Assembly
    G01795527Courtesy of GENERAL MOTORS CORP.
  3. Remove the hangers supporting the resonator/muffler/tail pipe assembly (7).

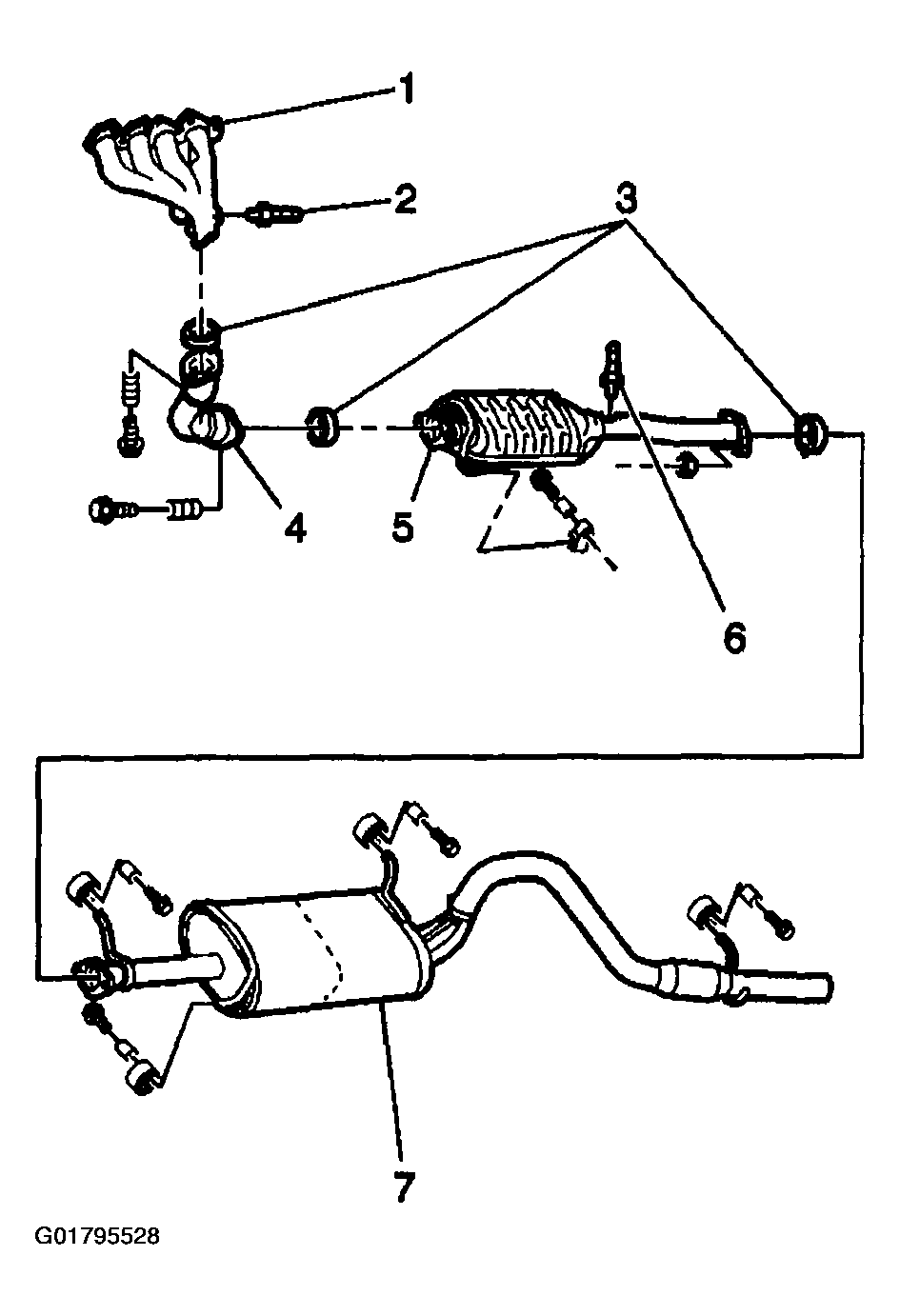

    4. Fig 2: Removing Resonator/Muffler/Tail Pipe Assembly Hangers
    G01795528Courtesy of GENERAL MOTORS CORP.
  4. Remove the resonator/muffler/tail pipe assembly from the vehicle.
  5. Clean the gasket and the seal mating surfaces.
