Installation Procedure

Install the front wheel speed sensor assembly (1) to the steering knuckle (2).
NOTE: Refer to FASTENER NOTICE .
Install the retaining bolt (3).
Tighten

Tighten the retaining bolt to 7.8 N.m (69 lb in).

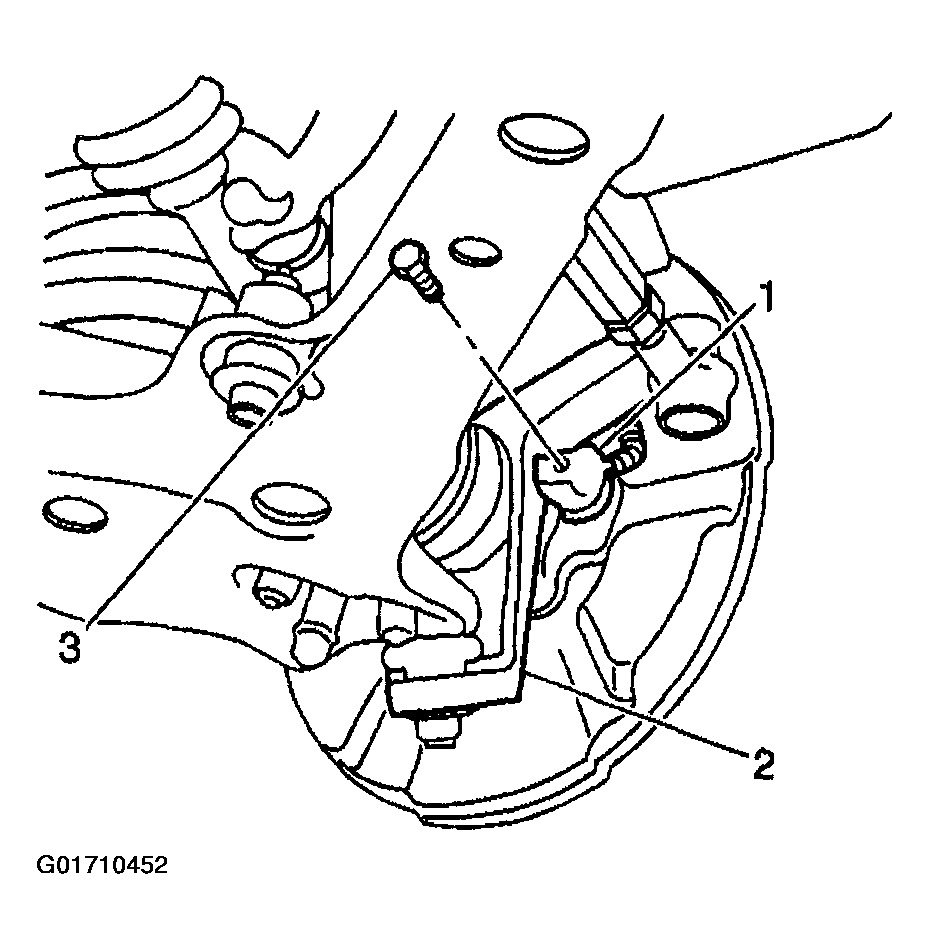

Fig 1: Installing Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Connect the front wheel speed sensor electrical connector.
Lower the vehicle.
Perform Diagnostic System Check - ABS .
