Removal Procedure

  1. Remove the parking brake lever bezel attaching screws (2).
    2. Fig 1: Removing Parking Brake Lever Bezel Attaching Screws
    G01710468Courtesy of GENERAL MOTORS CORP.
  2. Remove the parking brake lever bezel (1).
  3. Remove the center console attaching screws (2).
  4. Remove the center console (1).

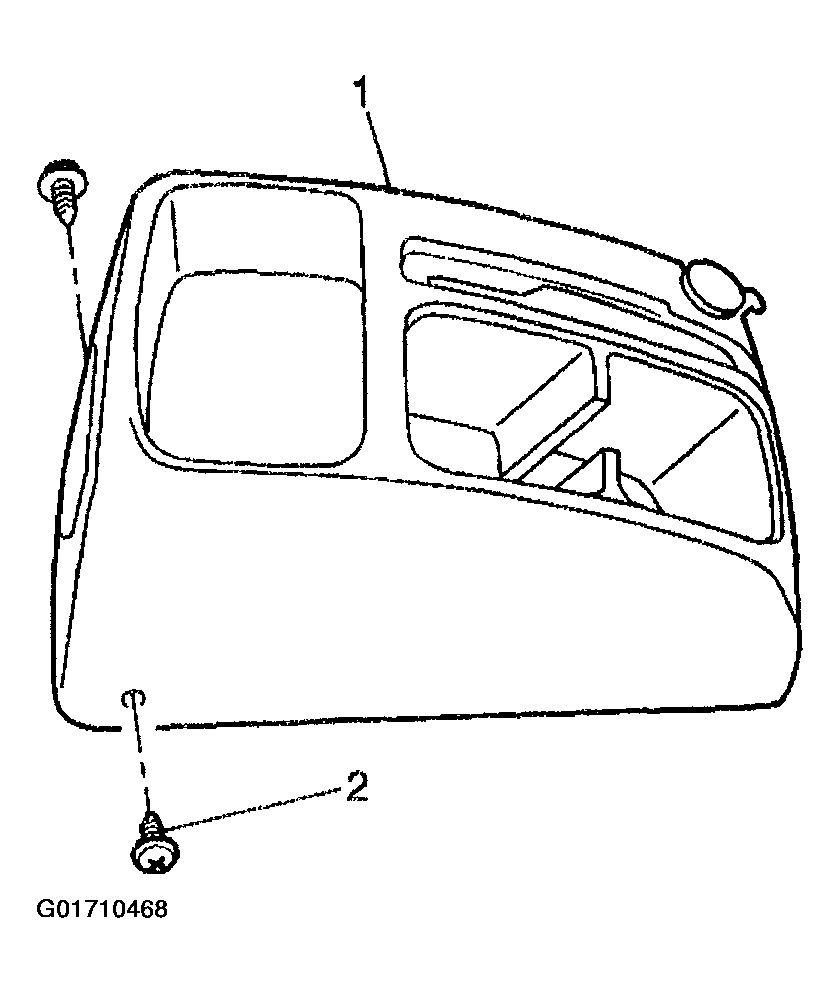

    Fig 2: Removing Center Console
    G01710469Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the 4WD switch electrical connector (2).
  6. Remove the 4WD switch (3) from the transfer case (1).

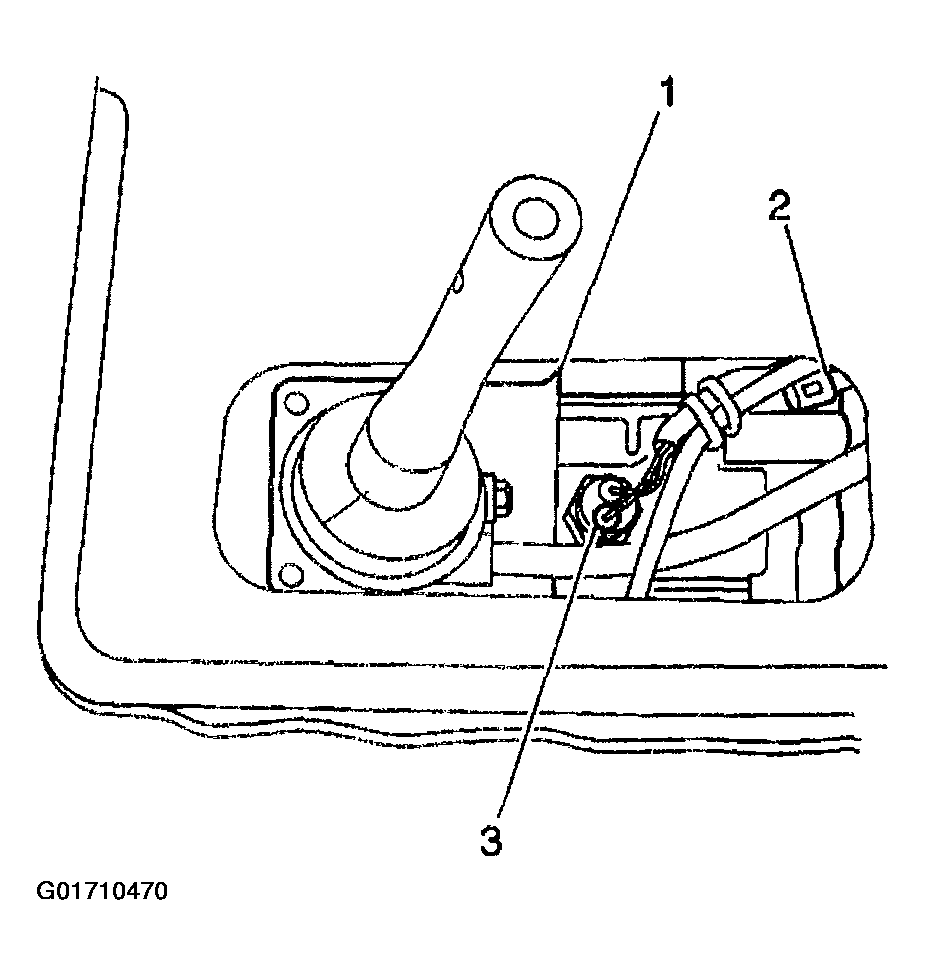

    Fig 3: Removing 4WD Switch From Transfer Case
    G01710470Courtesy of GENERAL MOTORS CORP.
