ABS Connector End Views

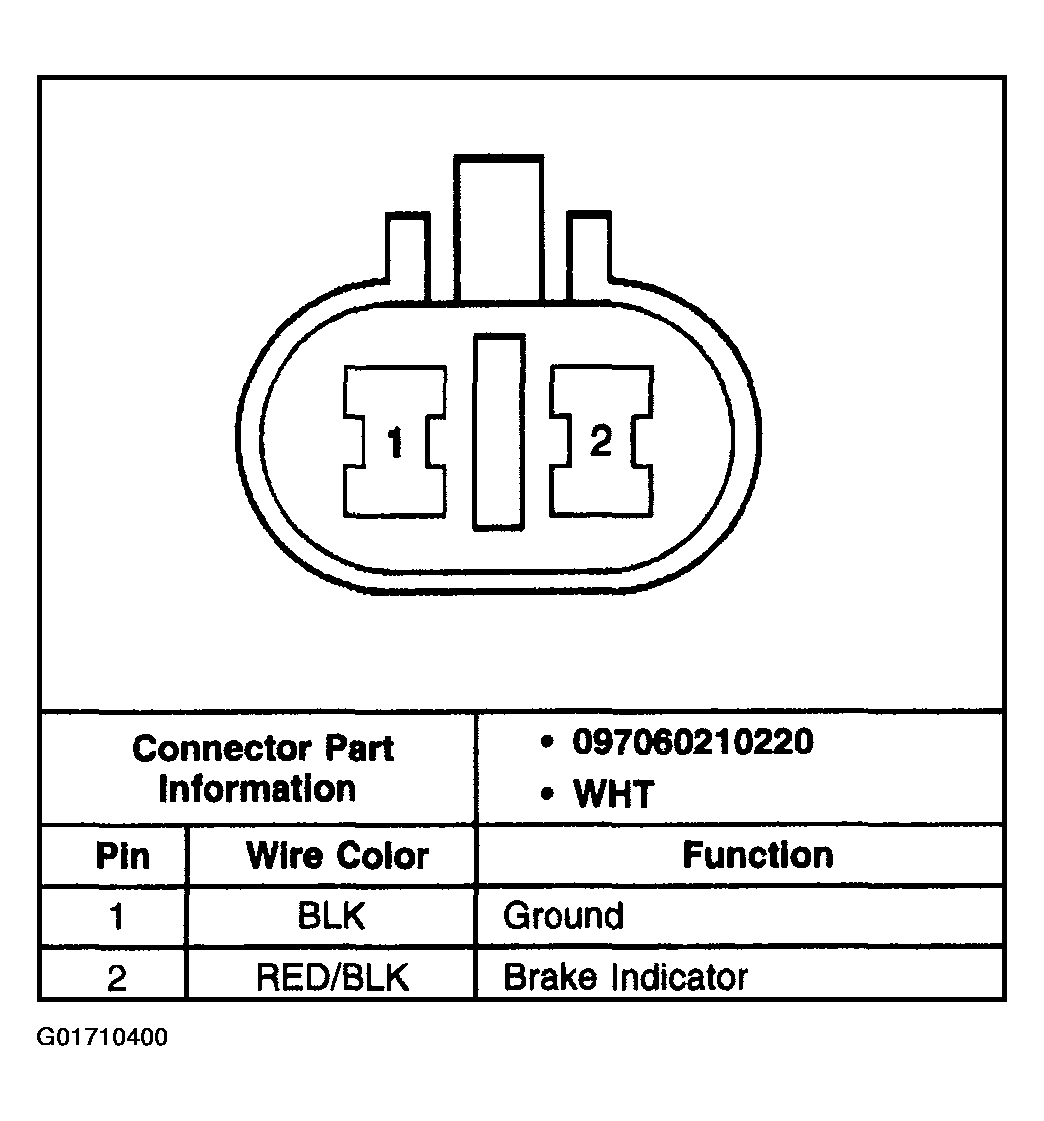

Fig 1: Identifying Brake Fluid Level Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

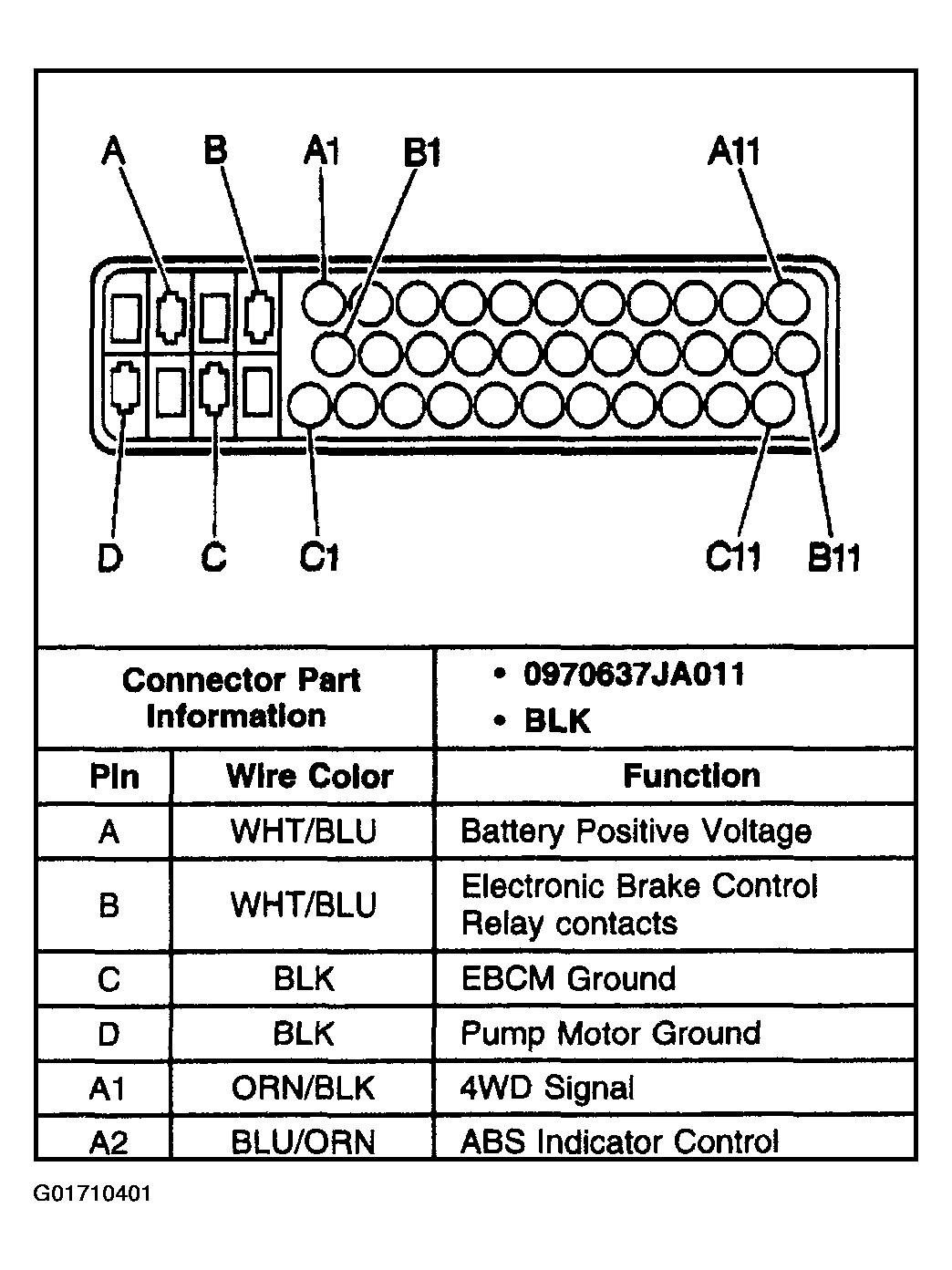

Fig 2: Identifying Electronic Brake Control Module (EBCM) Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

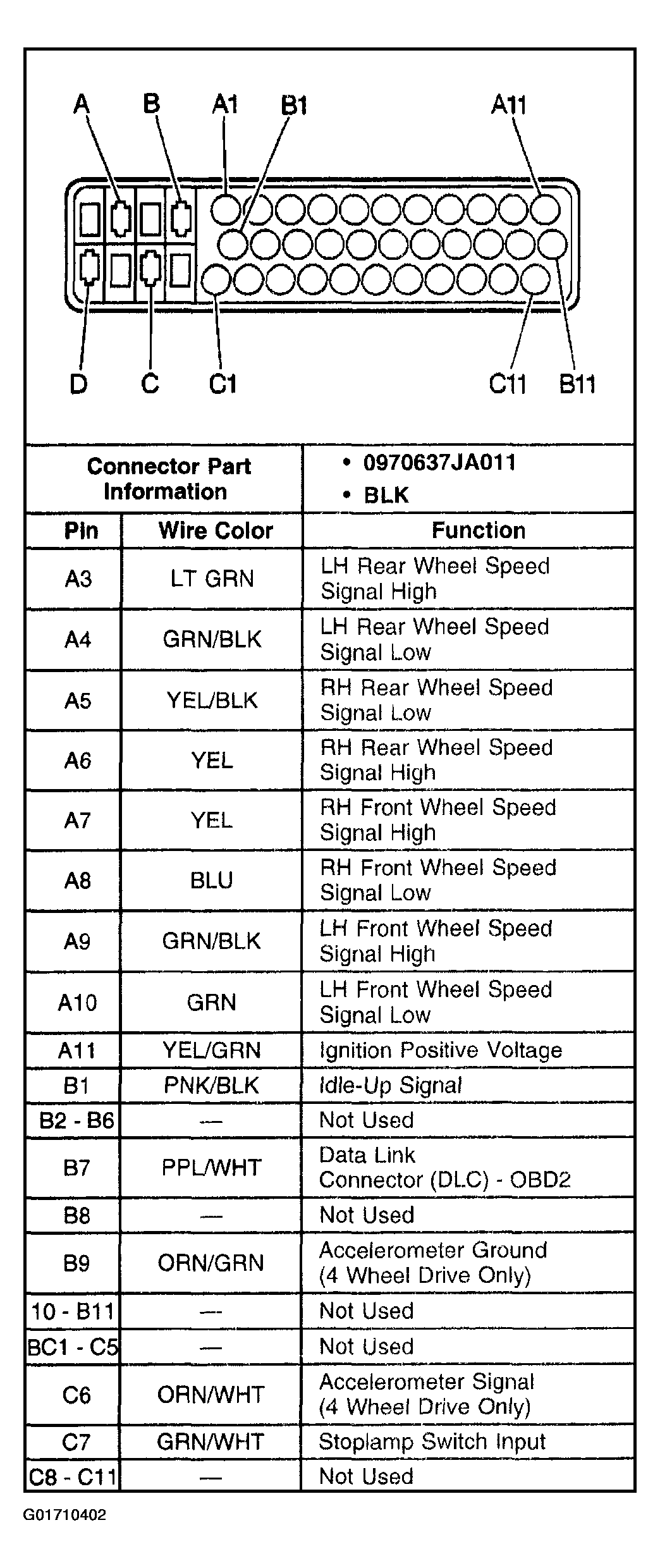

Fig 3: Identifying Electronic Brake Control Module (EBCM) Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying LF Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

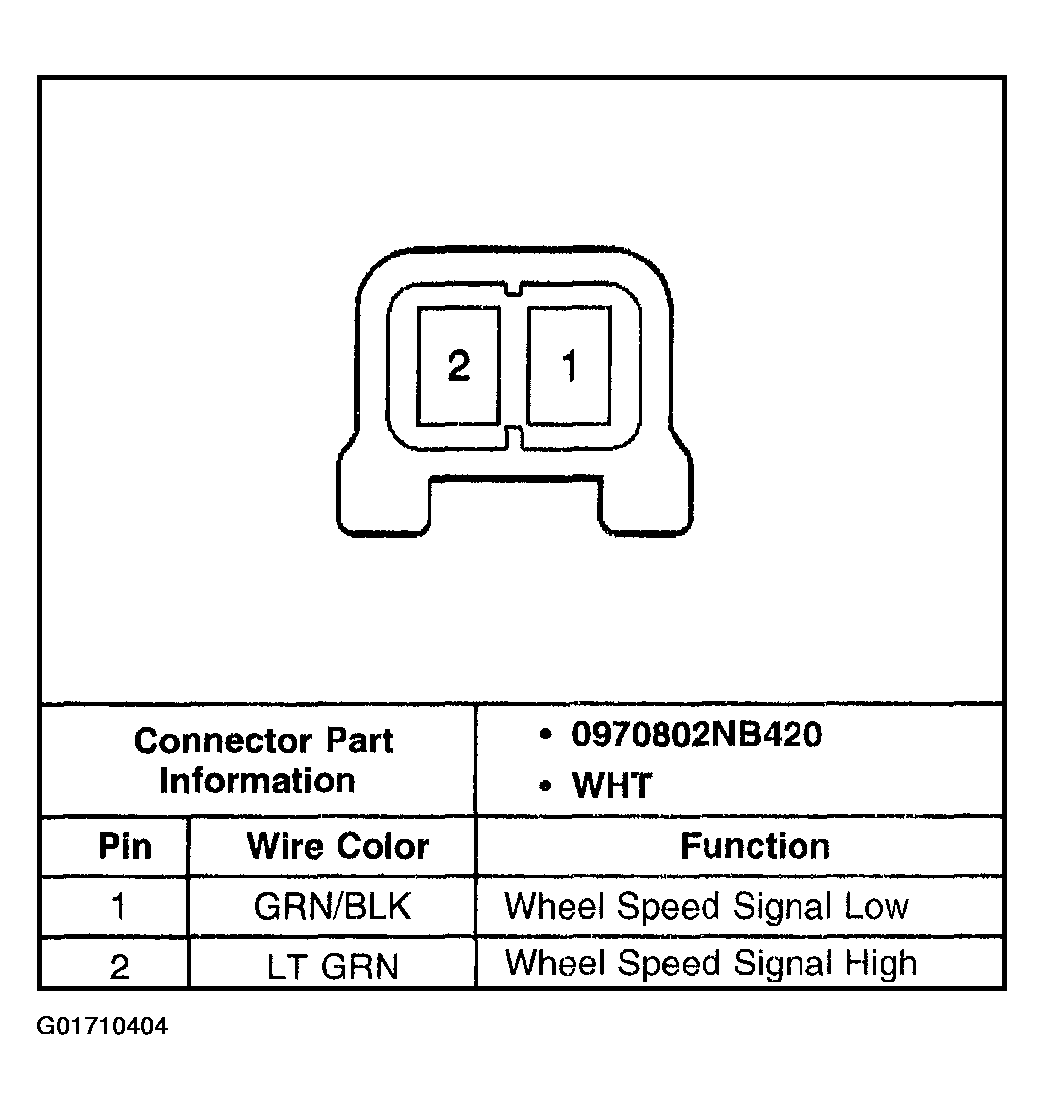

Fig 5: Identifying LR Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

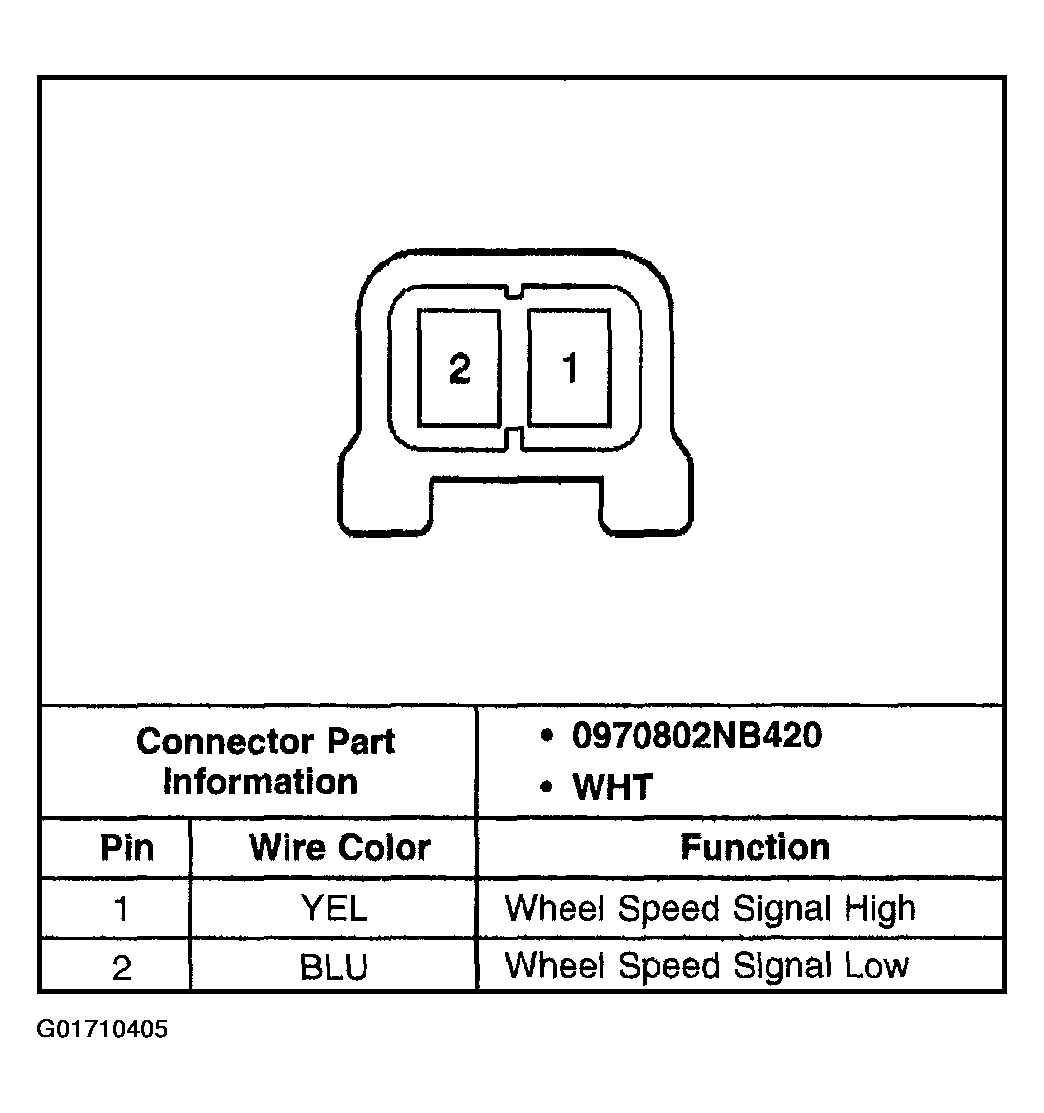

Fig 6: Identifying RF Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

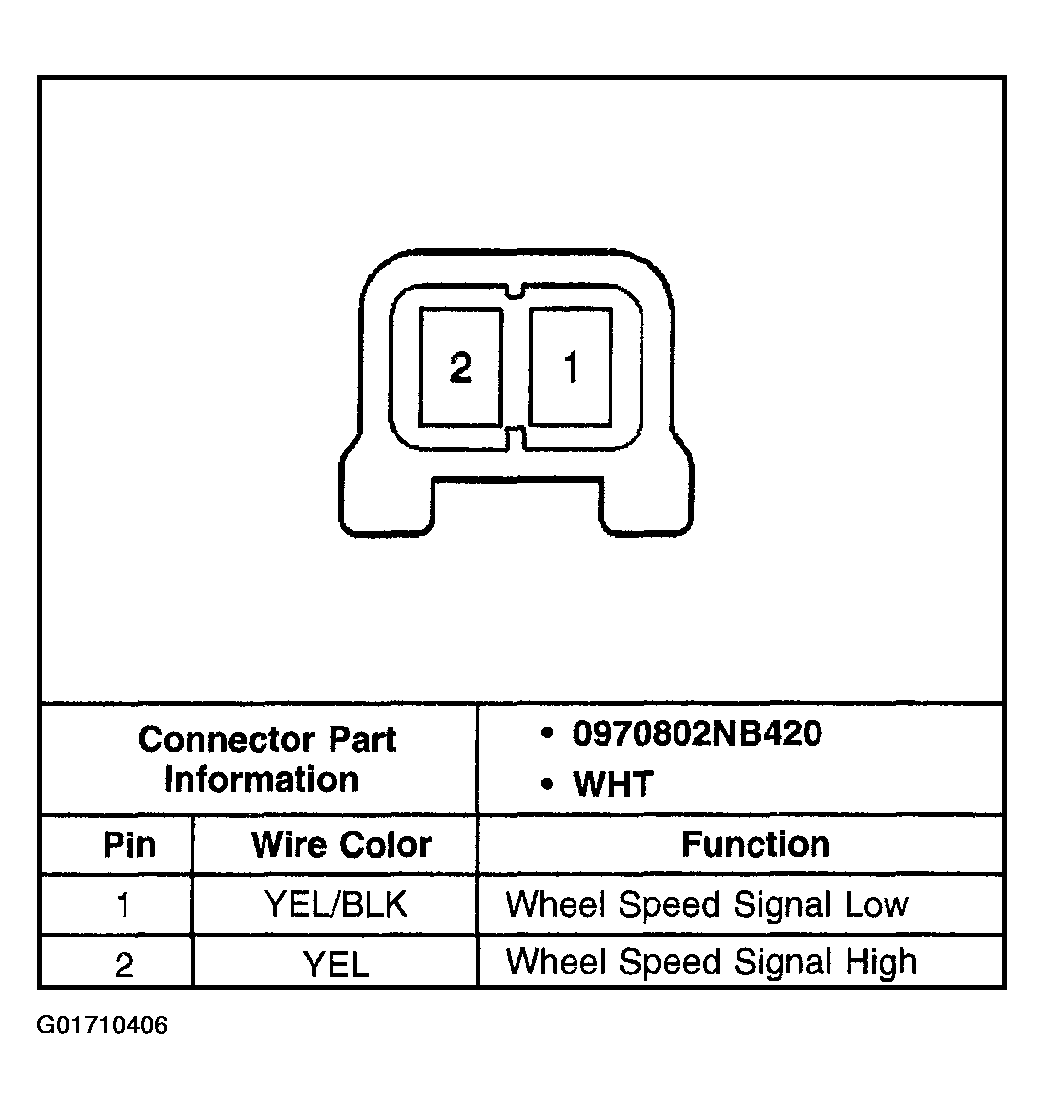

Fig 7: Identifying RR Wheel Speed Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

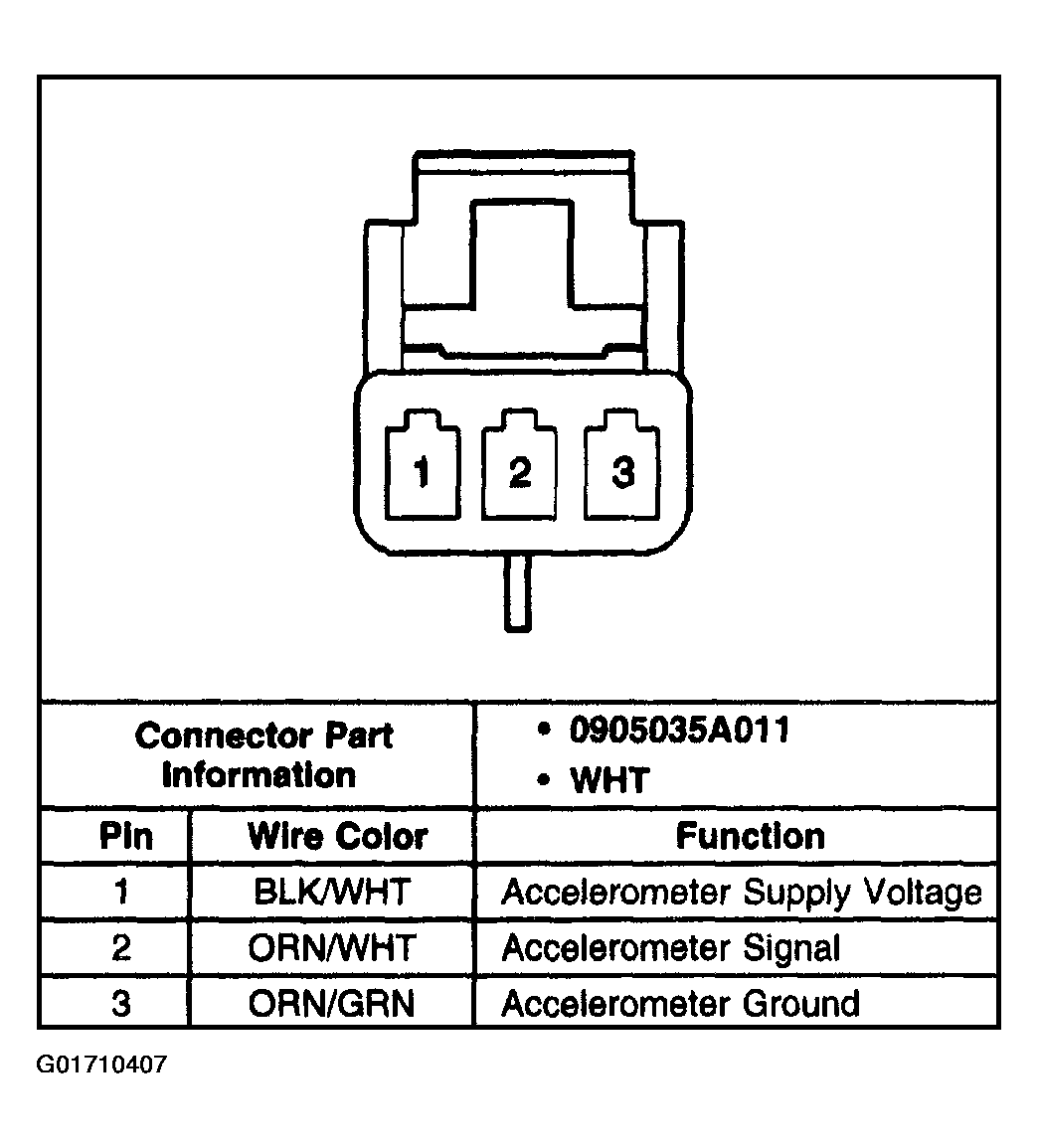

Fig 8: Identifying Accelerometer Connector Terminals

Courtesy of GENERAL MOTORS CORP.
