Specifications
>>
Manual Transmission Specifications
Manual Transmission Specifications

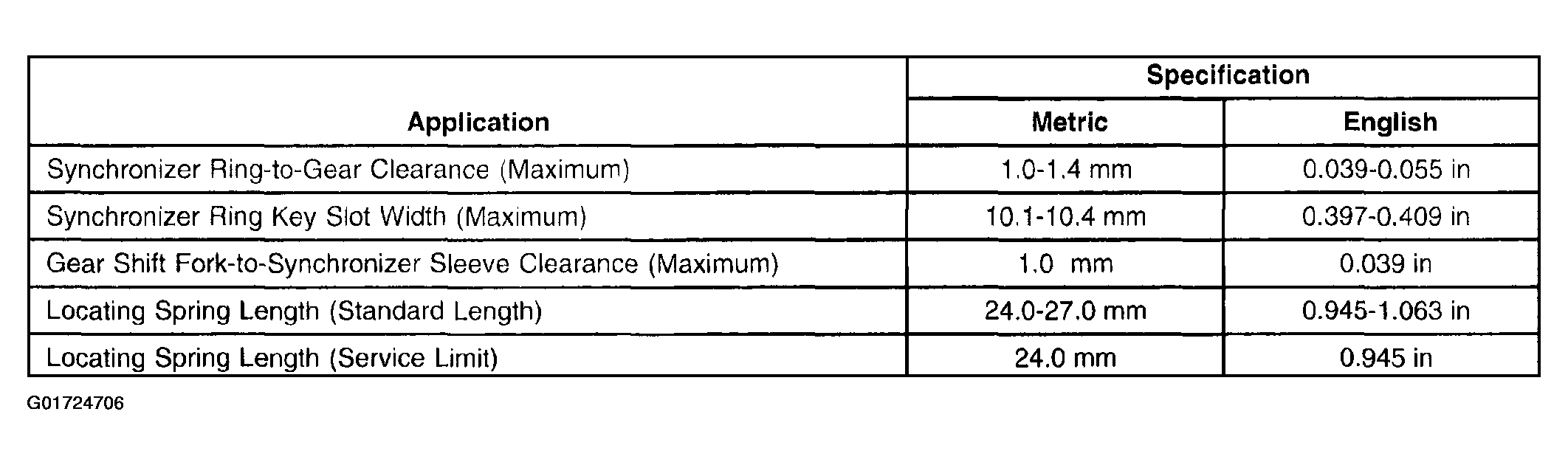

Fig 1: Manual Transmission Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
