Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Using a taped flat bladed tool, gently pry the cruise control switch from the instrument panel.
  3. Disconnect the cruise control switch electrical connector.
  4. Remove the switch from the vehicle.

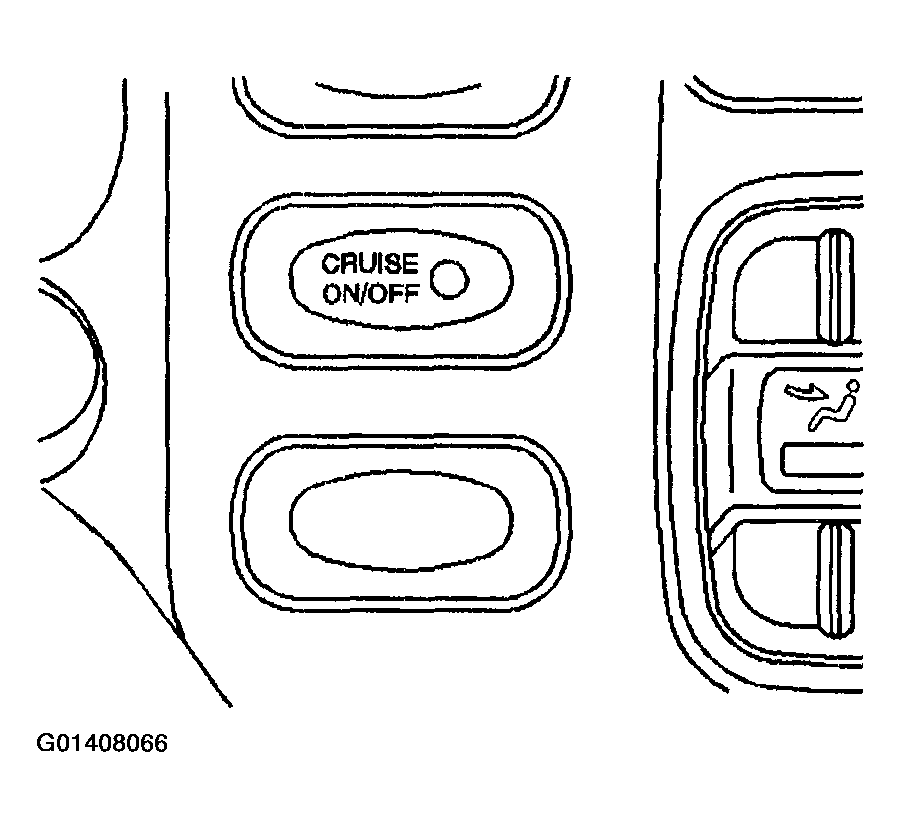

    Fig 1: Removing Cruise Control Switch From Instrument Panel
    G01408066Courtesy of GENERAL MOTORS CORP.
