Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the cruise control servo assembly (6) to the vehicle. Secure the assembly with the 3 bolts (2).
    1. Tighten
    2. Tighten the cruise control servo assembly mounting bolts to 10 N.m (89 lb ft).
  2. Connect the cruise control servo assembly electrical connector.

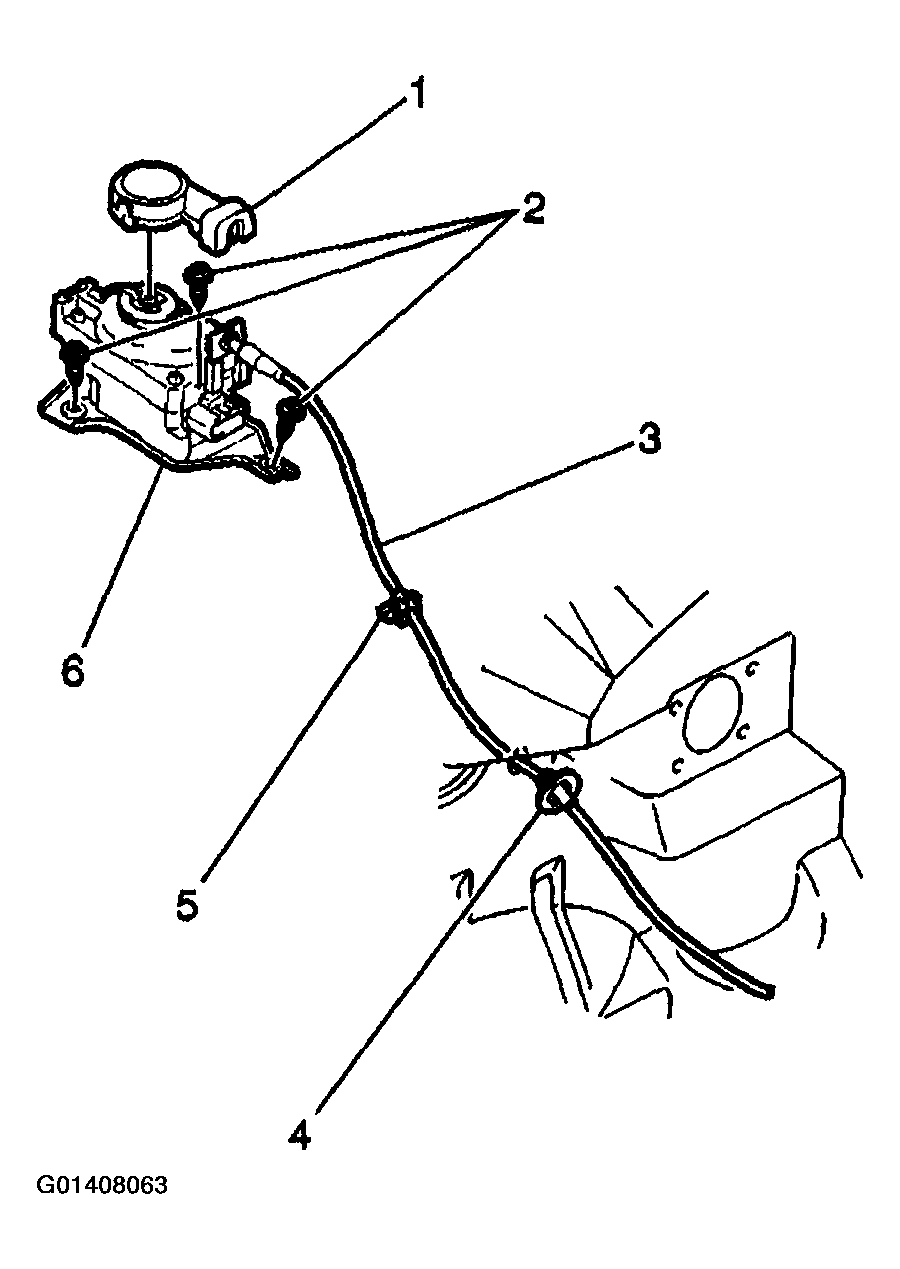

    Fig 1: Installing Cruise Control Servo Assembly To Vehicle
    G01408063Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control servo cable (3) to the cruise control actuator lever (1).
  4. Adjust the cruise control servo cable locknuts (5) in order to adjust the cruise control servo cable play.
  5. Adjust the cruise control servo cable play to 1-2 mm (0.04-0.08 in) at the servo closed throttle position.

    Tighten

    1. Tighten the cruise control cable locknut (5) to 5 N.m (44 lb in).

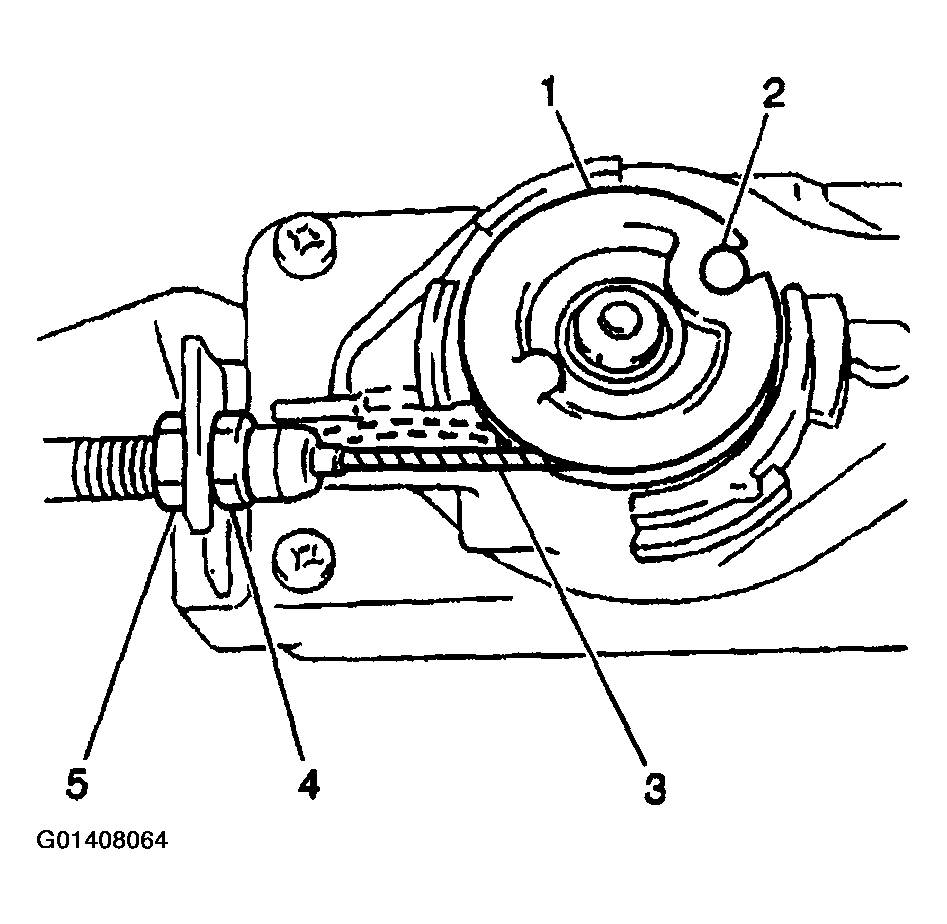

    Fig 2: Installing Cruise Control Servo Cable To Cruise Control Server Assembly
    G01408064Courtesy of GENERAL MOTORS CORP.
  6. Install the cruise control module cover (1).

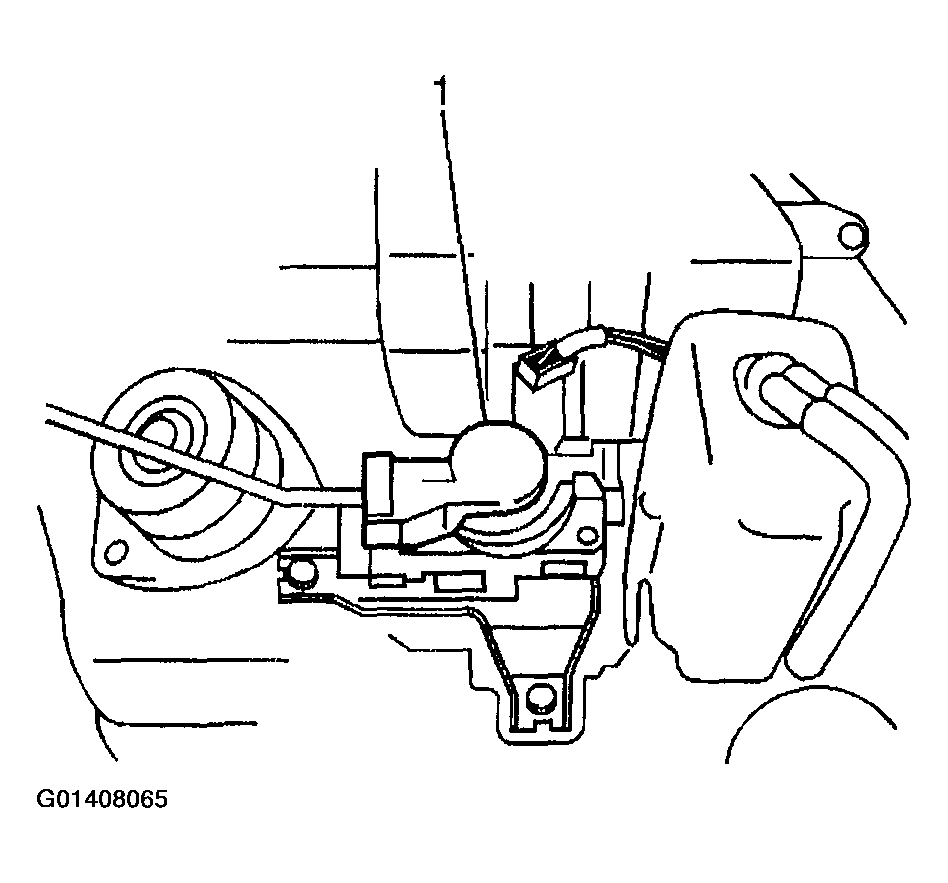

    Fig 3: Cruise Control Module Cover
    G01408065Courtesy of GENERAL MOTORS CORP.
