Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunshade.
  2. Close the sunroof window panel.
  3. Remove the sunroof window panel screws.
  4. Remove the sunroof window panel.

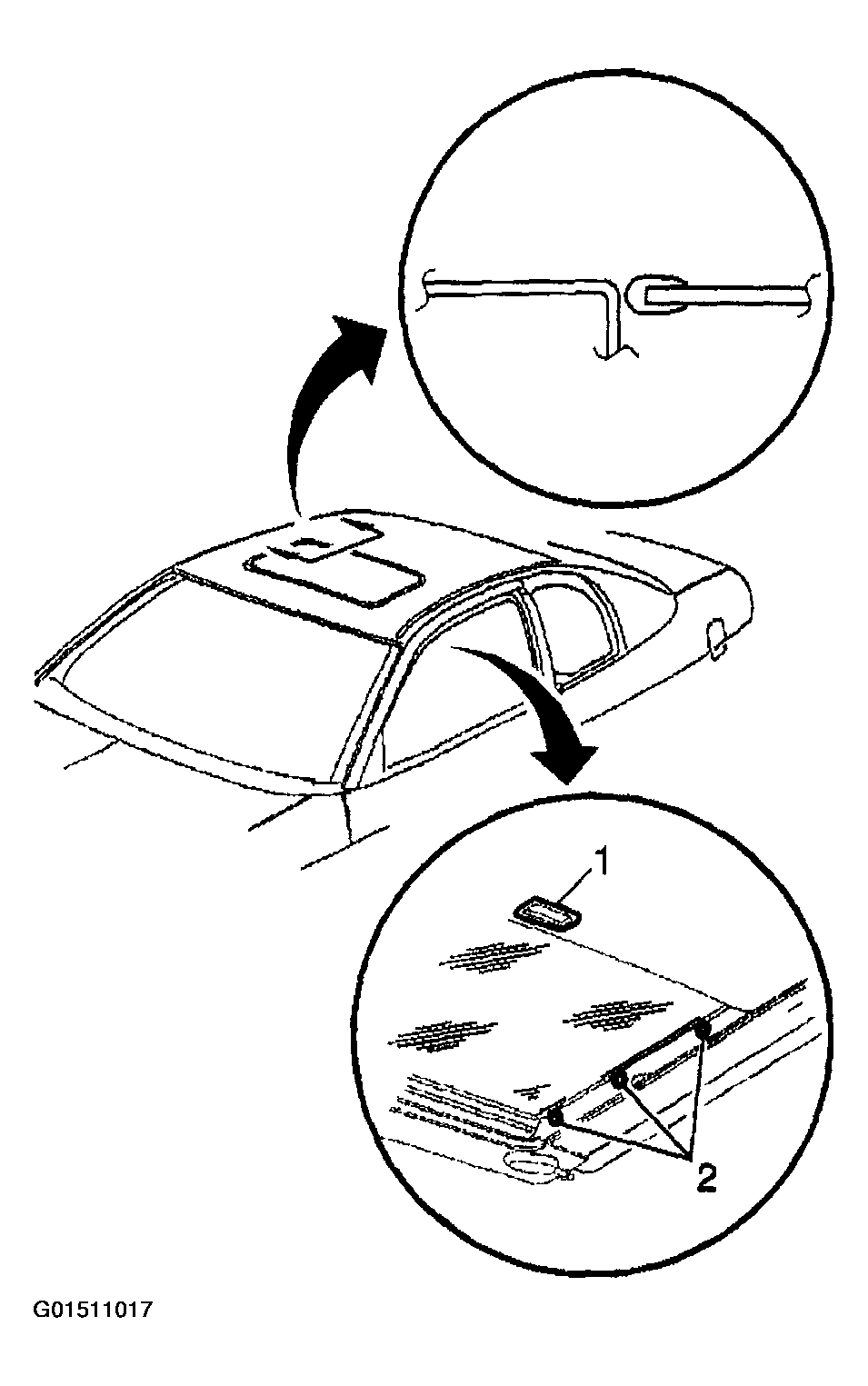

    Fig 1: Removing Sunroof Window Panel
    G01511017Courtesy of GENERAL MOTORS CORP.
