Sensing & Diagnostic Module (SDM): Installation

WARNING: This page is about a different car, the 2000 Chevrolet Tracker and 1999 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount SDM on vehicle, ensuring arrow is pointing toward front of vehicle. Install SDM fasteners and tighten to 44 INCH lbs. (5 N.m). Reconnect SDM connector and CPA clip.
  2. Install center console. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

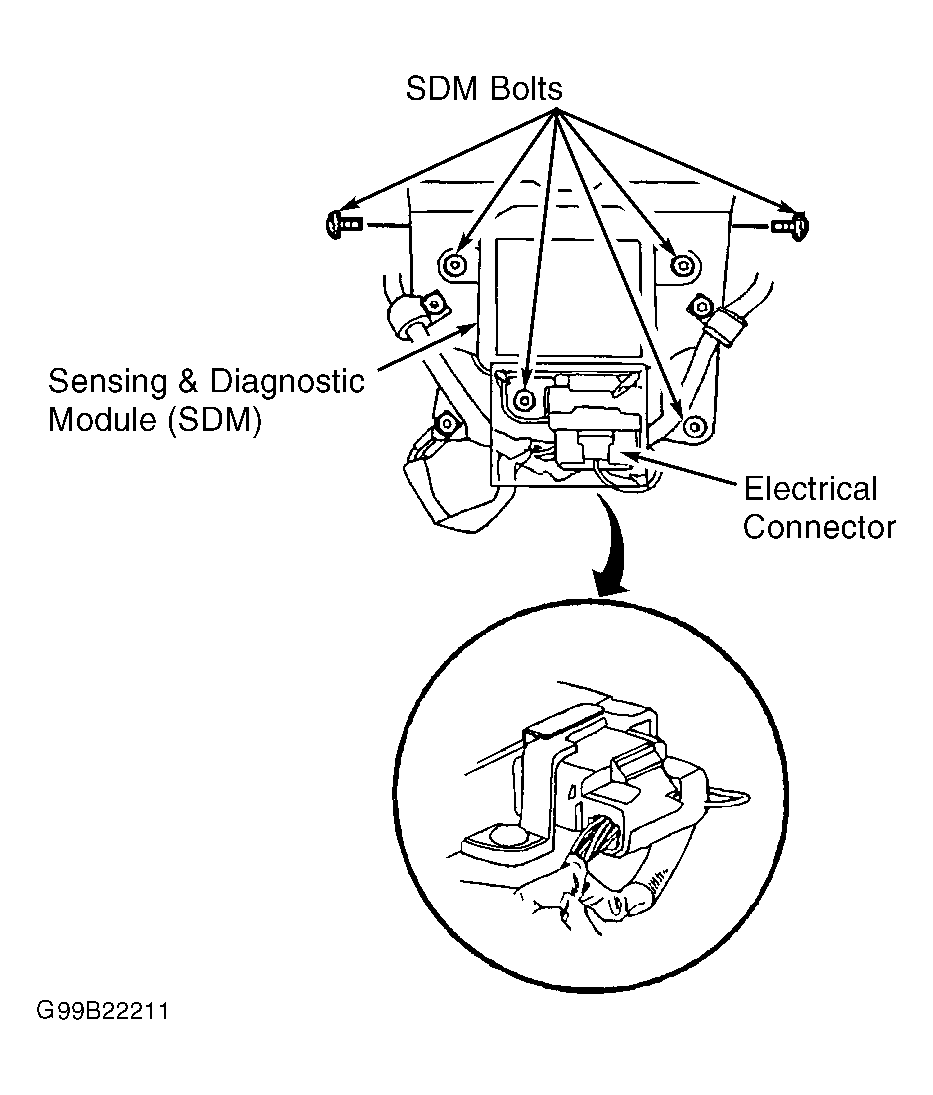

Fig 1: Identifying Sensing & Diagnostic Module (SDM)
G99B22211Courtesy of GENERAL MOTORS CORP.
