Removal Procedure

  1. Remove the parking brake lever bezel attaching screws (2).
  2. Remove the parking brake lever bezel (1).

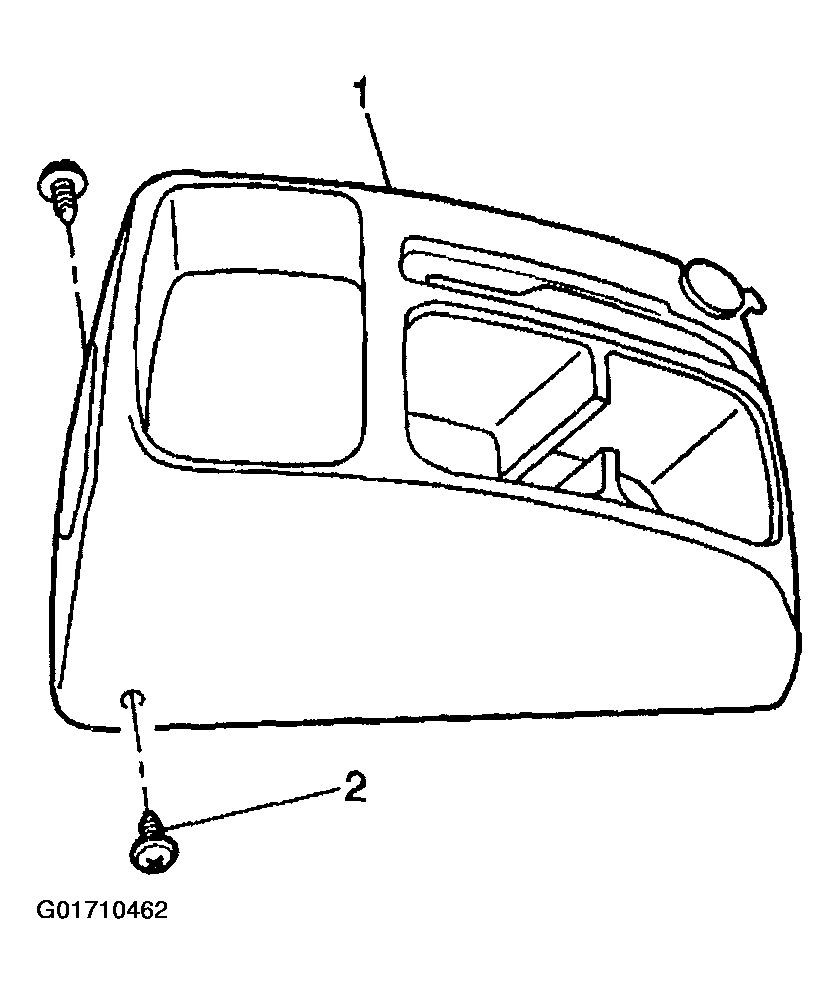

    Fig 1: Removing Parking Brake Lever Bezel
    G01710462Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the accelerometer electrical connector (2).

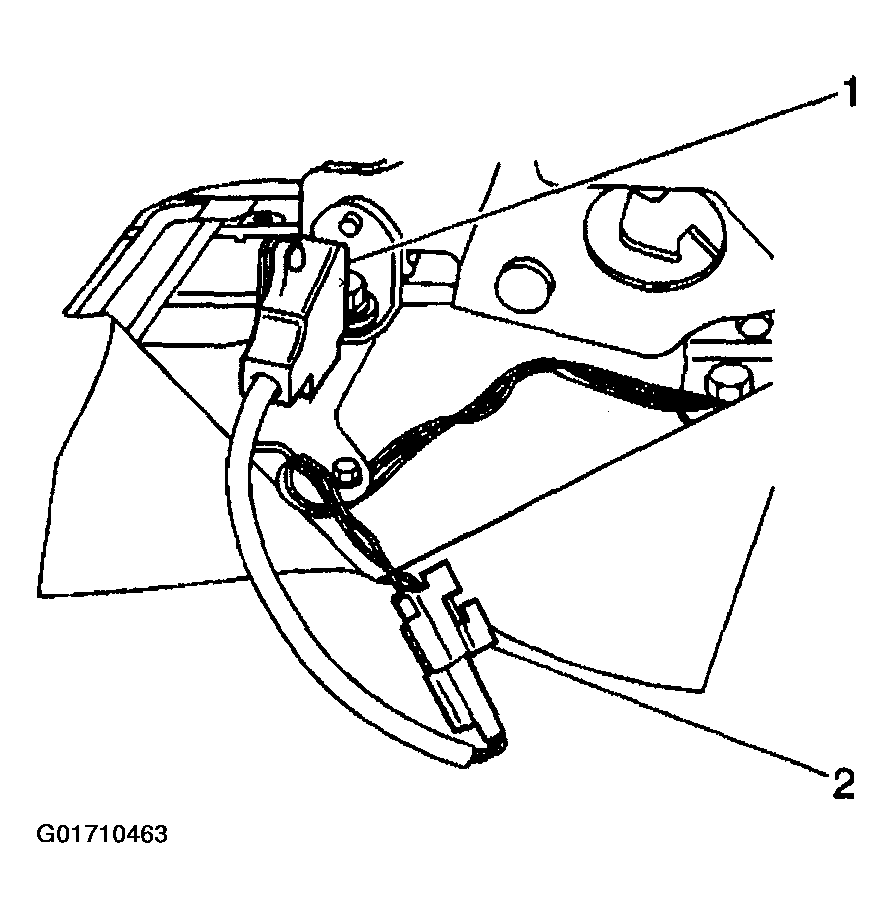

    Fig 2: Disconnecting Accelerometer Connector
    G01710463Courtesy of GENERAL MOTORS CORP.
  4. Remove the two bolts (2) that retain the accelerometer (1).
  5. Remove the accelerometer (1) from the vehicle.

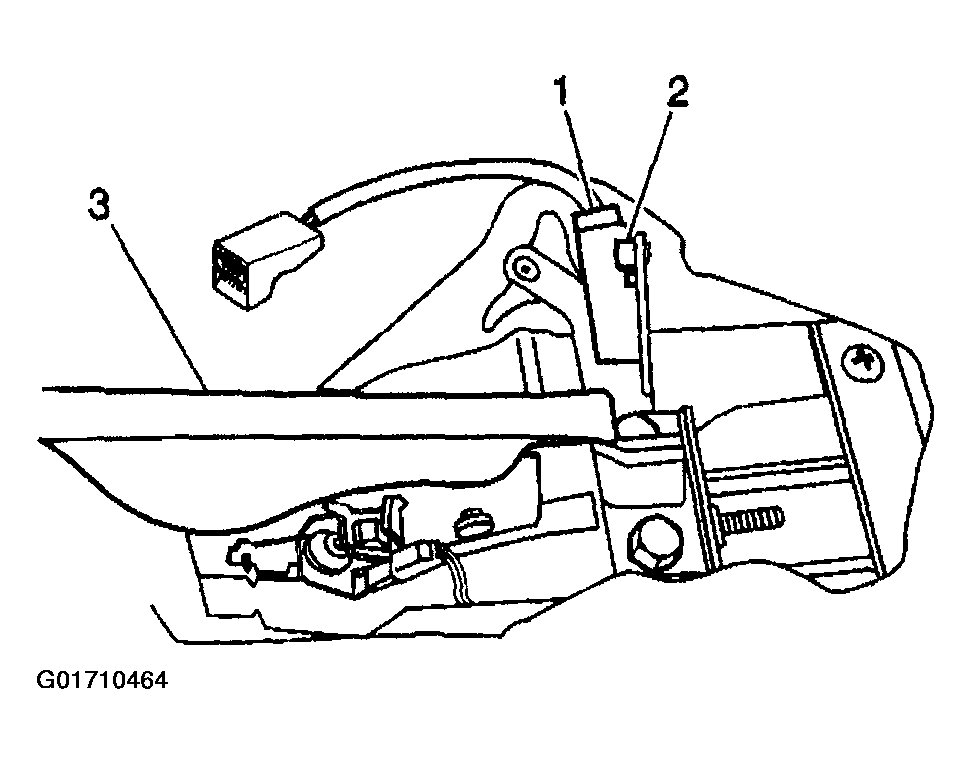

    Fig 3: Removing Accelerometer
    G01710464Courtesy of GENERAL MOTORS CORP.
