Installation Procedure

  1. Install the accelerometer (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE .

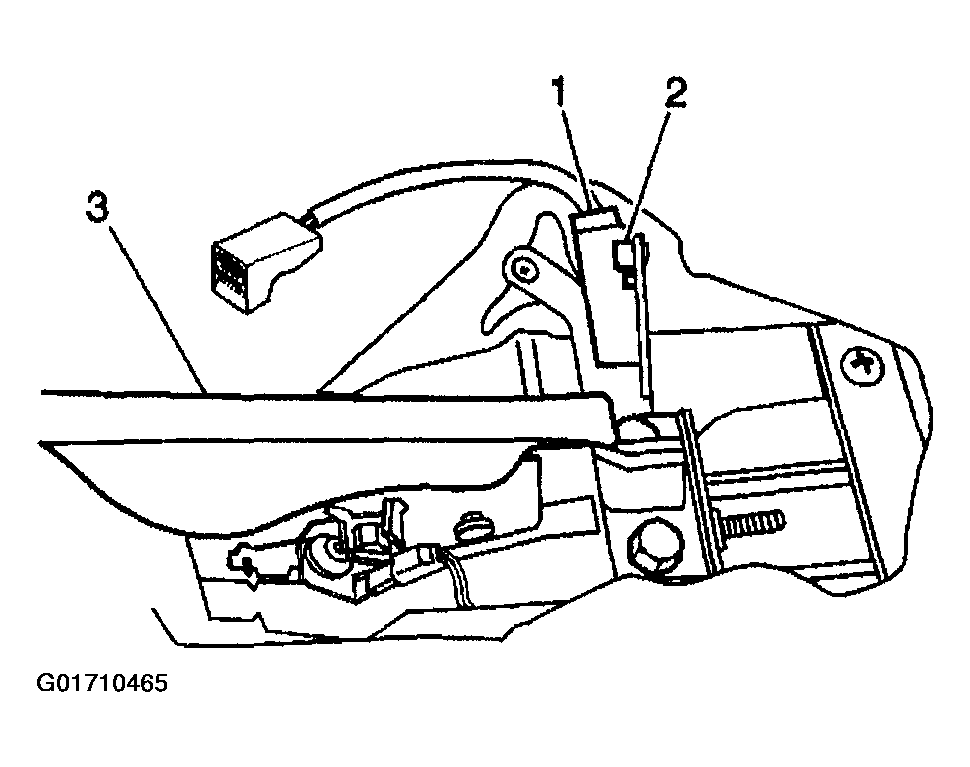

    2. Fig 1: Installing Accelerometer
    G01710465Courtesy of GENERAL MOTORS CORP.
  2. Install the two bolts (2) that retain the accelerometer.

    Tighten

    Tighten the two accelerometer bolts to 16 N.m (12 lb ft).

  3. Connect the accelerometer electrical connector (2).

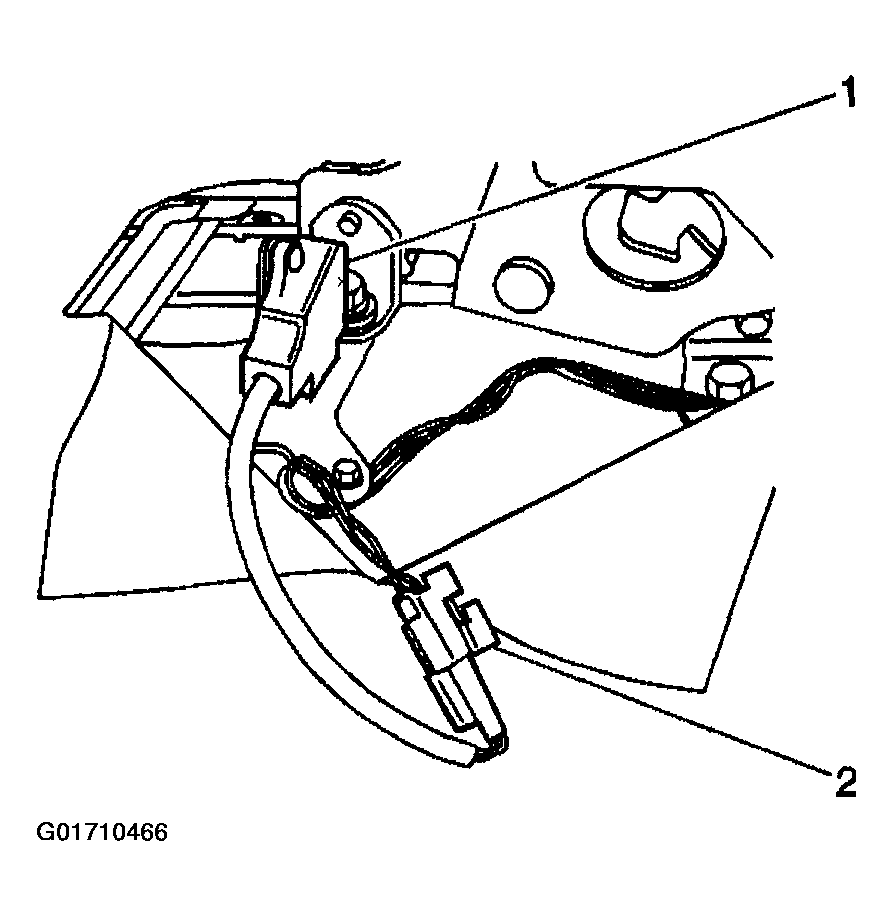

    Fig 2: Connecting Accelerometer Connector
    G01710466Courtesy of GENERAL MOTORS CORP.
  4. Install the parking brake lever bezel (1).

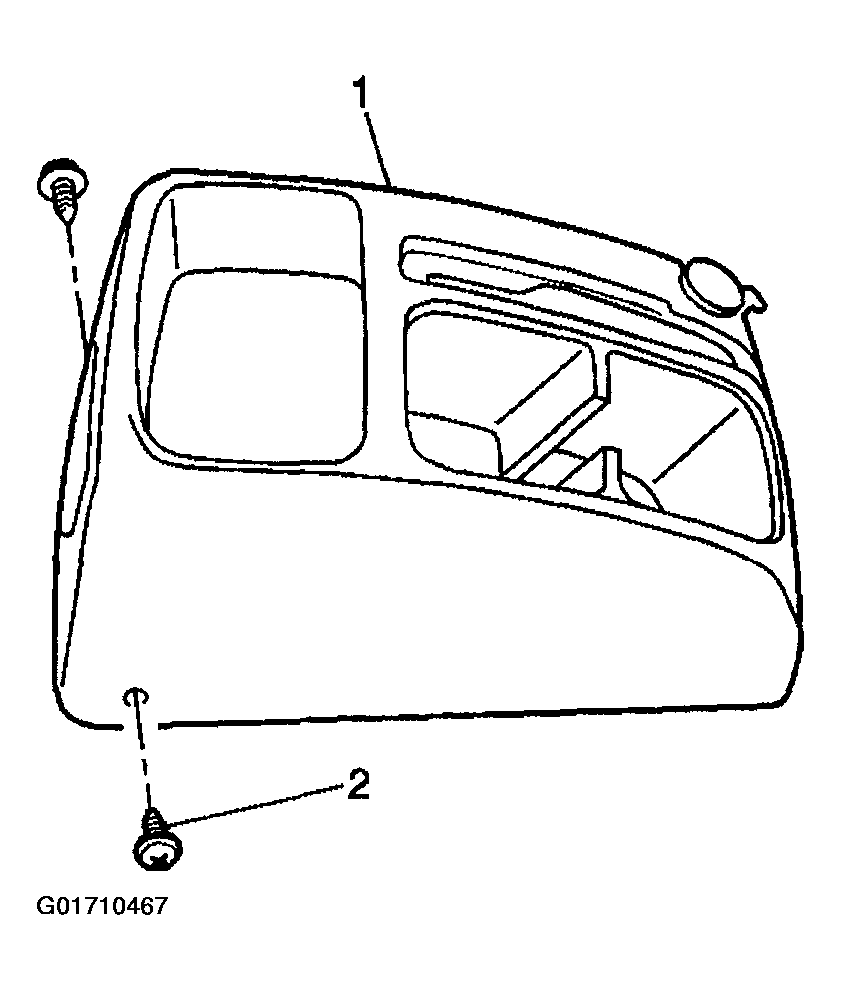

    5. Fig 3: Installing Parking Brake Lever Bezel
    G01710467Courtesy of GENERAL MOTORS CORP.
  5. Install the parking brake lever bezel attaching screws (2).
  6. Perform Diagnostic System Check - ABS .
