Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Turn the ignition switch to the OFF position.
  2. Remove the Connector Position Assurance (CPA) (2) from the connector lock tab (1).

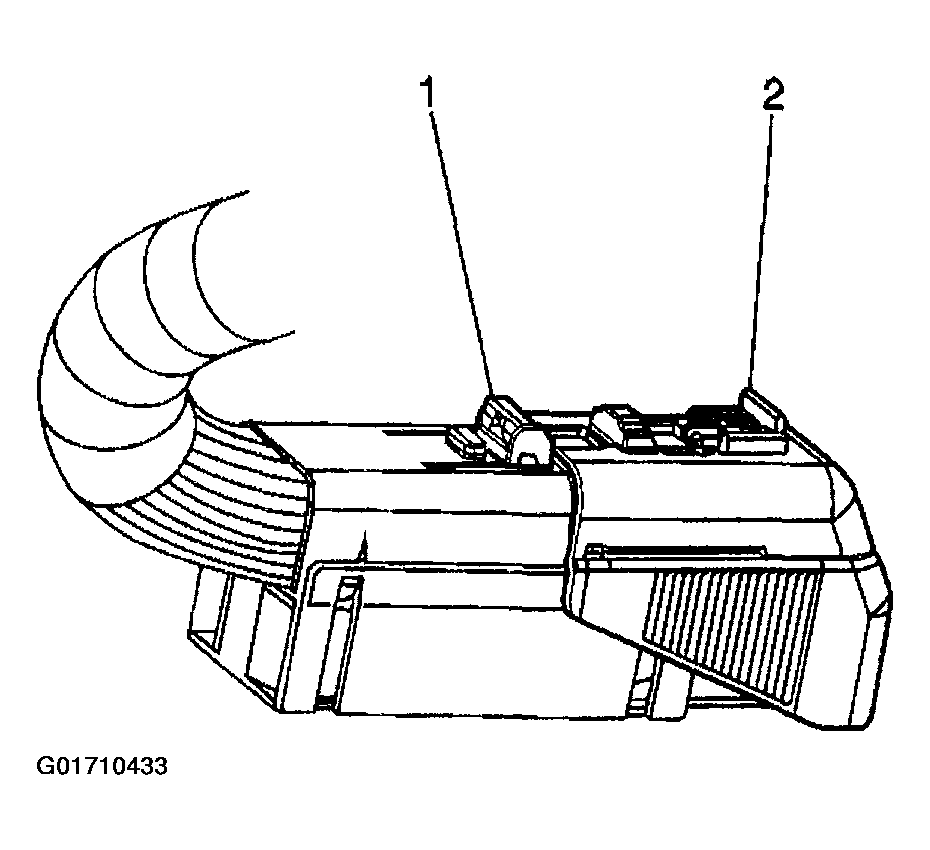

    Fig 1: Removing Connector Position Assurance From Connector Lock Tab
    G01710433Courtesy of GENERAL MOTORS CORP.
  3. Push the lock tab down and then move the sliding connector cover (2) to the open position.

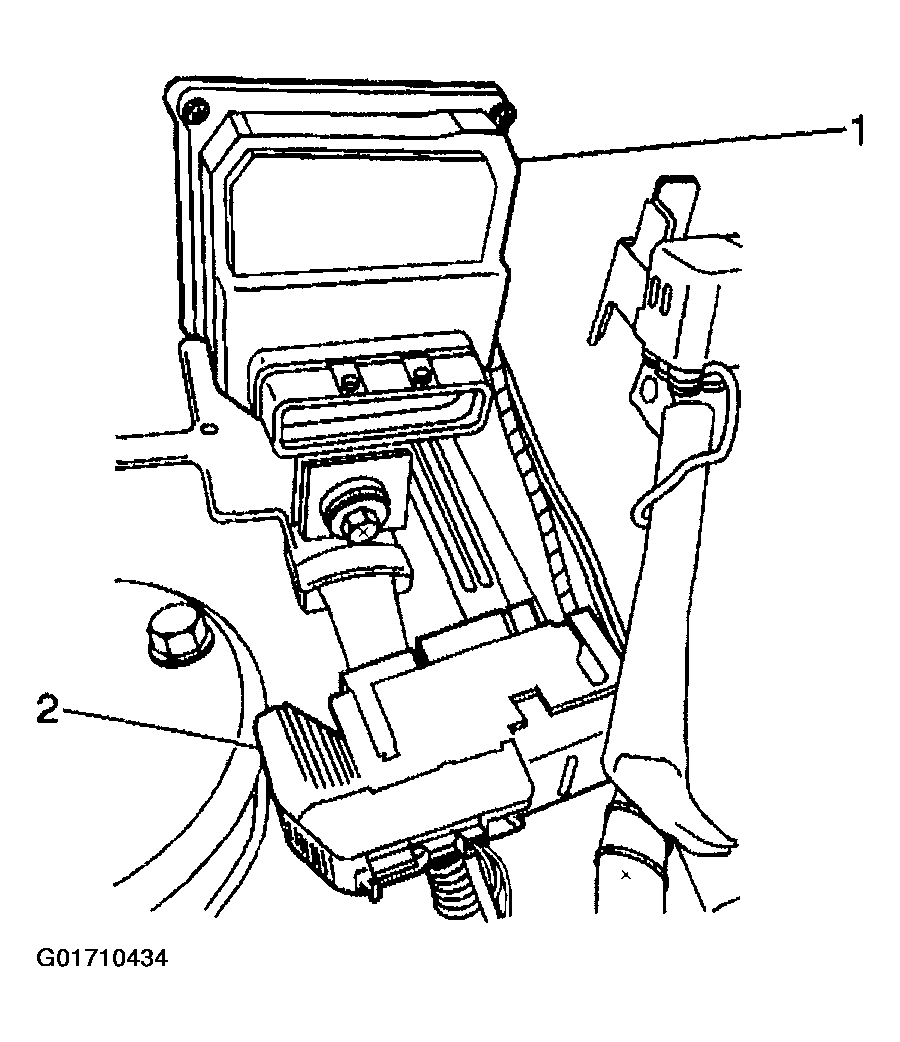

    4. Fig 2: Locating Lock Tab
    G01710434Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the Electronic Brake Control Module (EBCM) harness connector.
  5. Brush off any dirt/debris that has accumulated on the assembly.
  6. Remove the four EBCM to Brake Pressure Modulator Valve (BPMV) screws (1).
    NOTE: Do not use a tool to pry the EBCM from the BPMV. Excessive force will damage the EBCM.
    NOTE: Be careful not to damage the EBCM seal when removing the EBCM.
  7. Separate the EBCM (2) from the BPMV (4) by gently pulling apart until separated.

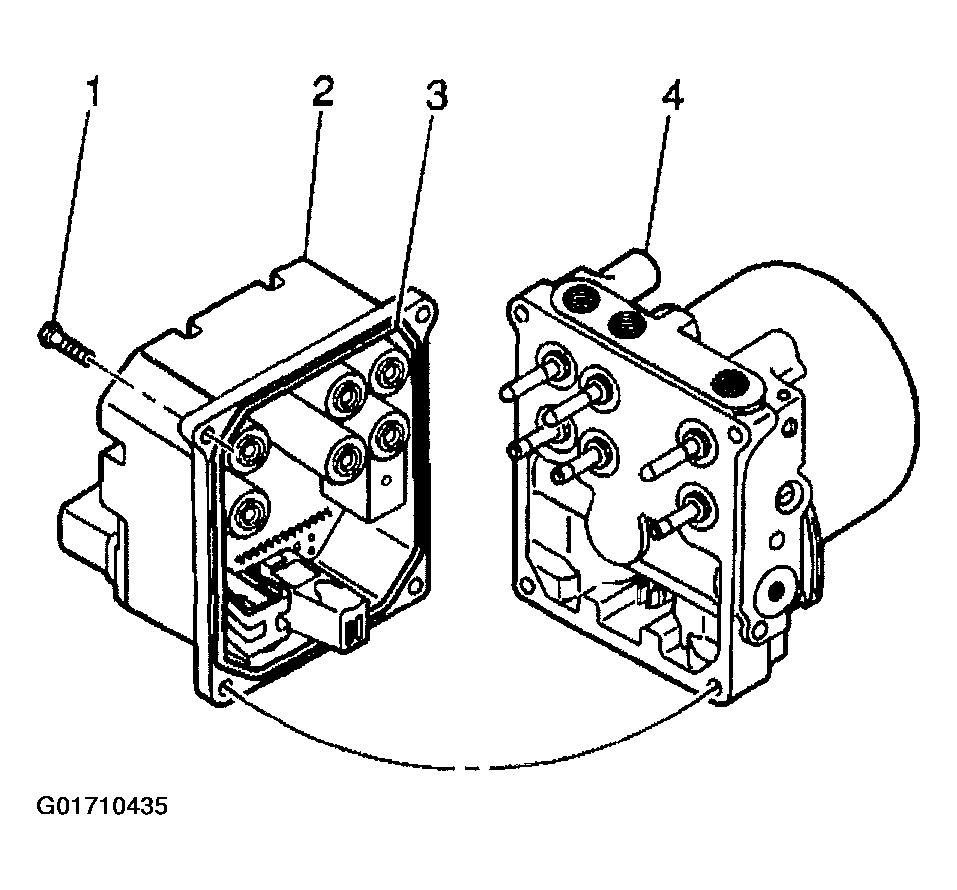

    Fig 3: Separating Electronic Brake Control Module From Brake Pressure Modulator Valve
    G01710435Courtesy of GENERAL MOTORS CORP.
