Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the 4WD switch (1) to the transfer case (2).

    Tighten

    Tighten the 4WD switch to 30 N.m (22 lb ft).

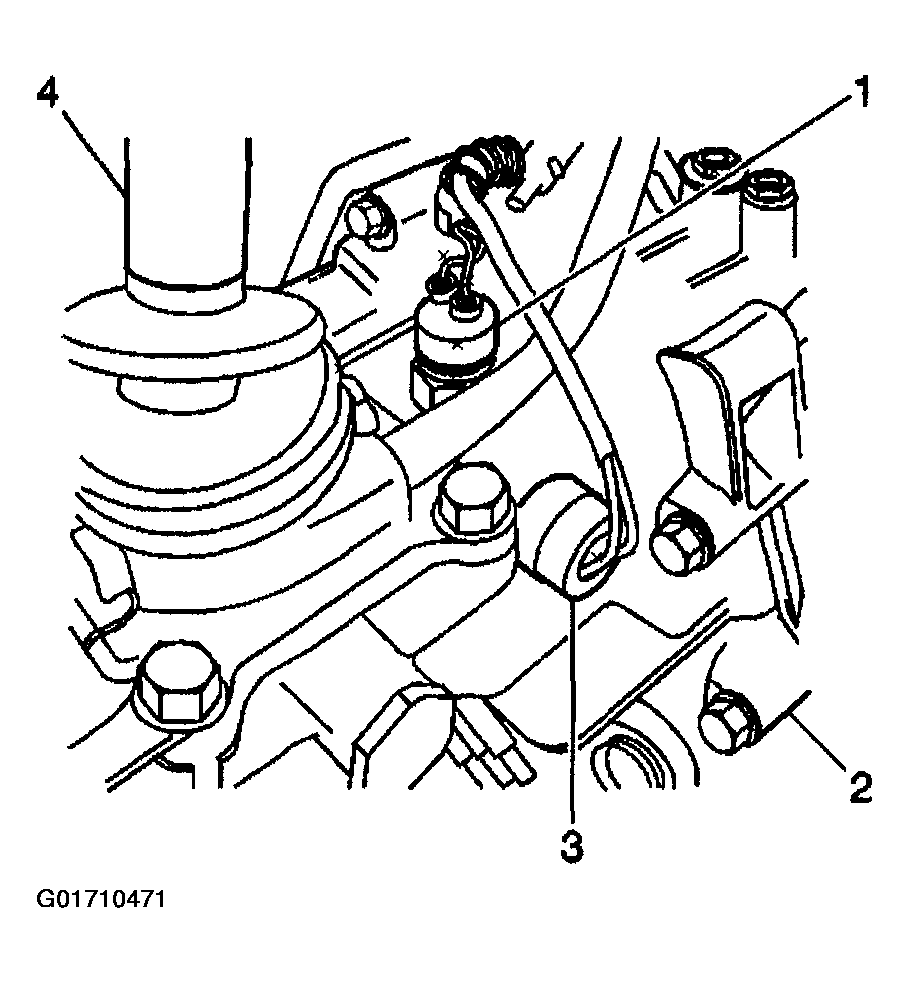

    Fig 1: Installing 4WD Switch To Transfer Case
    G01710471Courtesy of GENERAL MOTORS CORP.
  2. Connect the 4WD switch electrical connector (2).

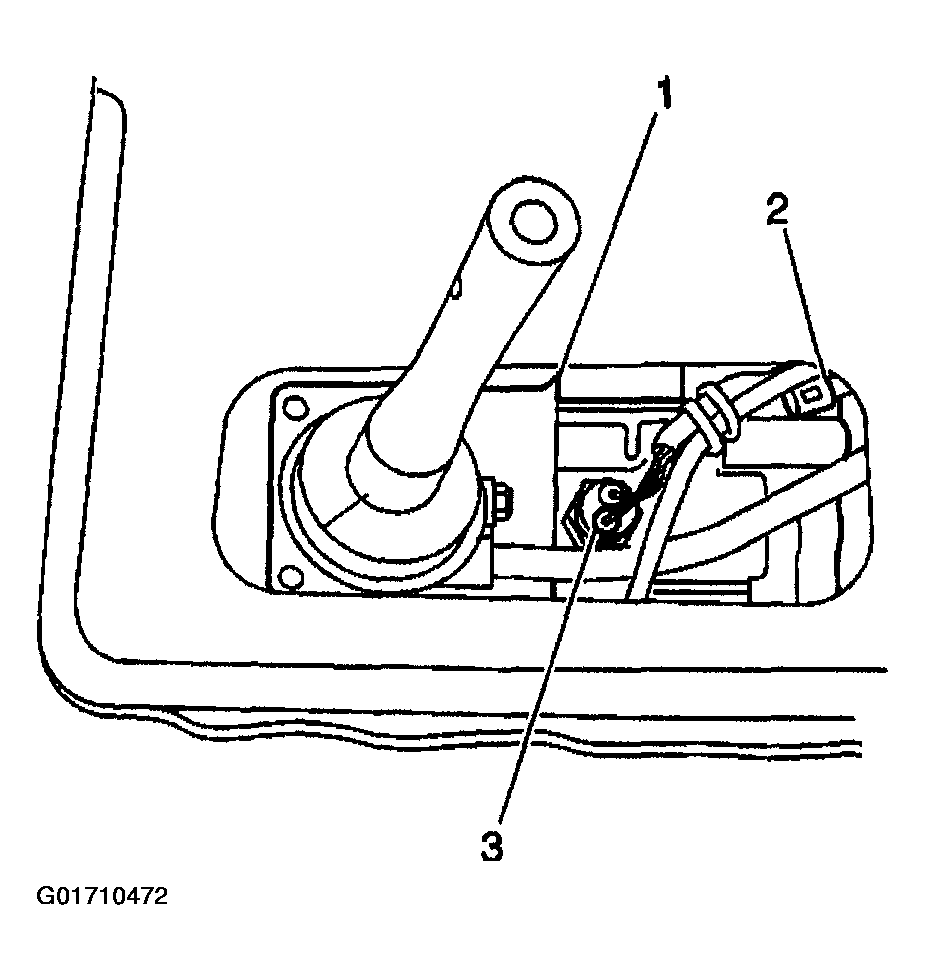

    Fig 2: Connecting 4WD Switch Connector
    G01710472Courtesy of GENERAL MOTORS CORP.
  3. Install the center console (1).
  4. Install the center console attaching screws (2).
    Fig 3: Installing Center Console
    G01710473Courtesy of GENERAL MOTORS CORP.
  5. Install the parking brake lever bezel (1).
  6. Install the parking brake lever bezel attaching screws (2).

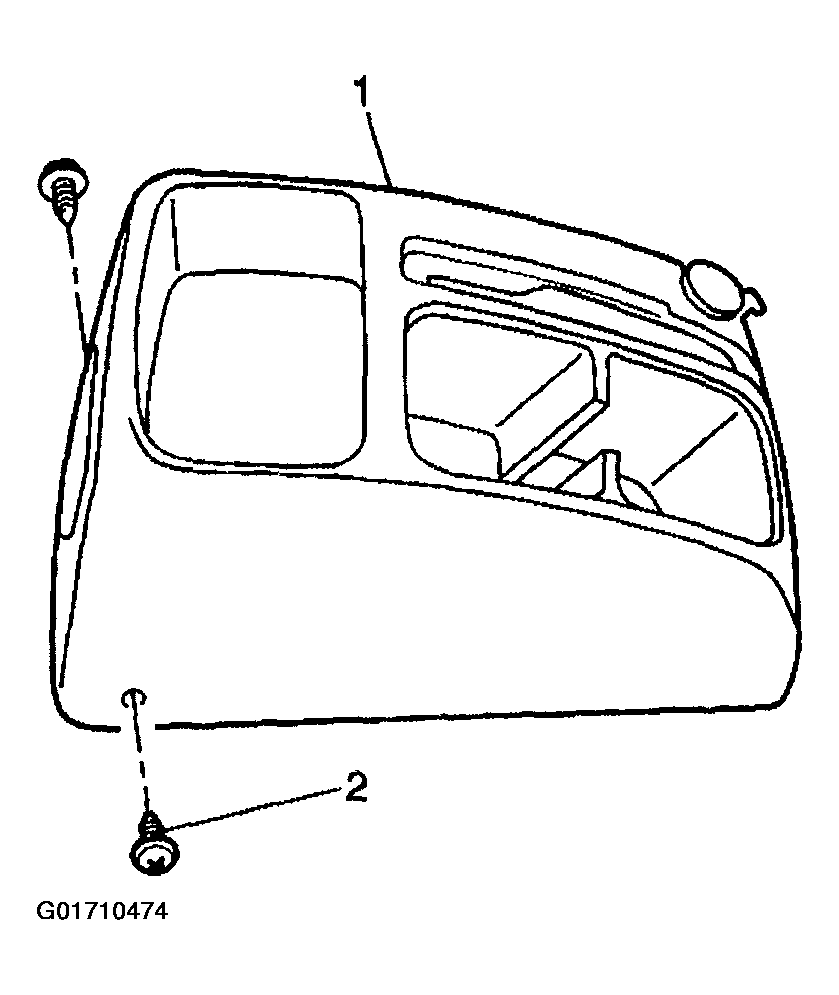

    7. Fig 4: Installing Parking Brake Lever Bezel Attaching Screws
    G01710474Courtesy of GENERAL MOTORS CORP.
  7. Perform Diagnostic System Check - ABS .
