ABS Component Views

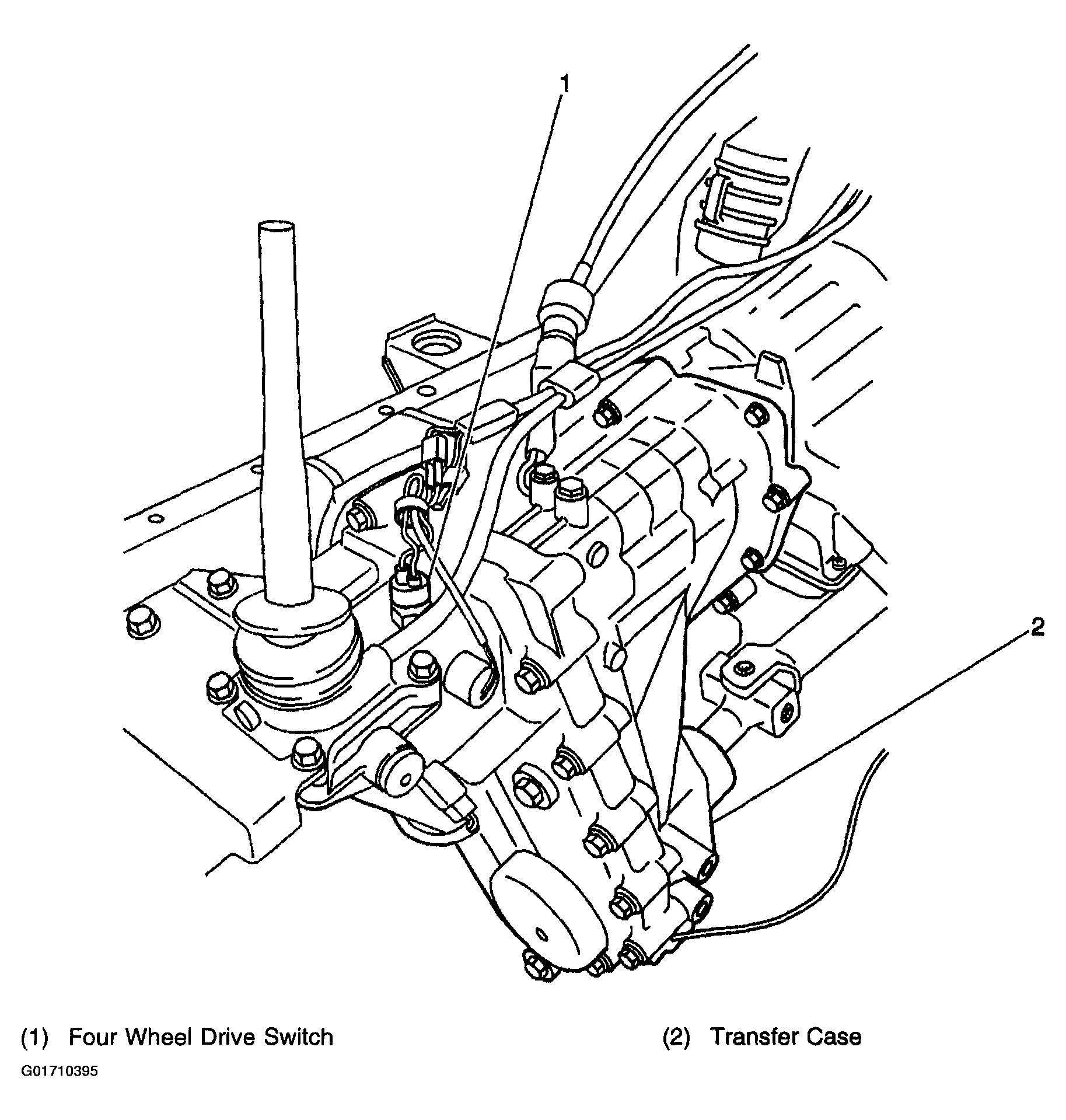

Fig 1: Locating 4WD Switch
G01710395Courtesy of GENERAL MOTORS CORP.

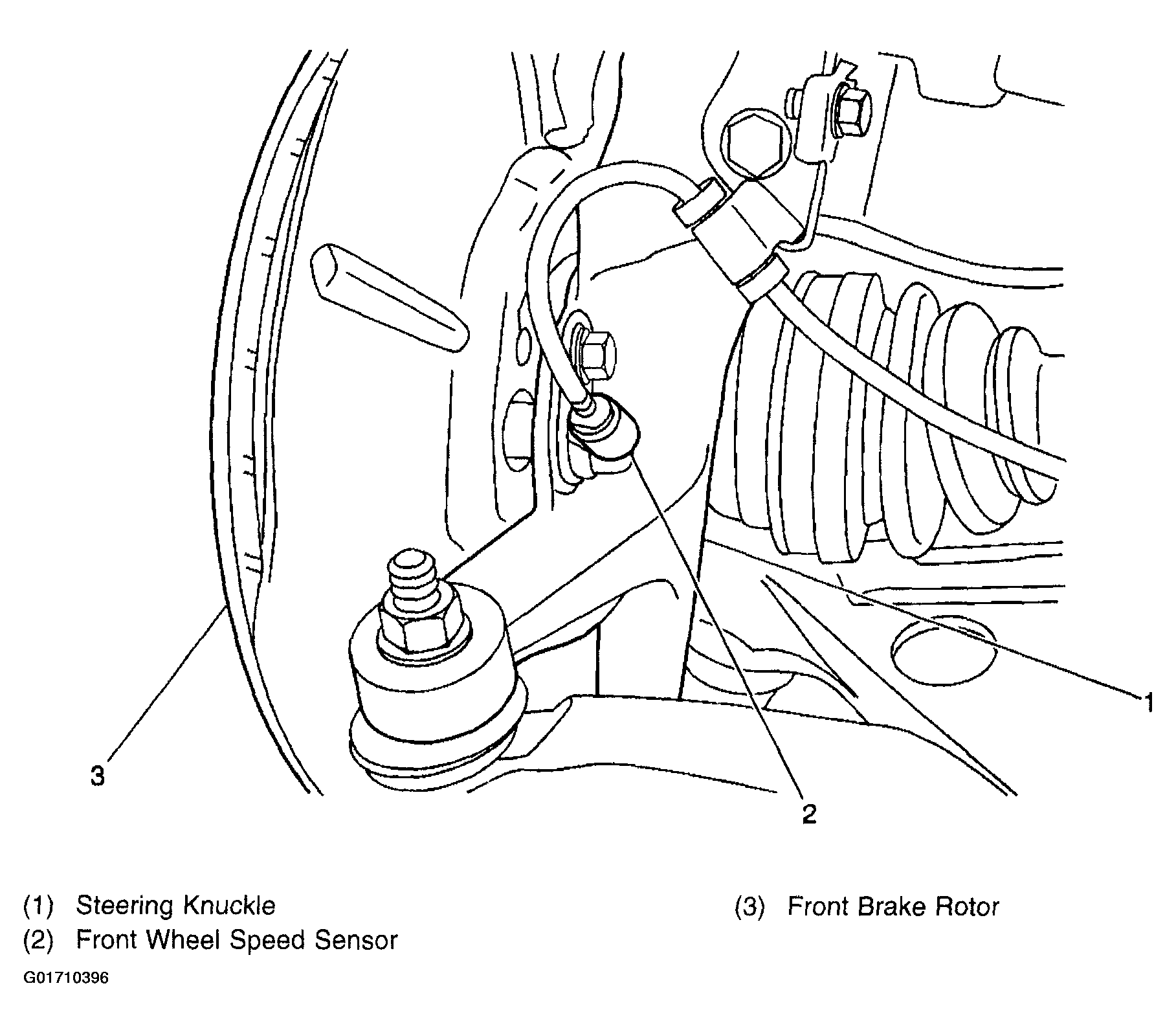

Fig 2: Locating Front Wheel Speed Sensor
G01710396Courtesy of GENERAL MOTORS CORP.

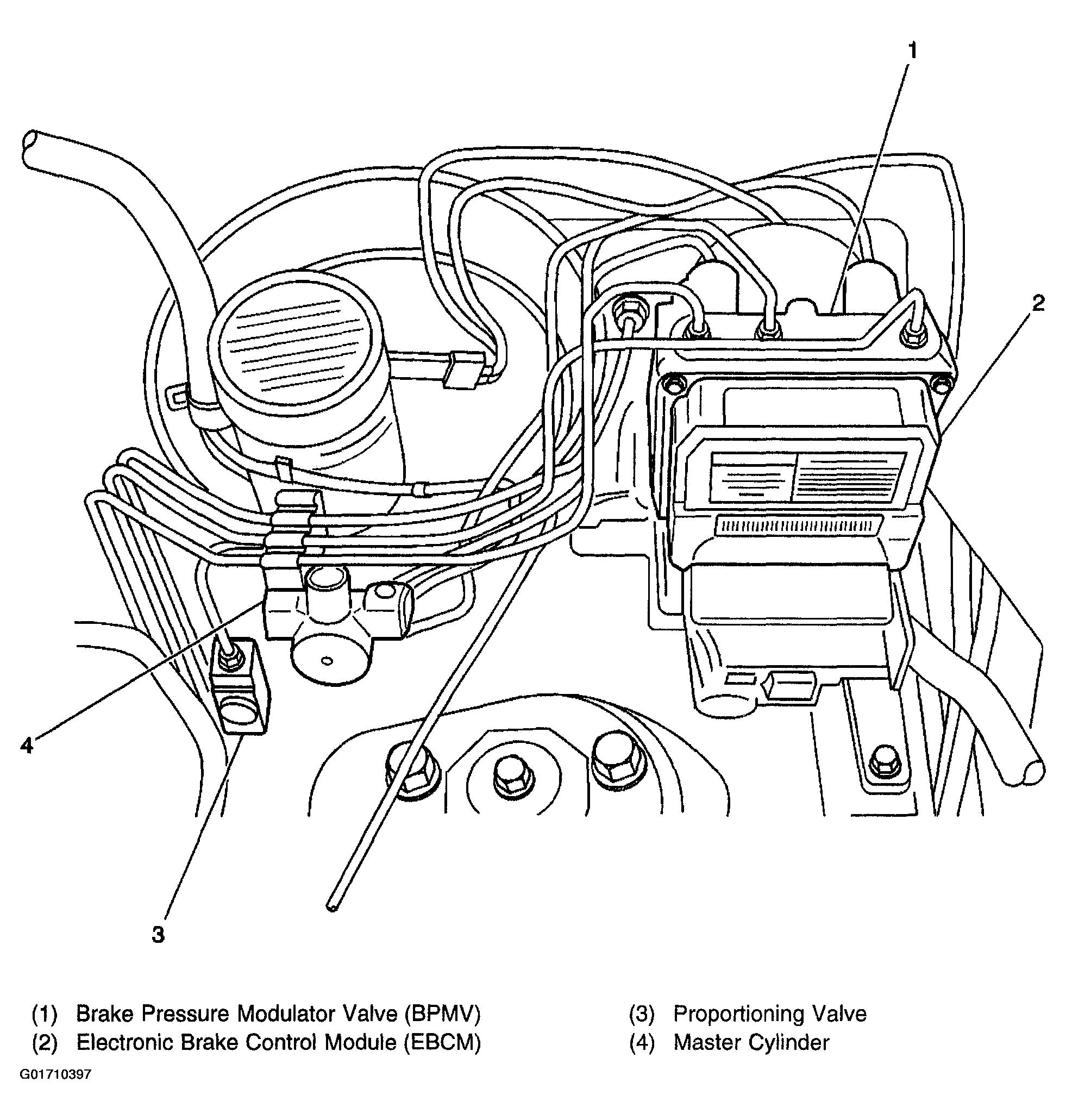

Fig 3: Locating EBCM/BPMV Assembly
G01710397Courtesy of GENERAL MOTORS CORP.

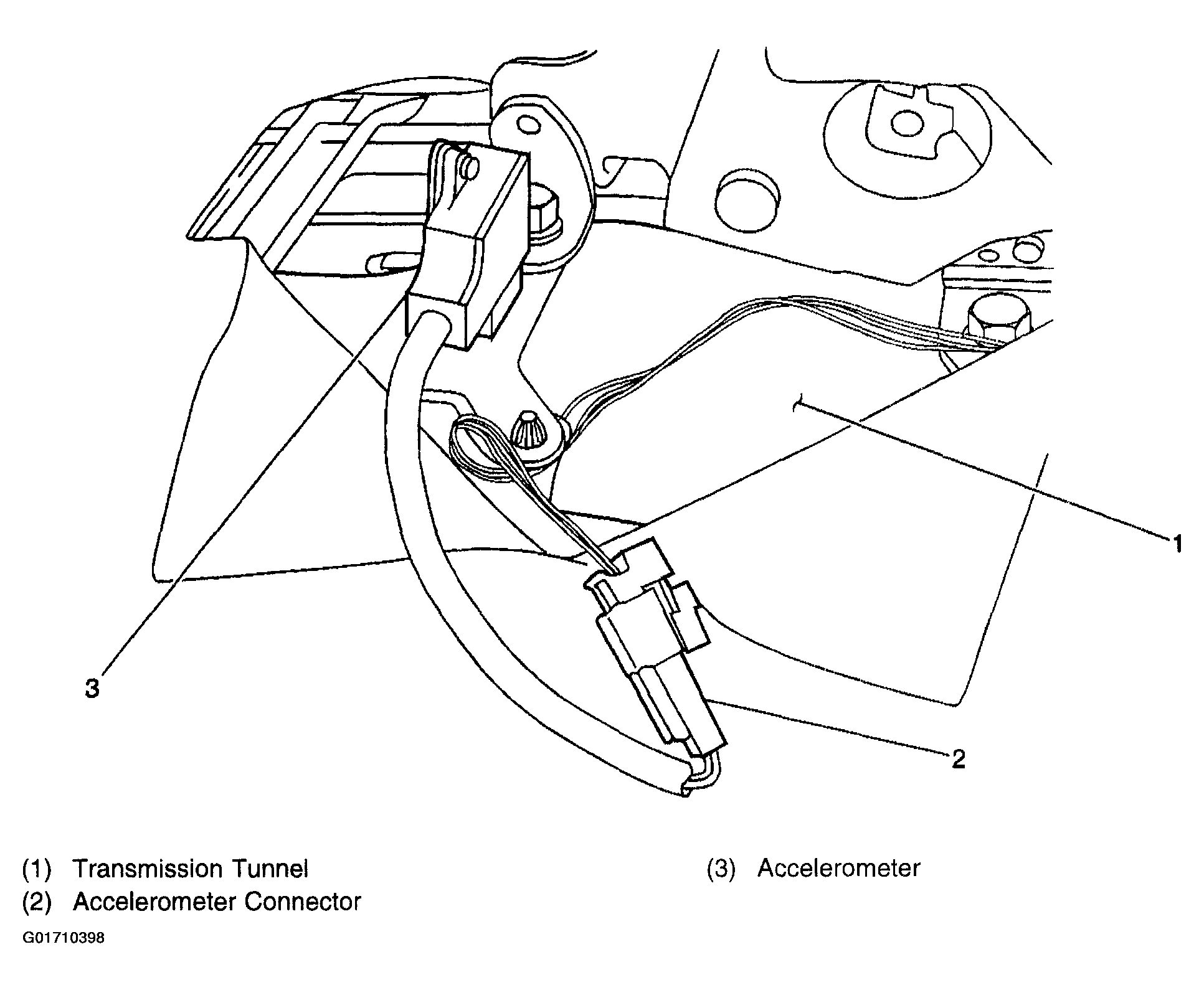

Fig 4: Locating Accelerometer
G01710398Courtesy of GENERAL MOTORS CORP.

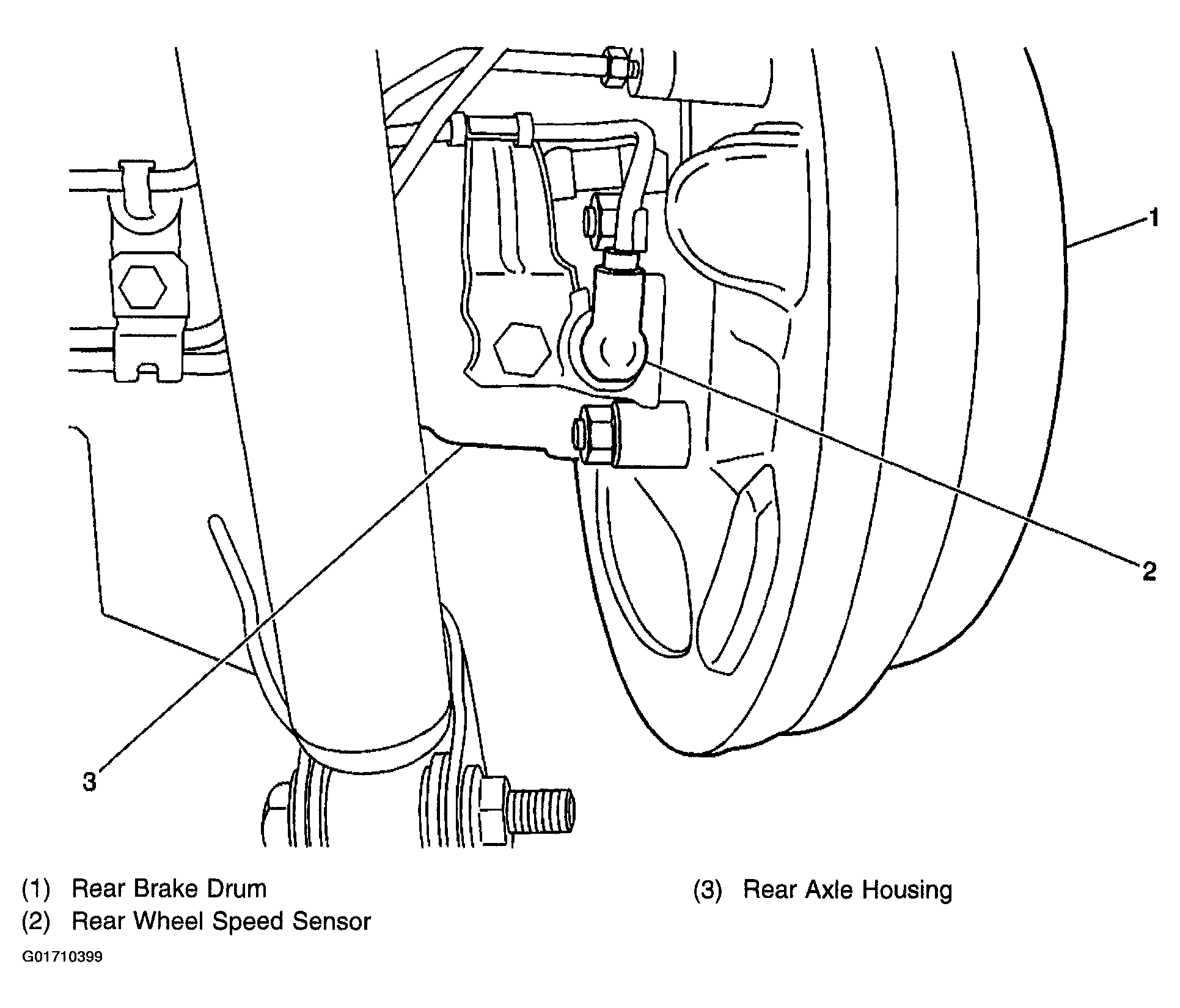

Fig 5: Locating Rear Wheel Speed Sensor
G01710399Courtesy of GENERAL MOTORS CORP.
