Removal Procedure

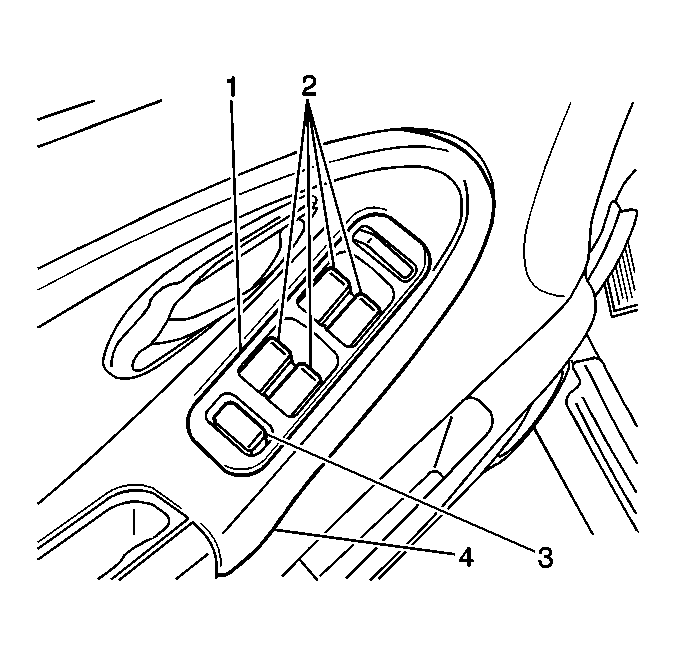

    Fig 1: Removing Master Window Switch
    GM474183Courtesy of GENERAL MOTORS CORP.
  1. Gently pry the left front side master window switch (1) from the front side door trim panel (4).
  2. Disconnect the window switch and the door lock electrical connectors.
  3. Remove the window switch (1) from the vehicle.
