Installation Procedure

Important:  Perform the following procedure before installing the new tie rod ends:

1. Remove all traces of the oil, grease, or other contaminants.
2. Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.
3. Apply red LOCTITE Threadlocker, GM P/N 12345493 (Canadian P/N 10953488) to the threads of the inner tie rod.
4. Install the inner tie rod to the relay rod. Using the J 34028  (2) tighten the tie rod to 100 N.m (74 ft lbs).

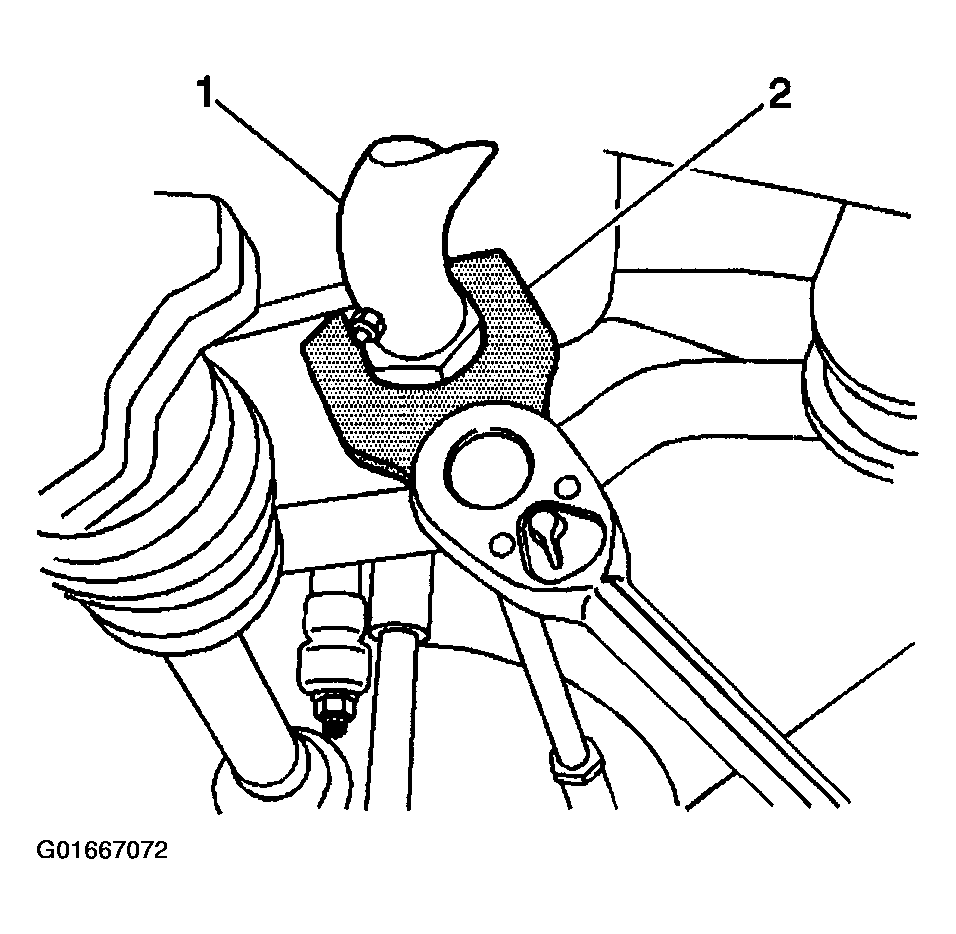

   Fig 1: Tightening Tie Rod Using J 34028

   Courtesy of GENERAL MOTORS CORP.
5. Install the outer tie rod end. Refer to Tie Rod Replacement .
6. Install the engine protection shield, if equipped.
7. Lower the vehicle.
8. Verify the wheel alignment. Refer to SPECIFICATIONS .
