Park/Neutral Position Switch Connector End View C2

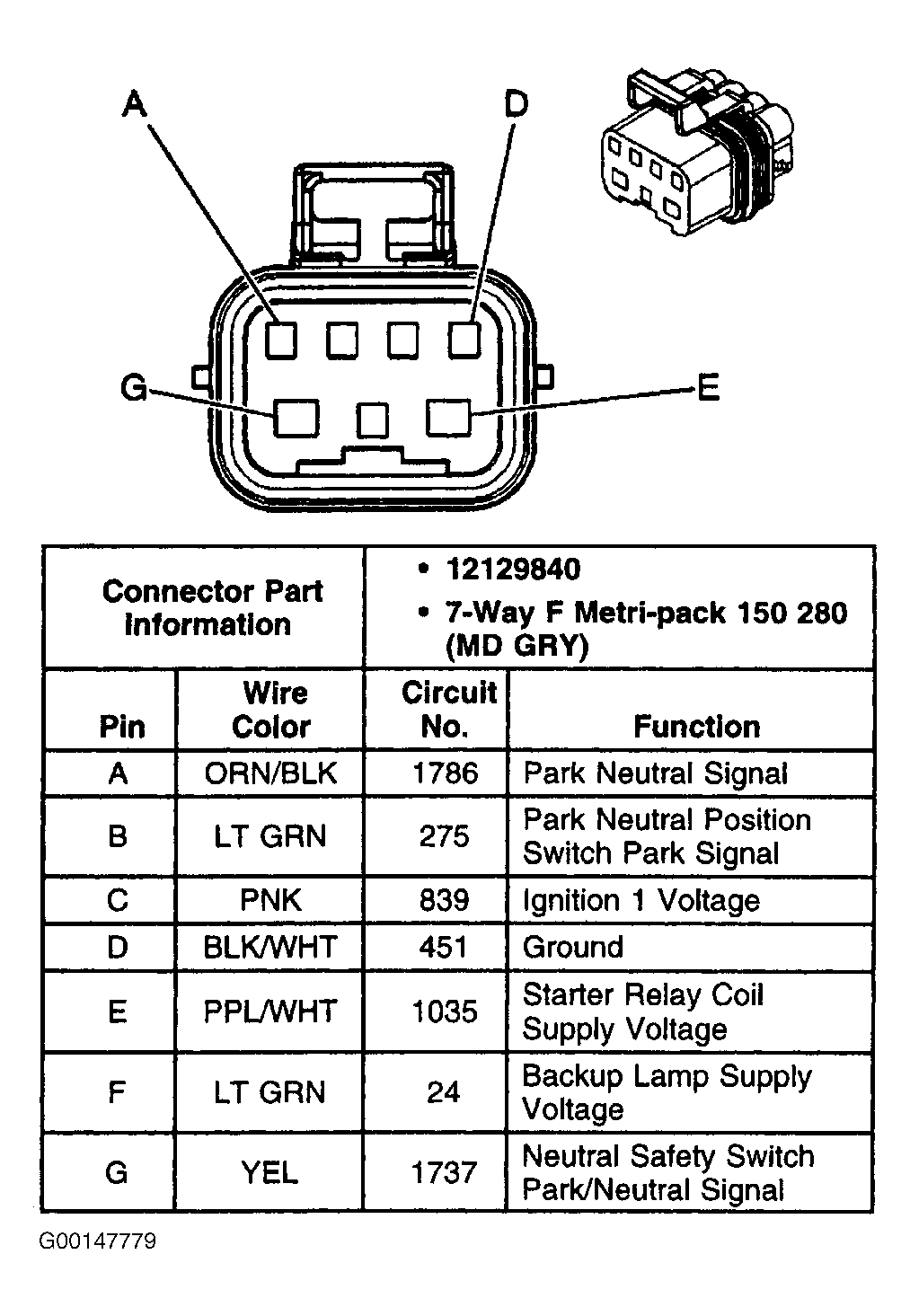

Fig 1: Park/Neutral Position Switch Connector End View C2
G00147779Courtesy of GENERAL MOTORS CORP.


Fig 1: Park/Neutral Position Switch Connector End View C2
G00148196Courtesy of GENERAL MOTORS CORP.
