MAF/IAT Sensor Connector End View
MAF/IAT Sensor Connector End View

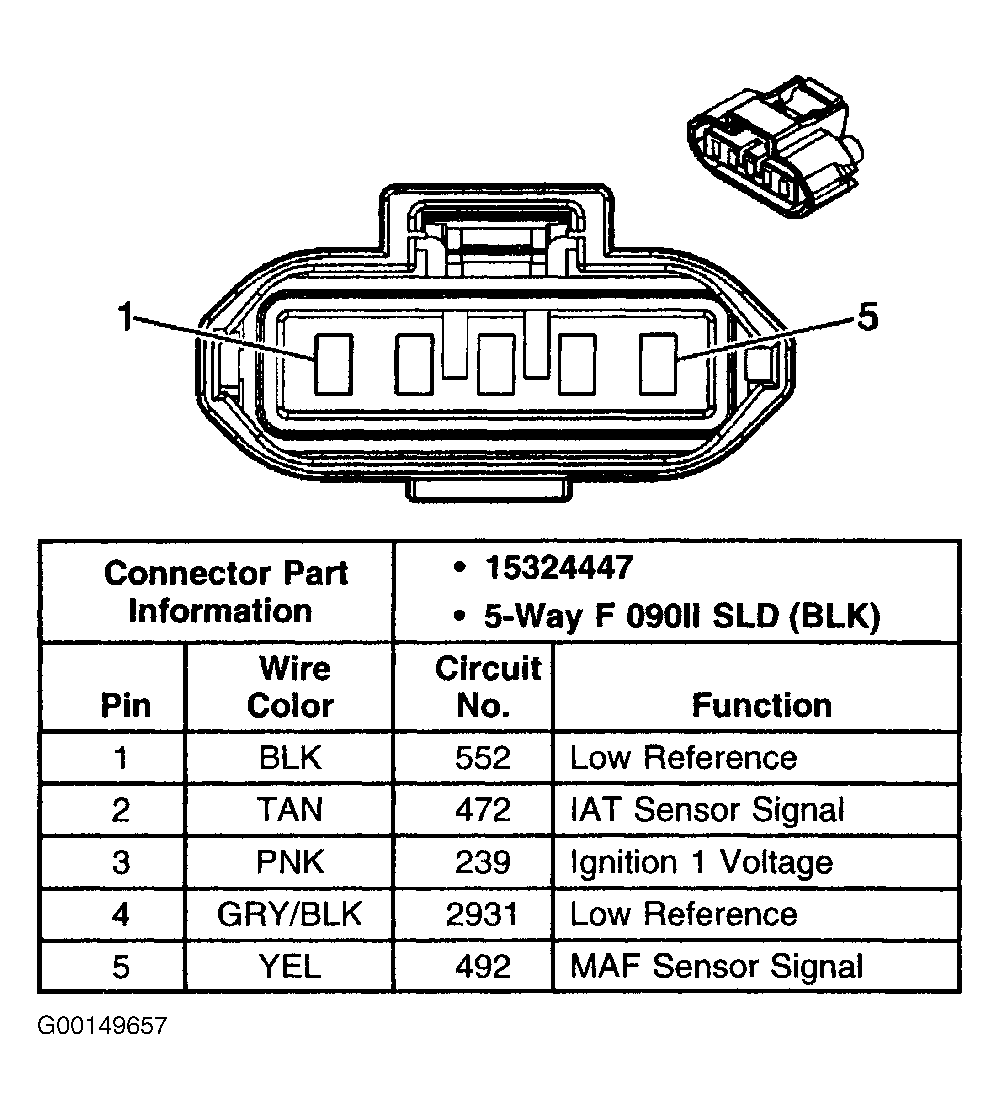

Fig 1: MAF/IAT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: MAF/IAT Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
