Instrument Panel Cluster Connector End View

Fig 1: Instrument Panel Cluster Connector End View
G00148168Courtesy of GENERAL MOTORS CORP.

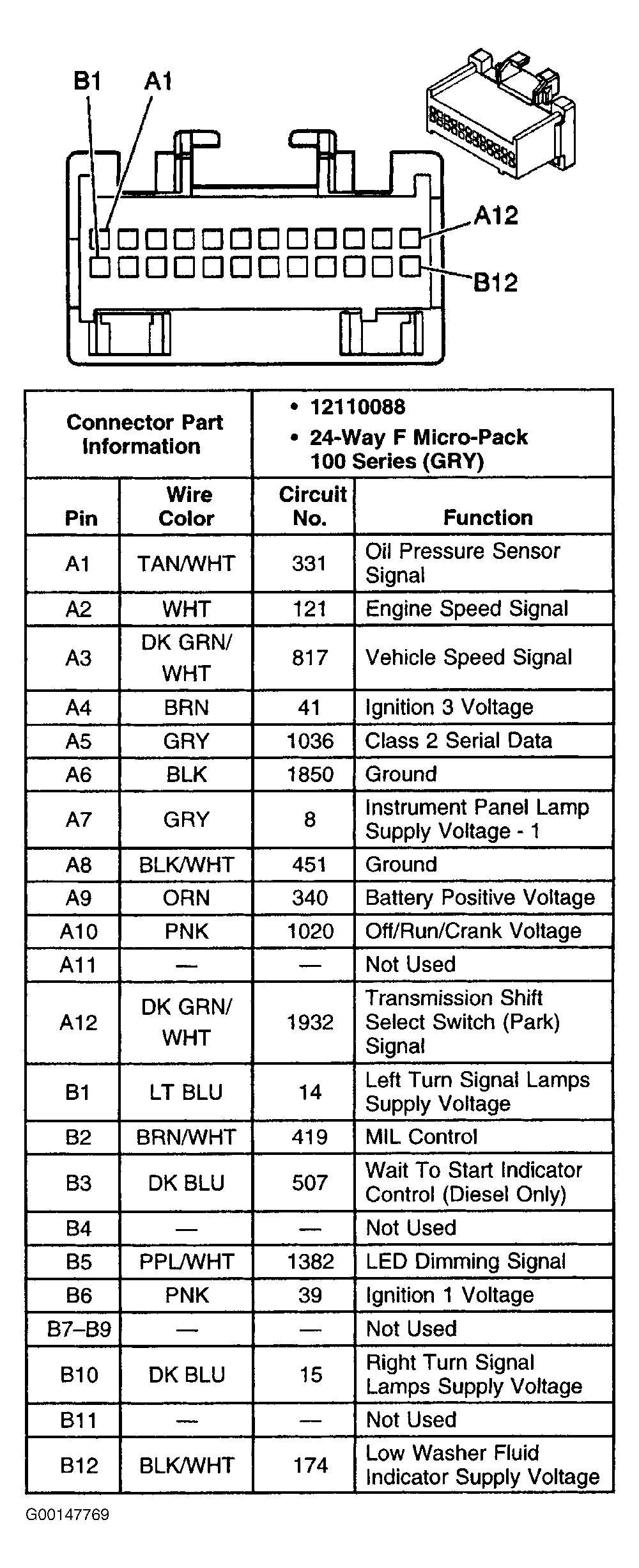

Fig 1: Instrument Panel Cluster Connector End View
G00147769Courtesy of GENERAL MOTORS CORP.
