In-Line Harness Connector End View C005 Terminals

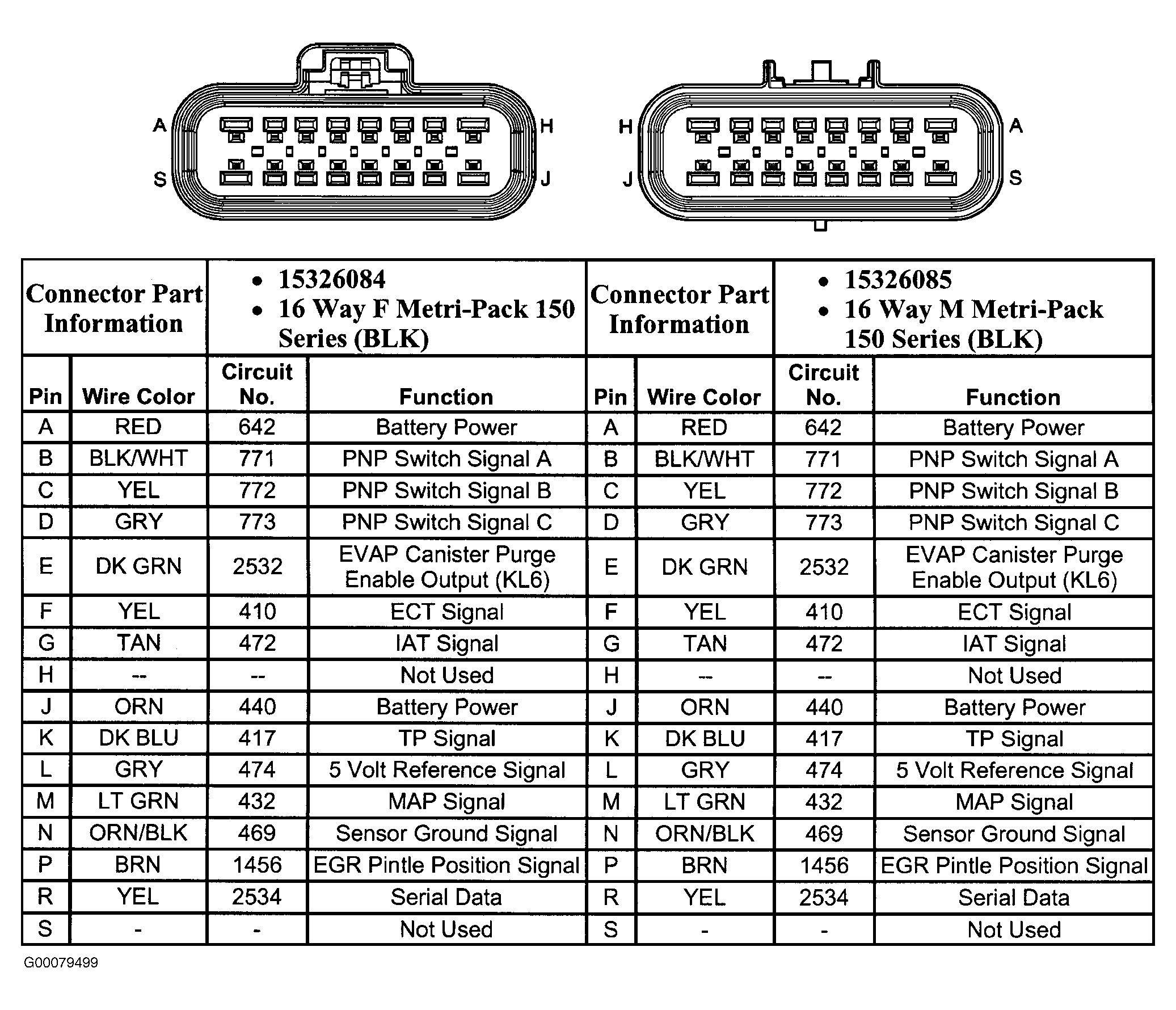

Fig 1: In-Line Harness Connector End View C005 Terminals

G00079499

Courtesy of GENERAL MOTORS CORP.
