IP Fuse Block (Left) Connector End View

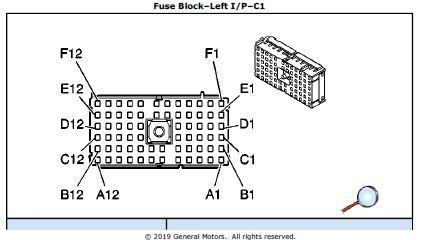

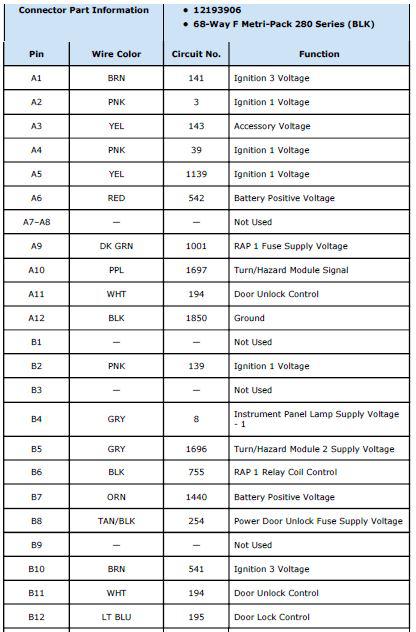

Fig 1: IP Fuse Block (Left) Connector End View (1 of 7)

Courtesy of GENERAL MOTORS CORP.

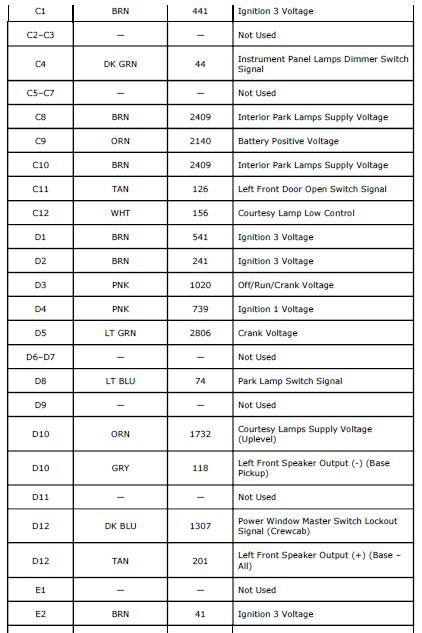

Fig 2: IP Fuse Block (Left) Connector End View (2 of 7)

Courtesy of GENERAL MOTORS CORP.

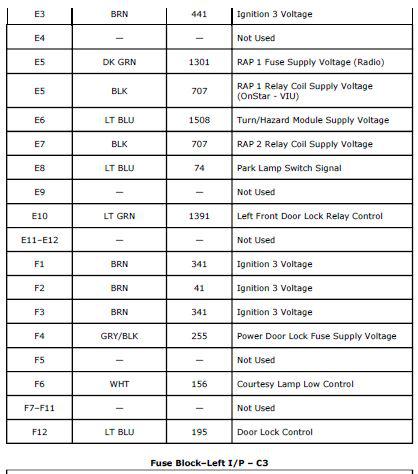

Fig 3: IP Fuse Block (Left) Connector End View (3 of 7)

Courtesy of GENERAL MOTORS CORP.

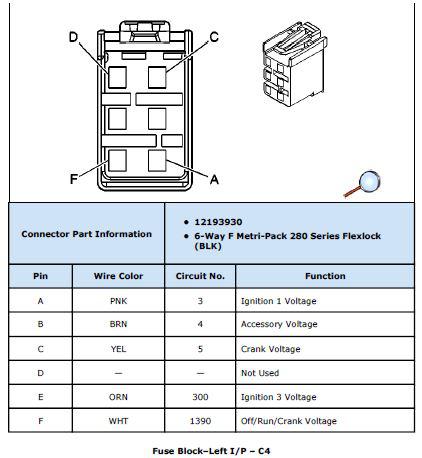

Fig 4: IP Fuse Block (Left) Connector End View (4 of 7)

Courtesy of GENERAL MOTORS CORP.

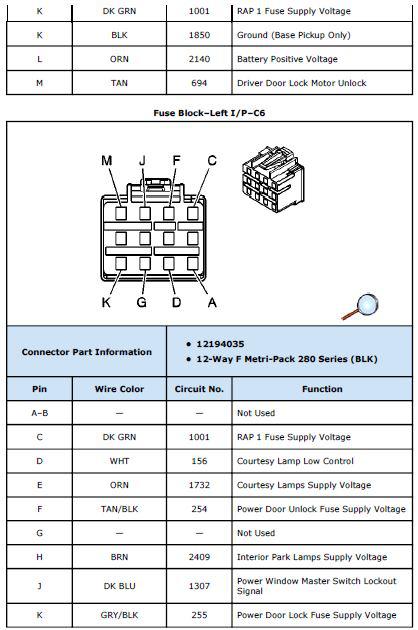

Fig 5: IP Fuse Block (Left) Connector End View (5 of 7)

Courtesy of GENERAL MOTORS CORP.

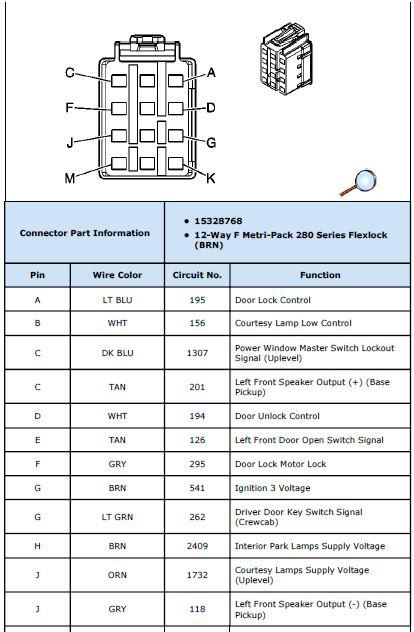

Fig 6: IP Fuse Block (Left) Connector End View (6 of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: IP Fuse Block (Left) Connector End View (7 of 7)

Courtesy of GENERAL MOTORS CORP.
