CKP Sensor Connector End View

Fig 1: CKP Sensor Connector End View
G00113357Courtesy of GENERAL MOTORS CORP.


Fig 1: CKP Sensor Connector End View
G00113357Courtesy of GENERAL MOTORS CORP.


Fig 1: CKP Sensor Connector End View
G00148143Courtesy of GENERAL MOTORS CORP.

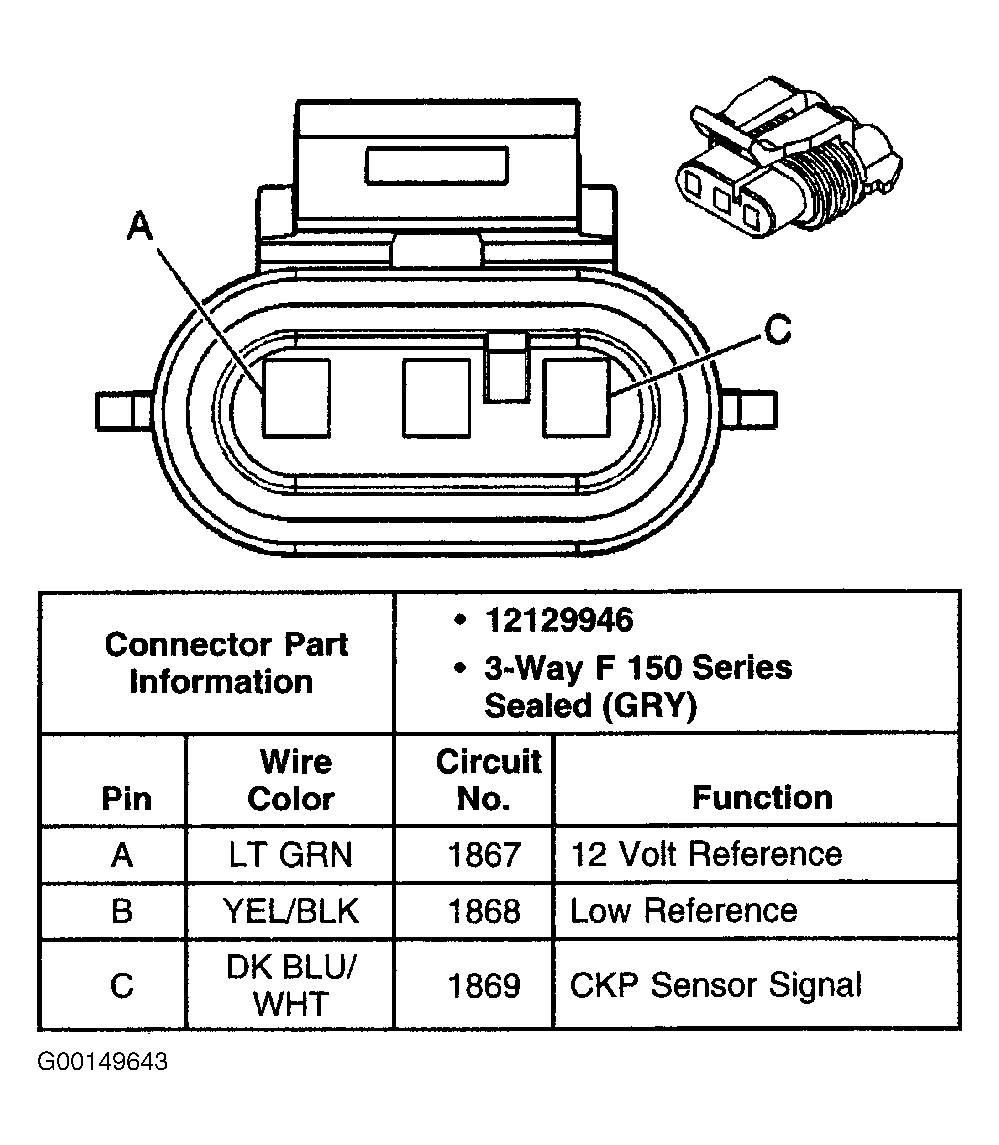

Fig 1: CKP Sensor Connector End View
G00149643Courtesy of GENERAL MOTORS CORP.

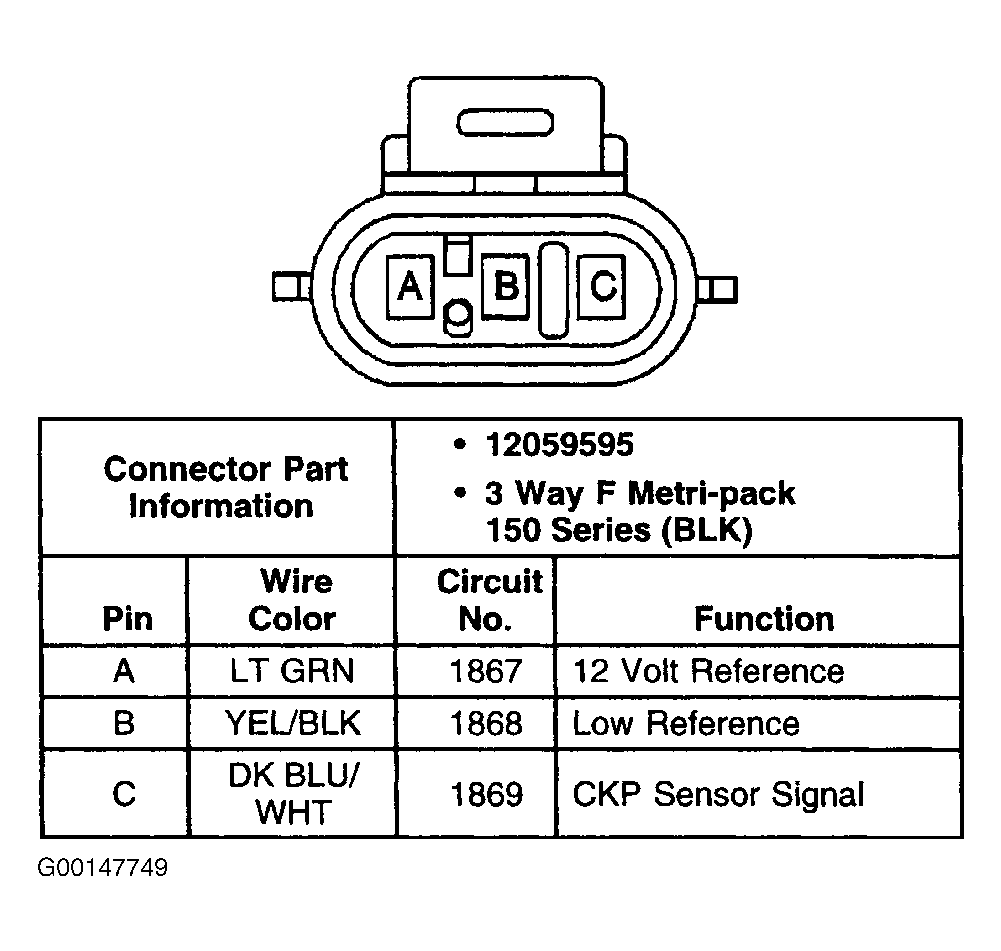

Fig 1: CKP Sensor Connector End View
G00147749Courtesy of GENERAL MOTORS CORP.
