Removal Procedure

  1. Use the tilt lever to tilt the column to the UP position.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Remove the tilt spring (1) in the following manner:
    1. 3.1. Pry the tilt spring up until a bulge occurs and most of the tilt spring tension is removed.
    2. 3.2. Secure the tilt spring with locking pliers and continue prying until the tilt spring disengages from the post of the steering column support assembly (3).

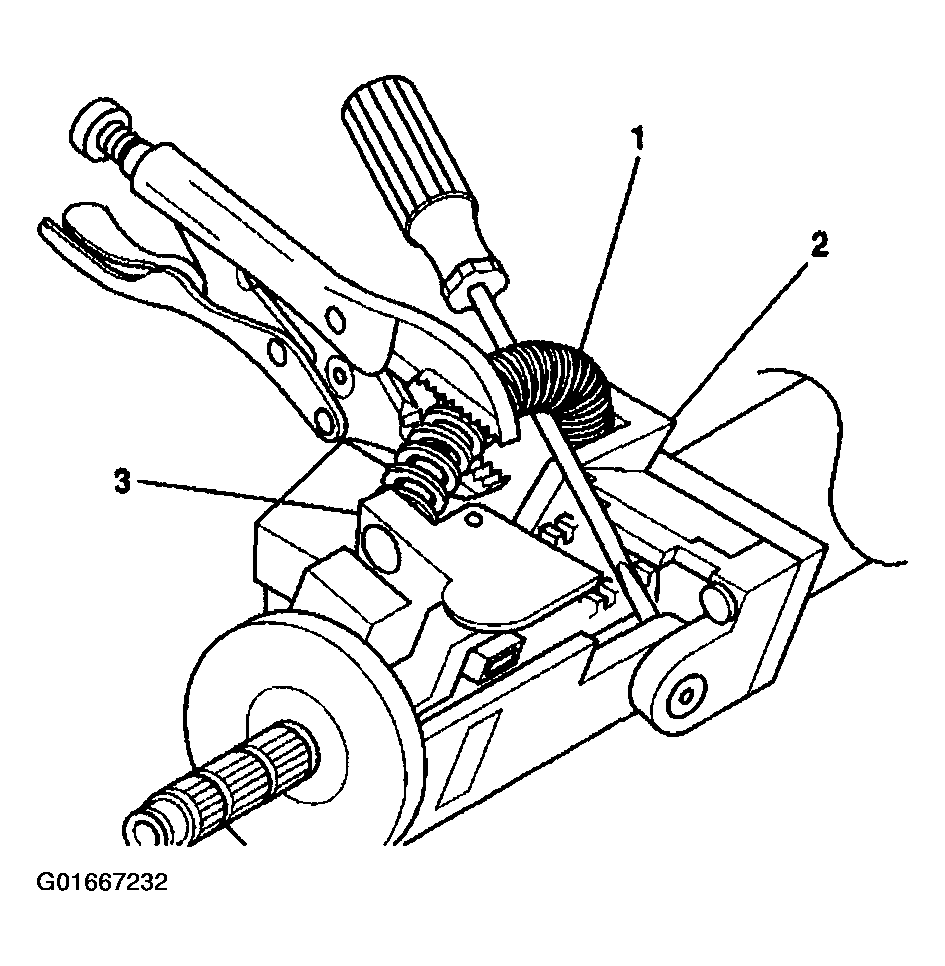

      Fig 1: Tilt Spring
      G01667232Courtesy of GENERAL MOTORS CORP.
  4. Remove the spring guide (1) from the tilt spring (2).

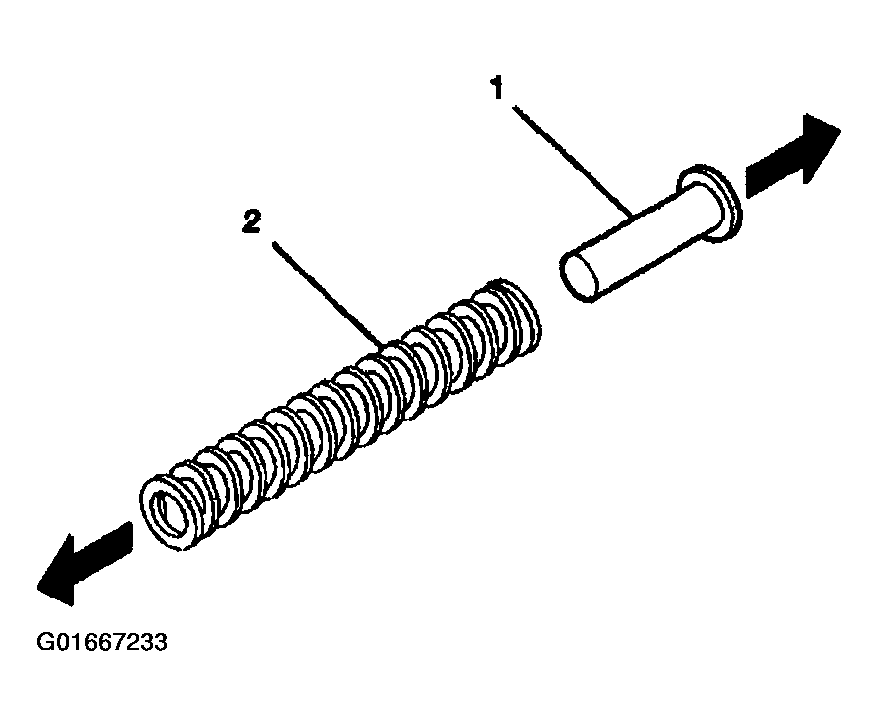

    Fig 2: Tilt Spring Guide
    G01667233Courtesy of GENERAL MOTORS CORP.
