Steering Column Disassembled View (Column Shift Standard)

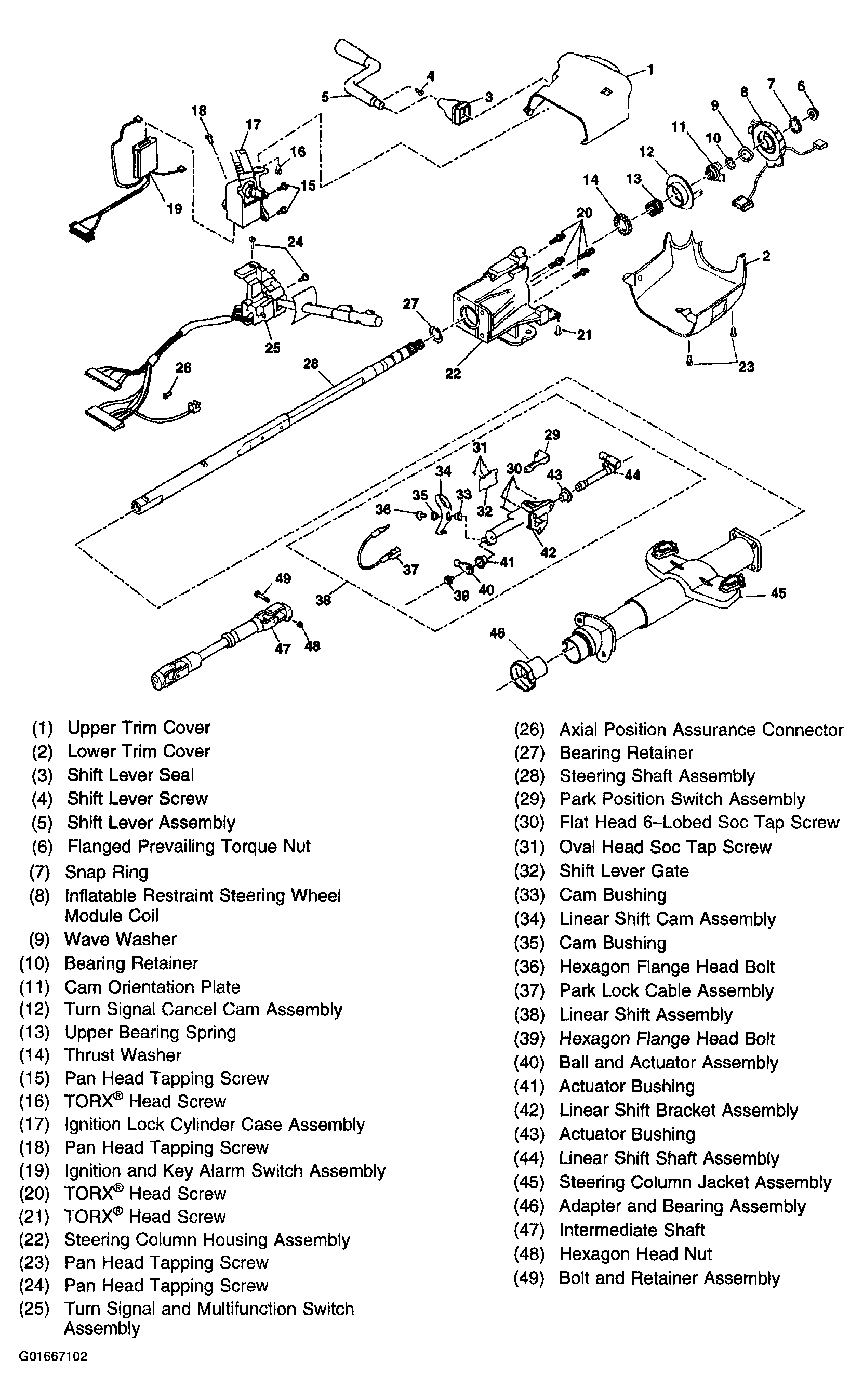

Fig 1: Exploded View Of Standard Steering Column (Column Shift Standard)
G01667102Courtesy of GENERAL MOTORS CORP.
