Steering Column Disassembled View (Column Shift Sphere Joint)
Steering Column Disassembled View (Column Shift Sphere Joint)

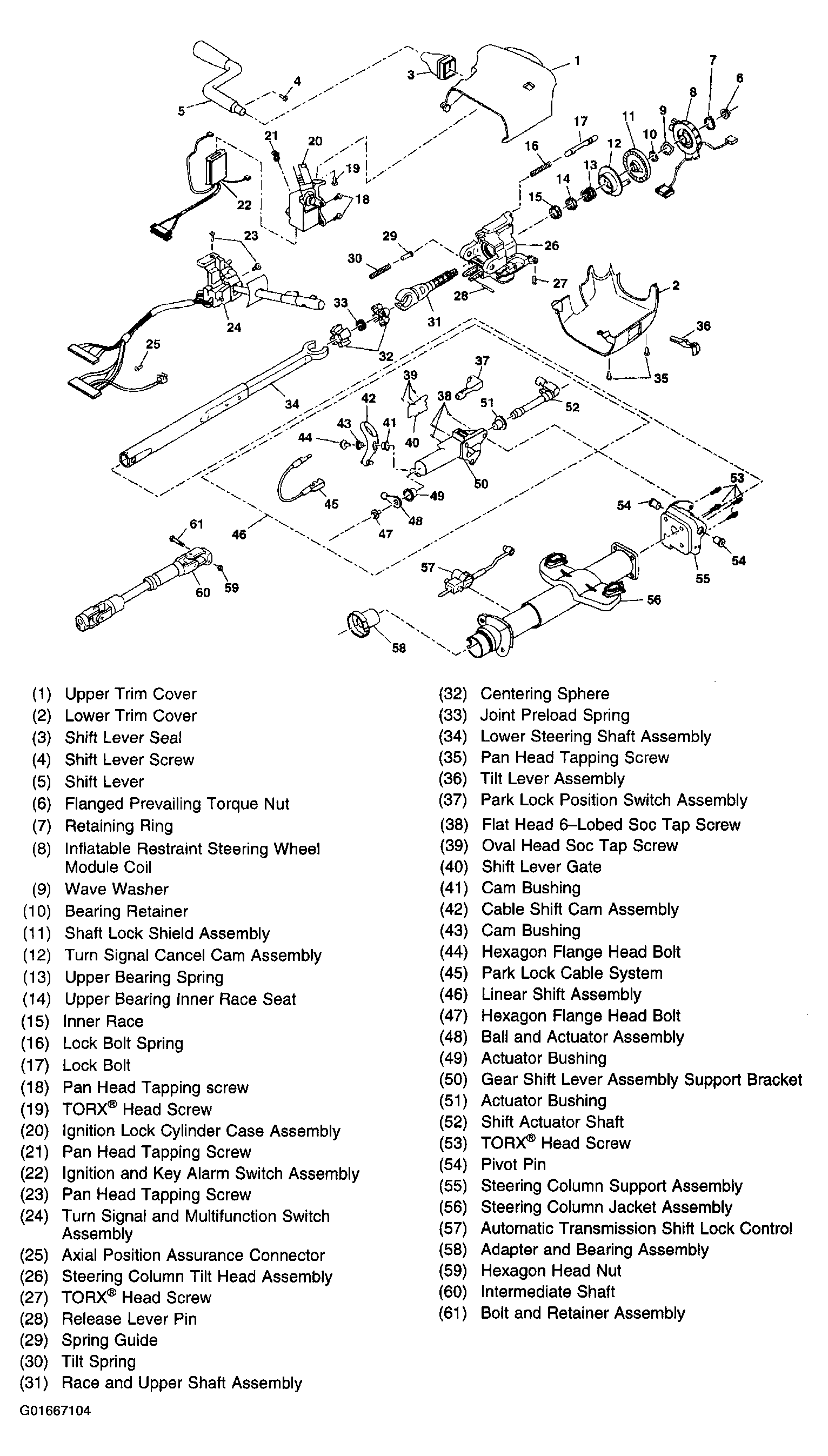

Fig 1: Exploded View Of Tilt Steering Column (Column Shift Sphere Joint)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
