Rear Toe Adjustment

  1. Loosen the jam nut on the tie rod (1).
  2. Rotate the inner tie rod to the required toe specification setting. Refer to Wheel Alignment Specifications .

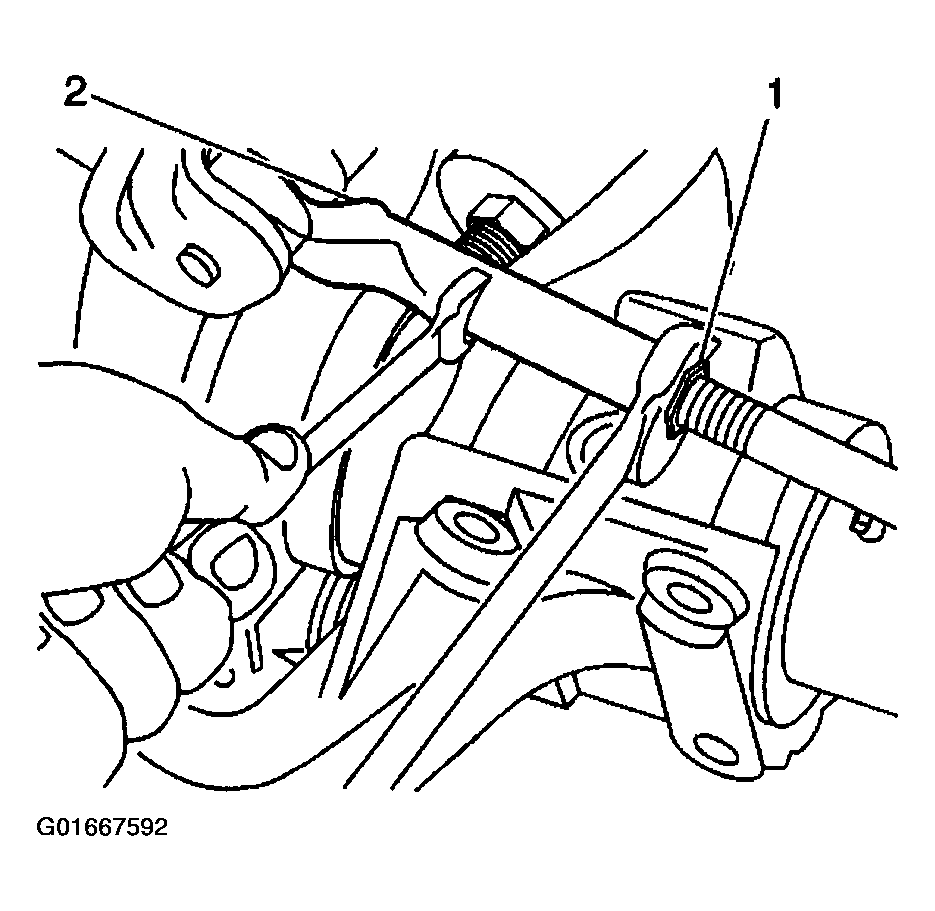

    3. Fig 1: Adjusting Toe
    G01667592Courtesy of GENERAL MOTORS CORP.
  3. Tighten the jam nut on the tie rod. Tighten the tie rod jam to 65 N.m (48 ft lbs).
  4. Check the toe setting after tightening.
  5. Re-adjust the toe setting if necessary.
