Front Axle Actuator Connector End View

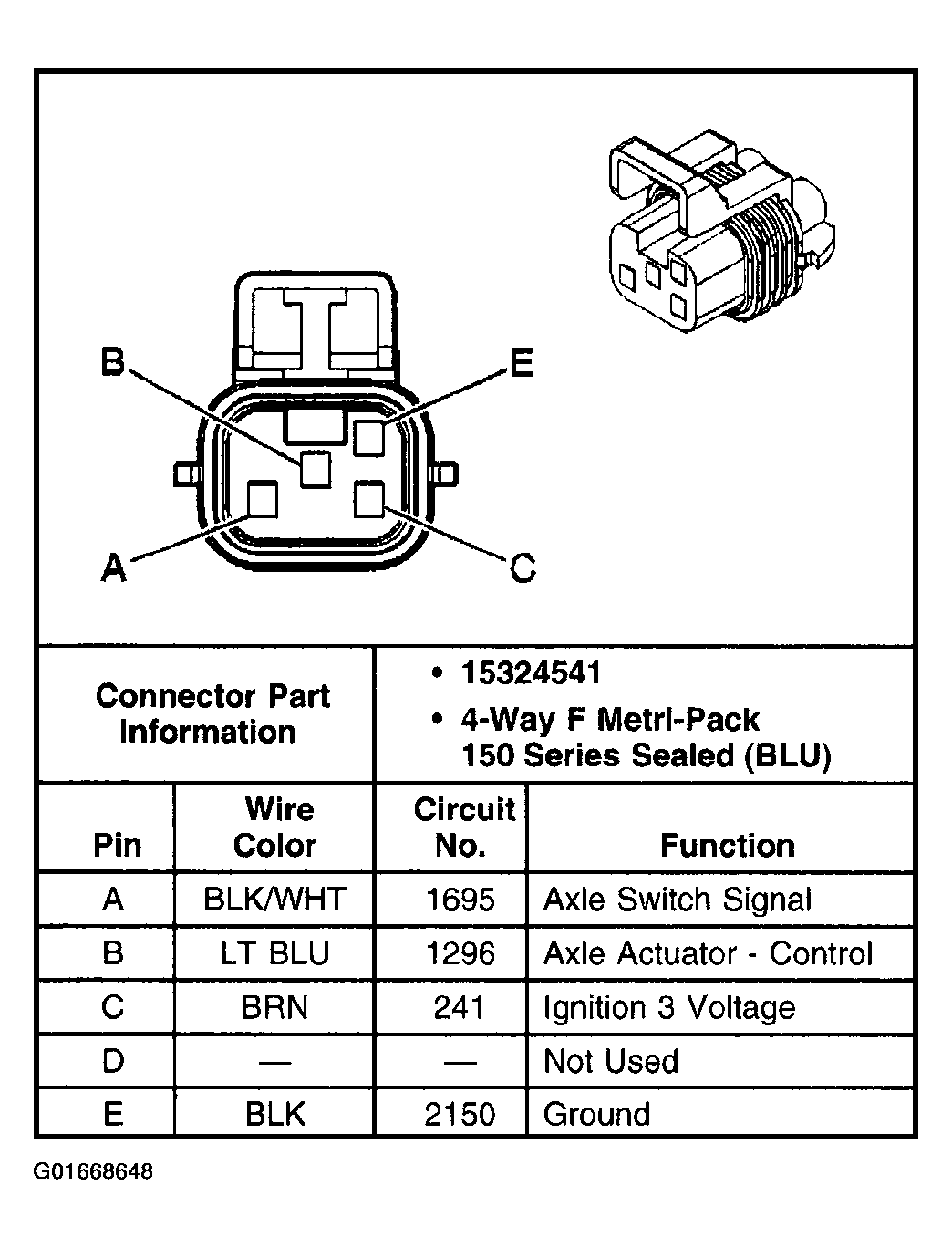

Fig 1: Front Axle Actuator Connector End View
G01668648Courtesy of GENERAL MOTORS CORP.

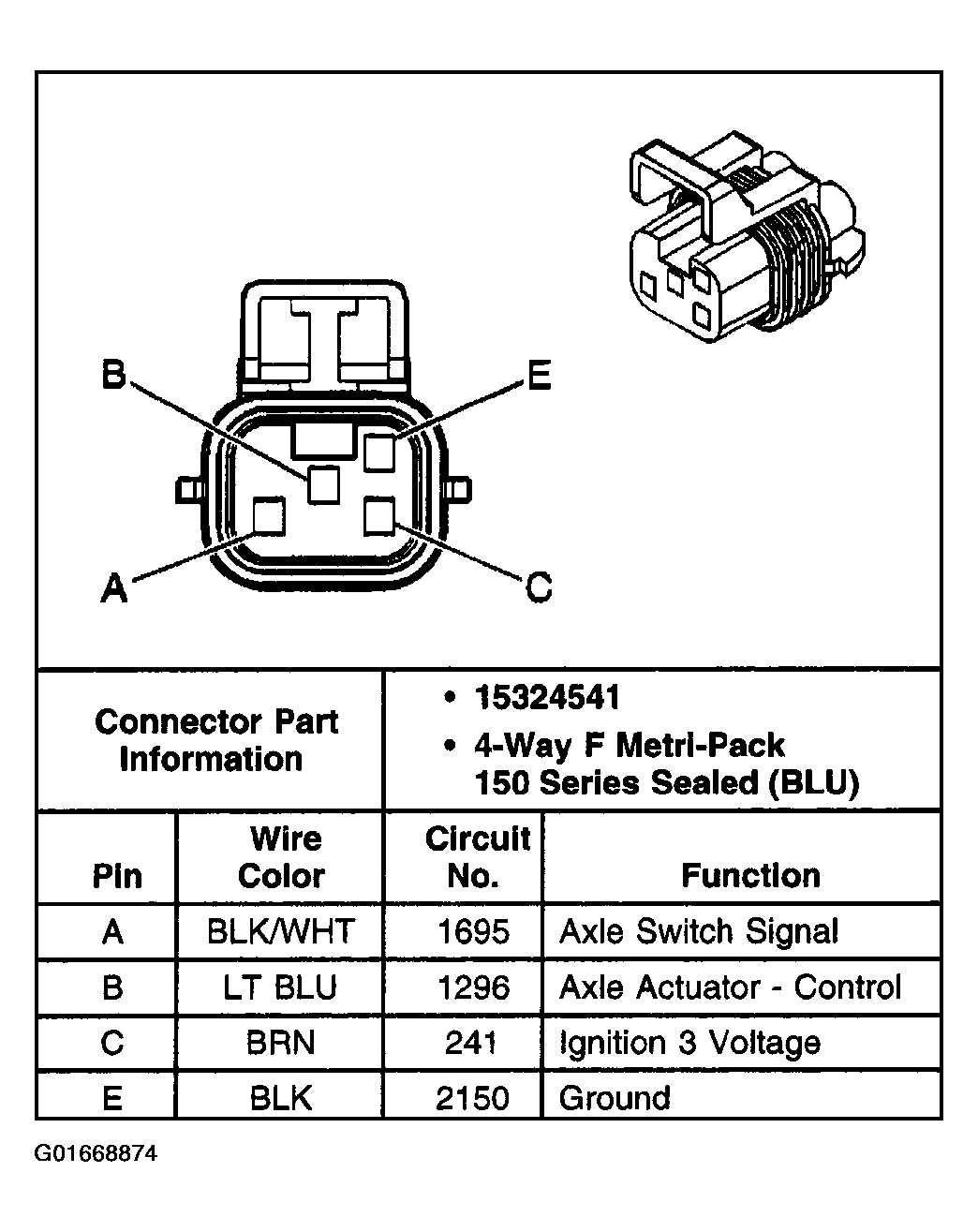

Fig 1: Front Axle Actuator Connector End View
G01668874Courtesy of GENERAL MOTORS CORP.

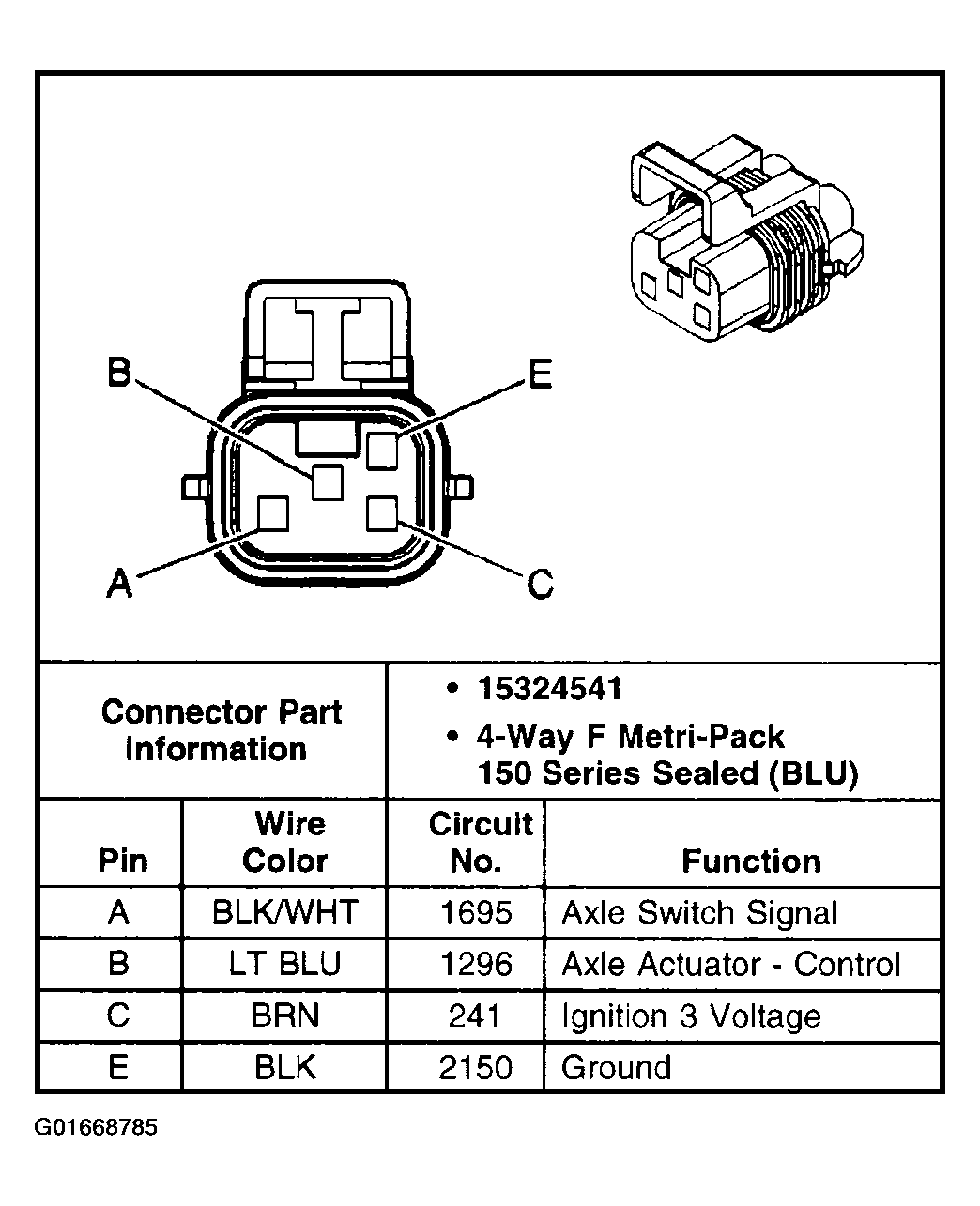

Fig 1: Front Axle Actuator Connector End View
G01668785Courtesy of GENERAL MOTORS CORP.
