Removal Procedure

  1. If necessary, remove the engine sight shield.

    Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L and 6.0L Engines) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L ENGINE w/RPOs Y91 and Z88) in Engine Mechanical - 4.8 L, 5.3 L, and 6.0 L.

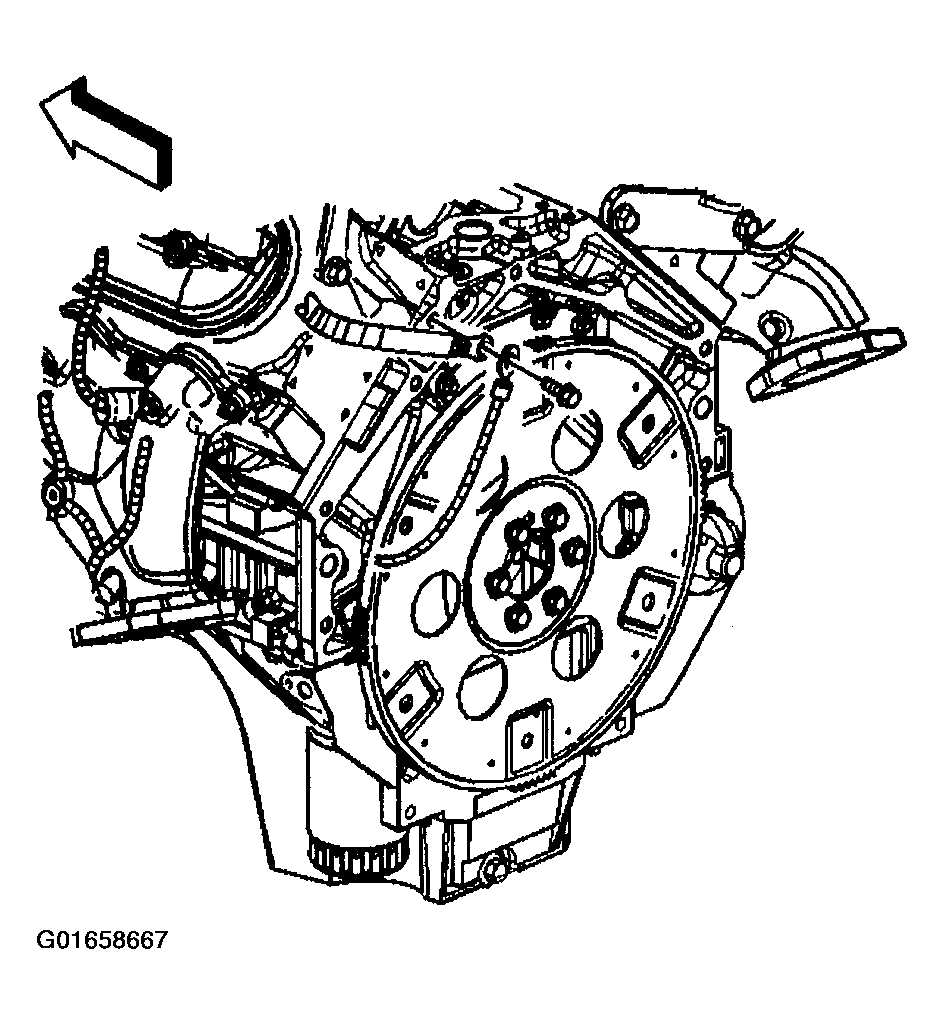

    2. Fig 1: Removing Engine Wiring Harness Ground Bolt
    G01658667Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine wiring harness ground bolt.
  3. Reposition the engine wiring harness ground and ground strap.
  4. Remove the ground strap nut from the stud at the front of dash.

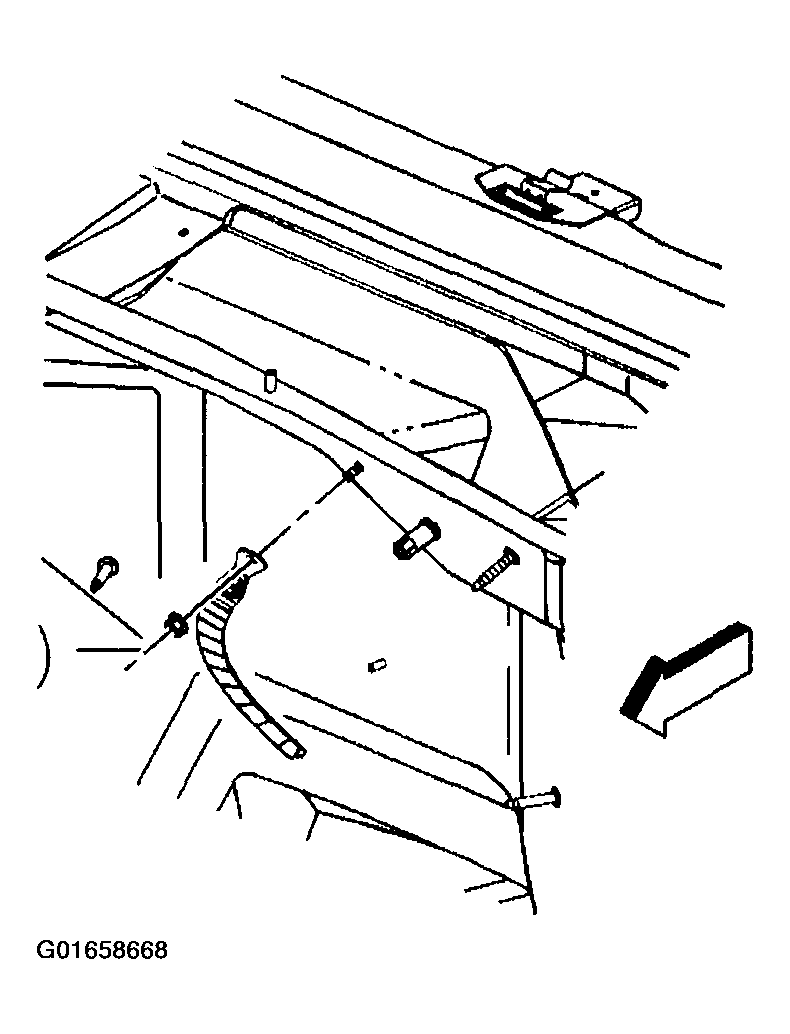

    5. Fig 2: Removing Ground Strap From Stud
    G01658668Courtesy of GENERAL MOTORS CORP.
  5. Remove the ground strap from the stud.
