Park/Neutral Position Switch Connector End View C1

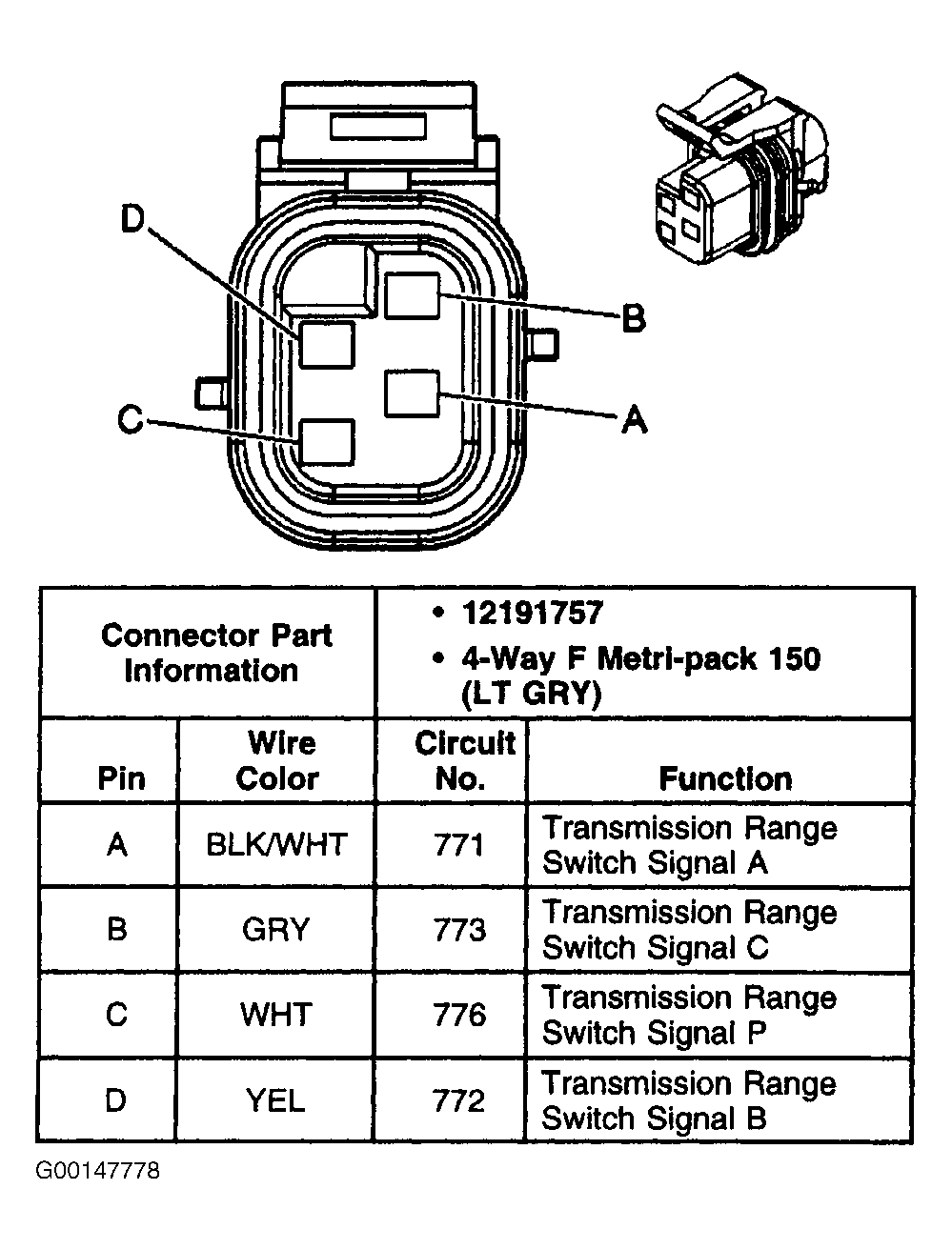

Fig 1: Park/Neutral Position Switch Connector End View C1
G00147778Courtesy of GENERAL MOTORS CORP.


Fig 1: Park/Neutral Position Switch Connector End View C1
G00148197Courtesy of GENERAL MOTORS CORP.
