Home >> Chevrolet >> 2002 >> Silverado 1500 HD, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Repair Instructions >> Ambient Air Temperature Sensor Replacement >> Removal Procedure

Removal Procedure

  1. Remove the radiator grille from the vehicle. Refer to GRILL REPLACEMENT (CHEVROLET) or GRILLE REPLACEMENT (GMC) .
  2. Remove the push pin retainer from the sensor mounted on the radiator support brace.

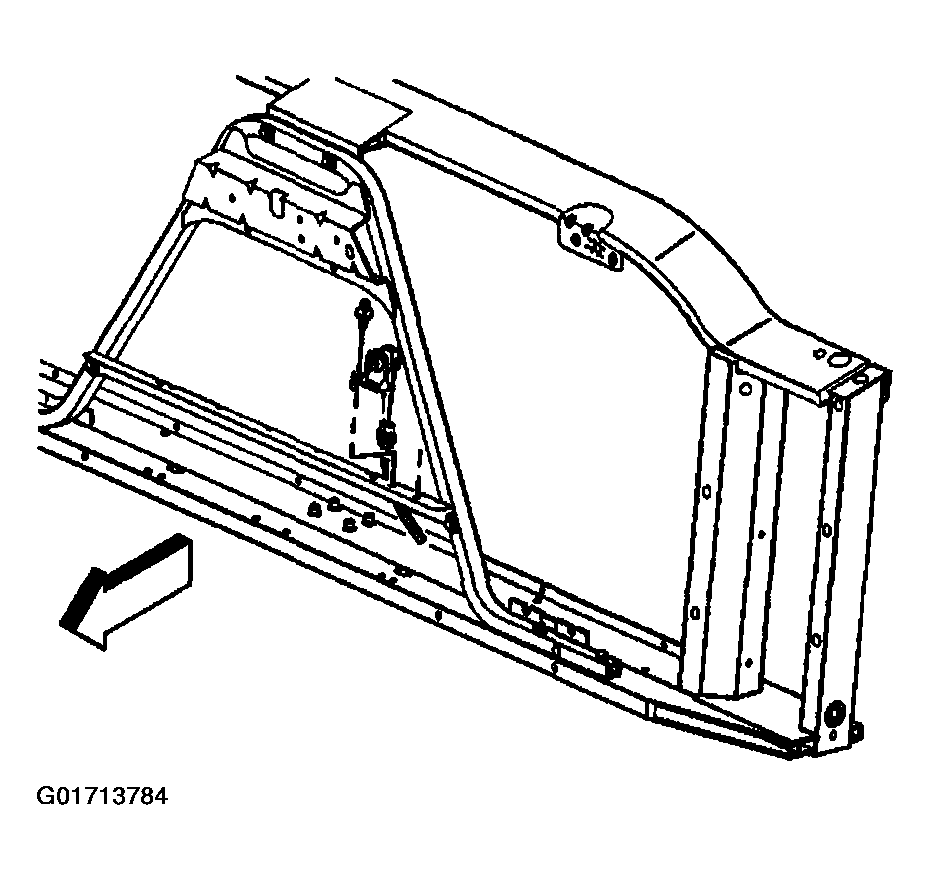

    3. Fig 1: Radiator Support Brace
    G01713784Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the sensor.
