Removal Procedure

  1. Disconnect the electrical connector from the power steering pressure (PSP) switch (1).
  2. Remove the PSP switch (1) from the steering gear inlet pipe fitting on the high pressure side of the pump (2).

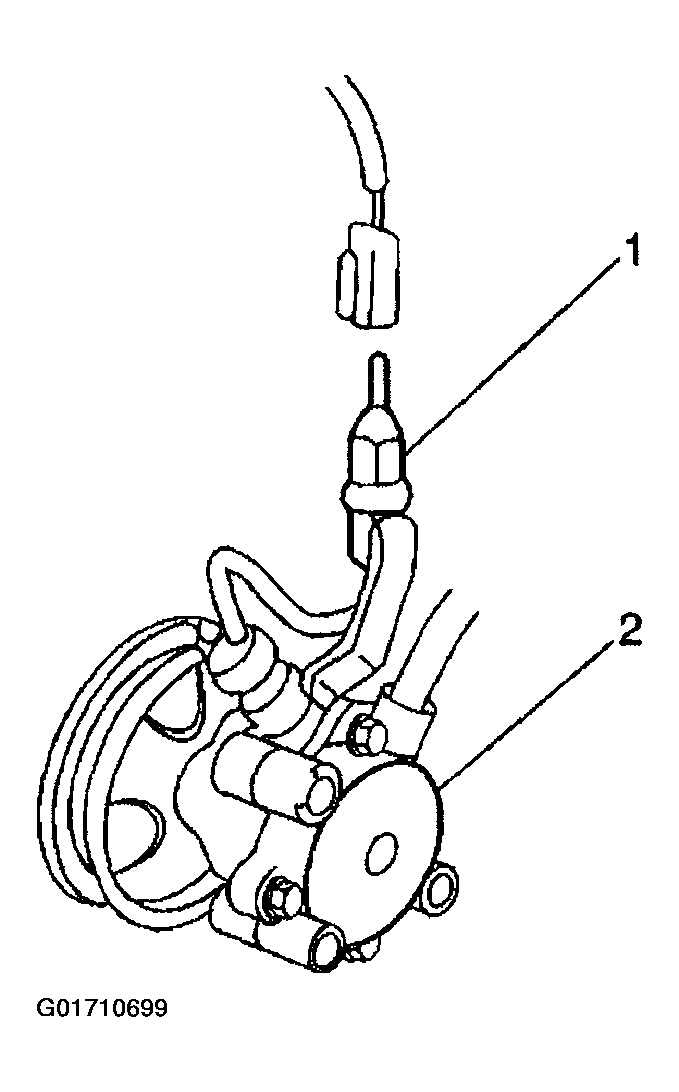

    Fig 1: Removing PSP Switch
    G01710699Courtesy of GENERAL MOTORS CORP.
