Removal Procedure

  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the rear seat belt retractor lower anchor bolt (1).

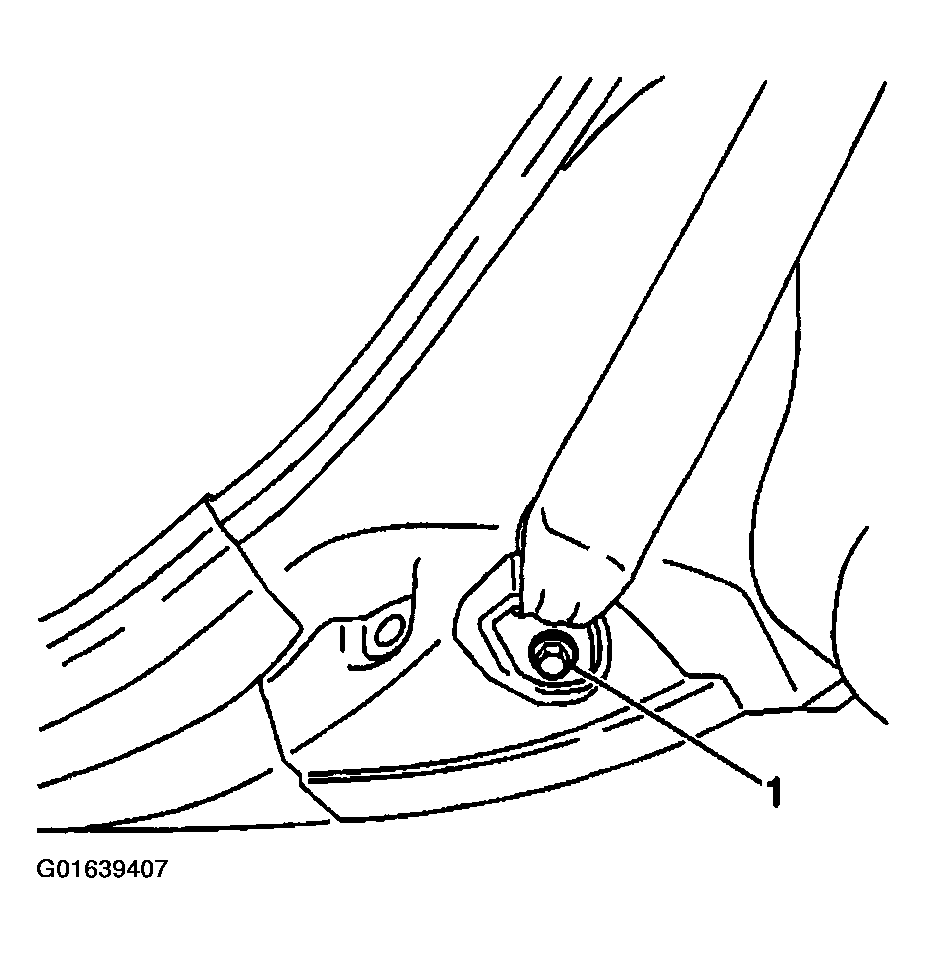

    Fig 1: Removing Rear Seat Belt Retractor Lower Anchor Bolt
    G01639407Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear window trim-panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW .
  4. Remove the following components from the vehicle:
    • The mounting bolt (1)
    • The rear seat belt retractor (2)
      Fig 2: Removing Mounting Bolt And Rear Seat Belt Retractor
      G01639408Courtesy of GENERAL MOTORS CORP.
