Instrument Cluster Assembly Connector End View C4

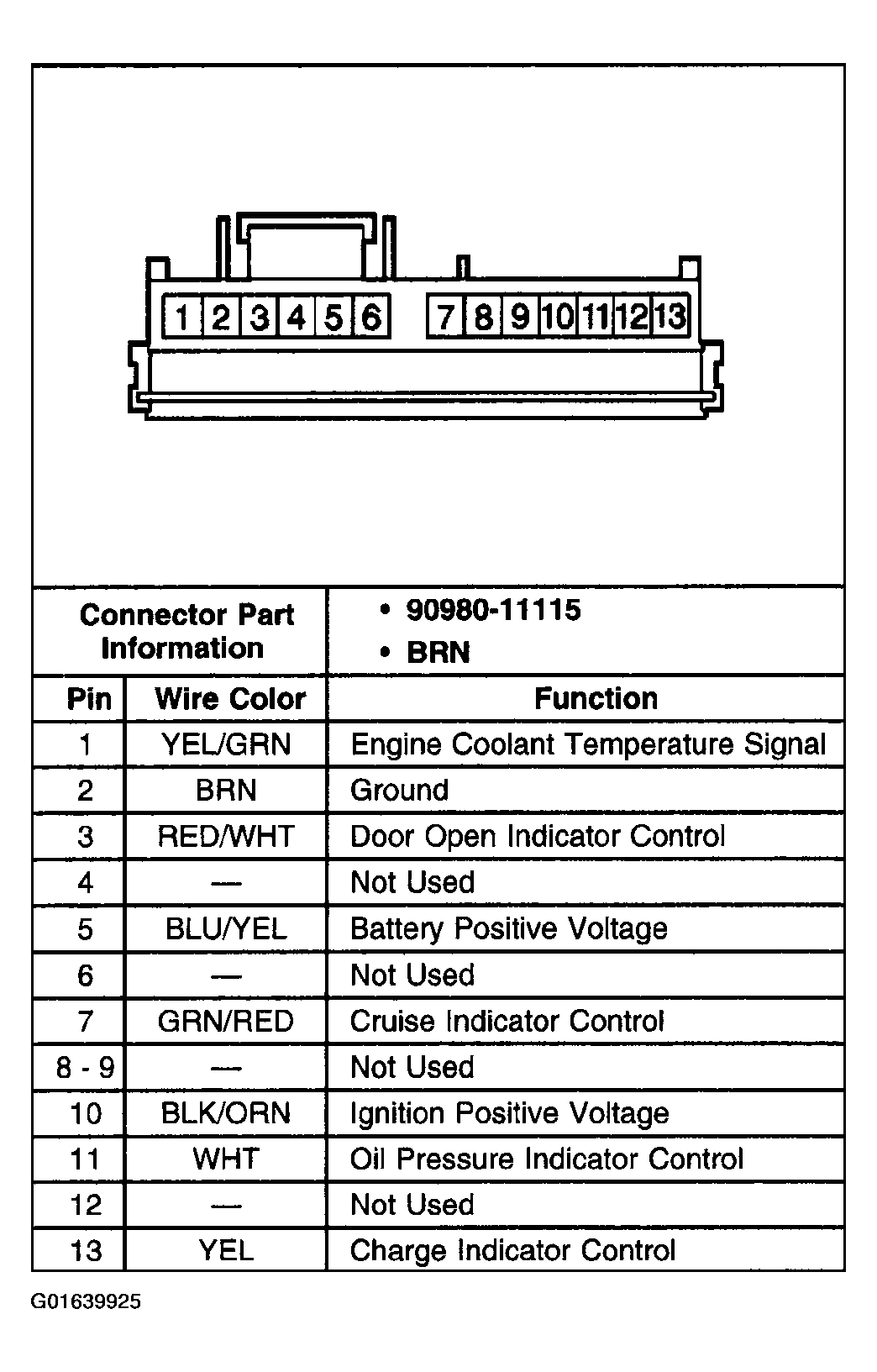

Fig 1: Instrument Cluster Assembly C4

G01639925

Courtesy of GENERAL MOTORS CORP.
